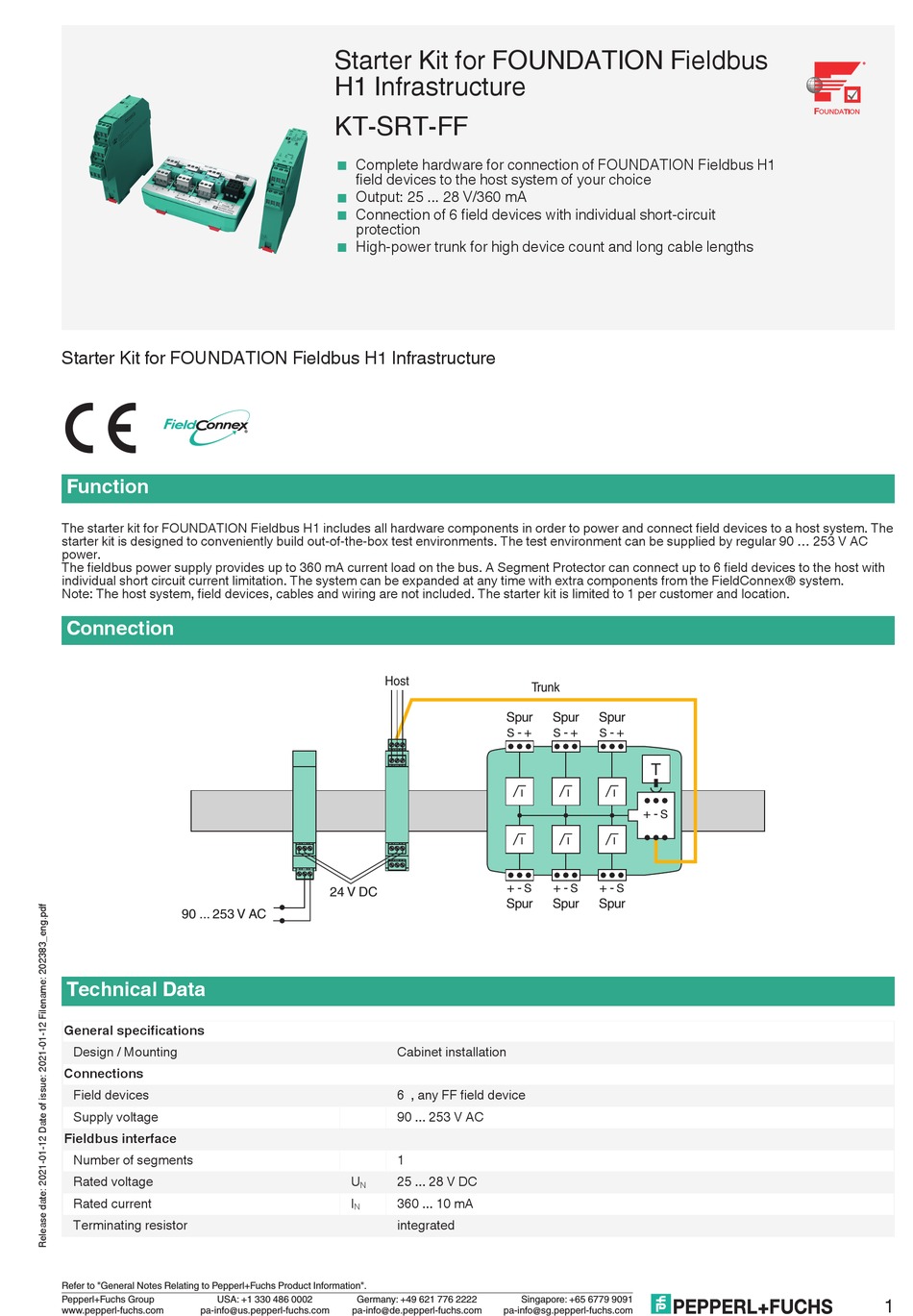

Pepperl+Fuchs KT-SRT-FF Manual

Starter Kit for FOUNDATION Fieldbus H1 Infrastructure
Function
The starter kit for FOUNDATION Fieldbus H1 includes all hardware components in order to power and connect field devices to a host system. The
starter kit is designed to conveniently build out-of-the-box test environments. The test environment can be supplied by regular 90 ... 253 V AC
power.
The fieldbus power supply provides up to 360 mA current load on the bus. A Segment Protector can connect up to 6 field devices to the host with
individual short circuit current limitation. The system can be expanded at any time with extra components from the FieldConnex® system.
Note: The host system, field devices, cables and wiring are not included. The starter kit is limited to 1 per customer and location.
Connection
90 ... 253 V AC
Technical Data
General specifications
Design / Mounting
Connections
Field devices
Supply voltage
Fieldbus interface
Number of segments
Rated voltage
Rated current
Terminating resistor
Refer to "General Notes Relating to Pepperl+Fuchs Product Information".
Pepperl+Fuchs Group USA: +1 330 486 0002
www.pepperl-fuchs.com pa-info@us.pepperl-fuchs.com
Starter Kit for FOUNDATION Fieldbus
H1 Infrastructure
KT-SRT-FF
< Complete hardware for connection of FOUNDATION Fieldbus H1
field devices to the host system of your choice
<
Output: 25 ... 28 V/360 mA
< Connection of 6 field devices with individual short-circuit
protection
<
High-power trunk for high device count and long cable lengths
®
Host
24 V DC
Cabinet installation
6 , any FF field device
90 ... 253 V AC
1
U 25 ... 28 V DC
N
I 360 ... 10 mA
N
integrated
Germany: +49 621 776 2222
pa-info@de.pepperl-fuchs.com
Trunk
Spur Spur Spur
- + - + - +
S S S
T
I I I
+ -
S
I I I
+ - + - + -
S S S
Spur Spur Spur
