The subsystem configuration screen for UltraScale+ device is shown in
X-Ref Target - Figure 4-1
Component Name: The Component Name is used as the name of the top-level wrapper file
for the subsystem. The underlying netlist still retains its original name. Names must begin
with a letter and must be composed from the following characters: a through z, 0 through
9, and "_". The default is mipi_csi2_rx_subsystem_0.

Board Tab

The Board tab page provides board automation related parameters. The subsystem board
configuration screen is shown in
Board Interface: Select the board parameters.
• Custom: Allows user to configure custom values (no board automation support).
MIPI CSI-2 RX Subsystem v4.0
PG232 July 02, 2019

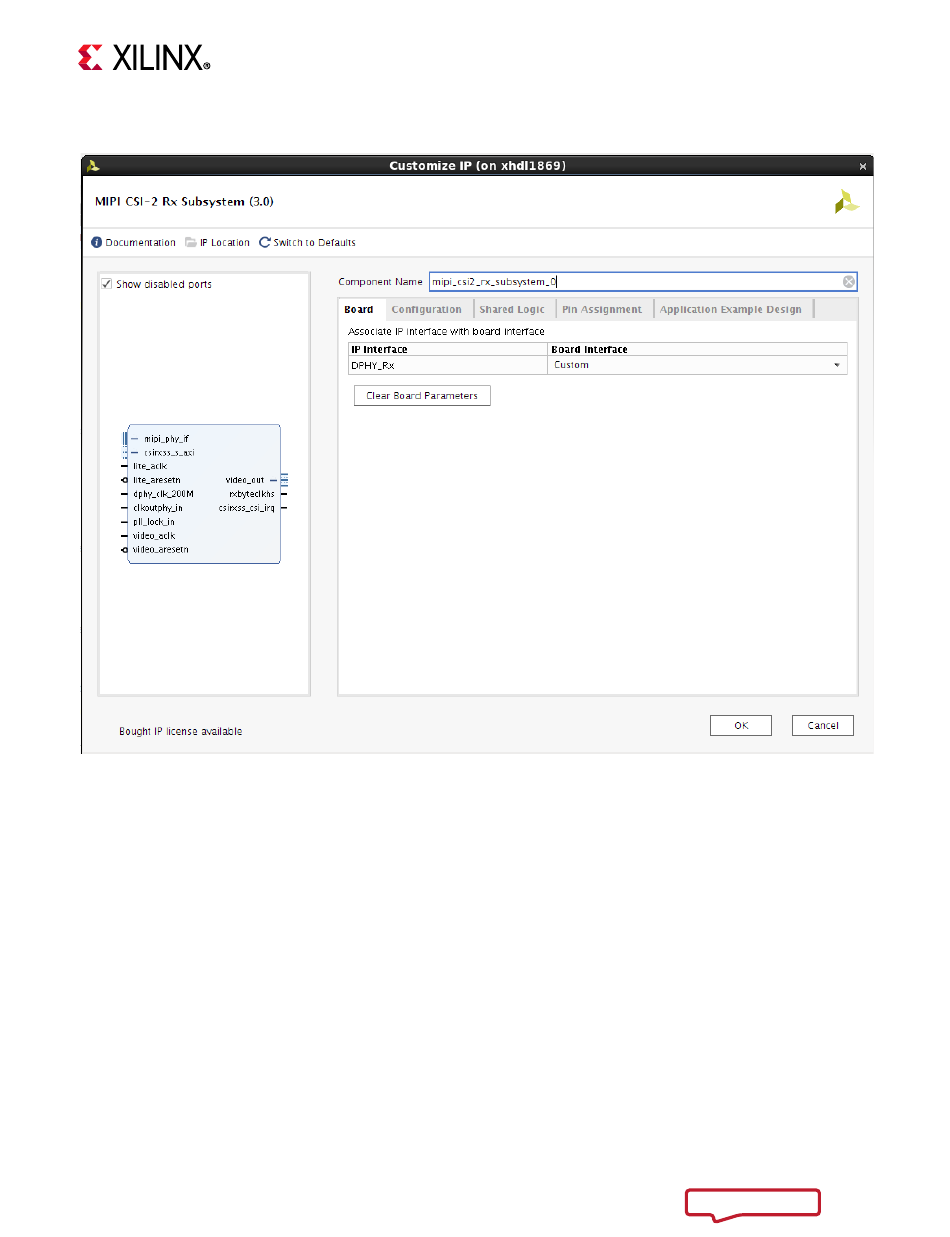

Figure 4-1: Subsystem Customization Screen - Board
Figure
www.xilinx.com
4-1.
