10. Click IP Catalog and select MIPI CSI-2 Rx Subsystem under Video Connectivity, then
double click on it.
X-Ref Target - Figure 5-10
For the Application Example Design flow, IP configuration is based on options
°
selected in 'Application Example Design' tab.
You can rename the IP component name.
°
11. Configure MIPI CSI-2 Rx Subsystem 'Application Example Design' tab, then click OK.
MIPI CSI-2 RX Subsystem v4.0
PG232 July 02, 2019

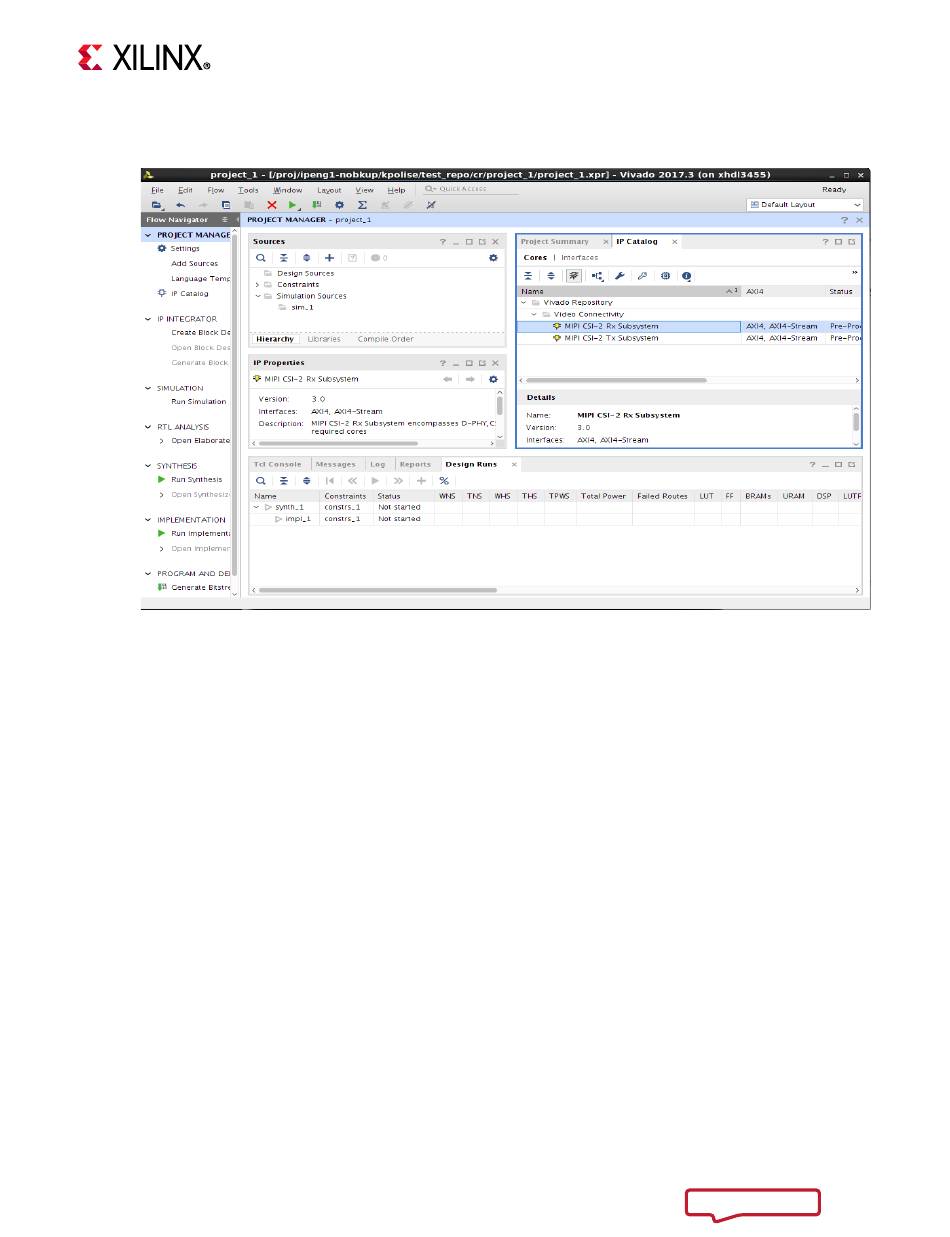

Figure 5-10: Vivado IDE - IP Catalog
