X-Ref Target - Figure 3-4

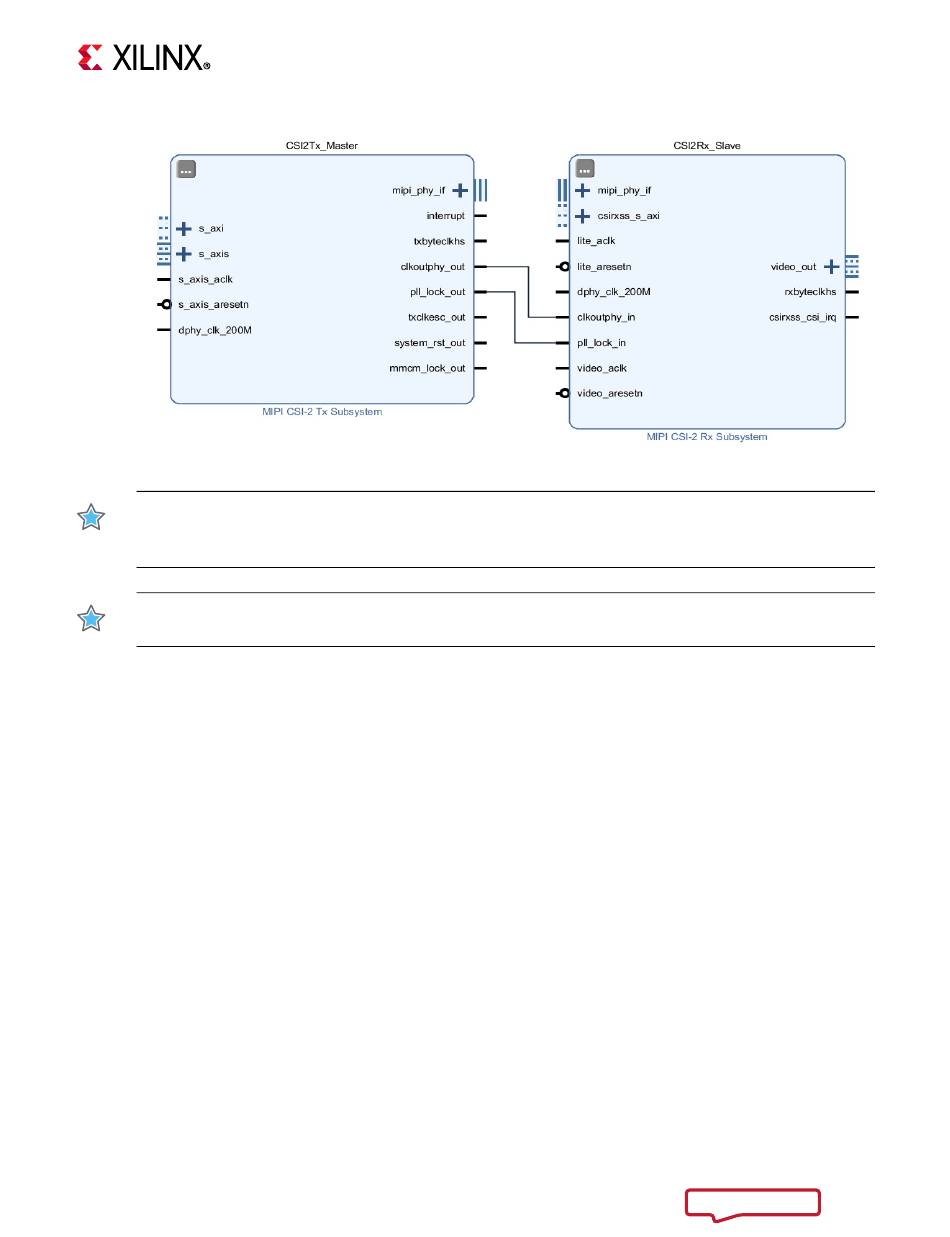

Figure 3-4: Clock Sharing in MIPI CSI-2 TX and MIPI CSI-2 RX Subsystems
MIPI CSI-2 TX Subsystem and MIPI CSI-2 RX Subsystem share clocking resources, in such
IMPORTANT:
scenario MIPI CSI-2 TX Subsystem need to be configured using Include Shared Logic in Core option
under Shared Logic tab.
The master and slave can be configured with the different line rate when sharing
IMPORTANT:
clkoutphy within IO bank.
