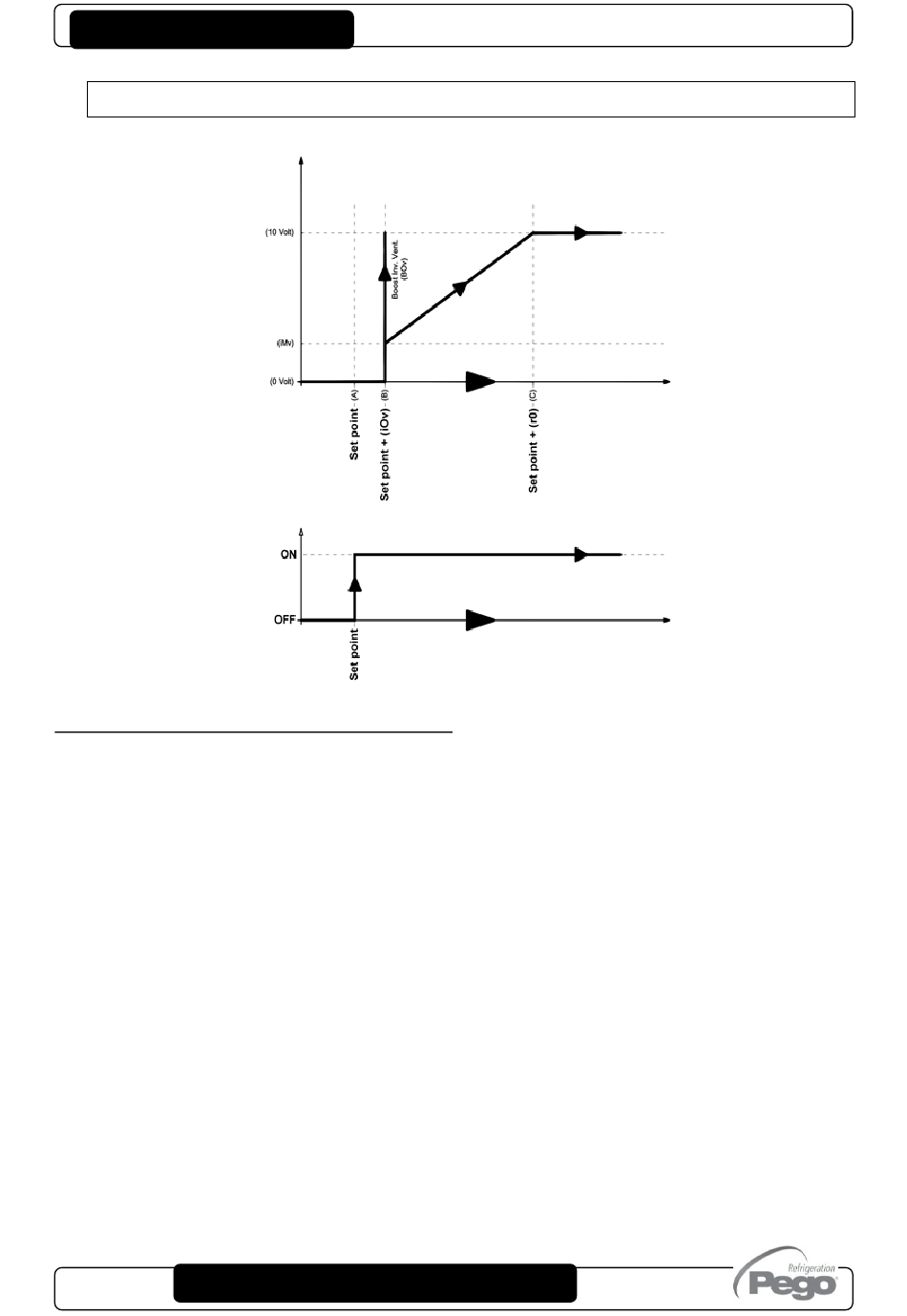

Graph n.5
Output pressure DECREASING (Graph. n.6):
With output pressure probe values equal or higher than point (D), you will have a 10V
analogue output.
Between points (D) and (E), the analogue output will have a value proportional to the
value of the output pressure probe starting from the maximum value of 10V up to the
minimum value of the (iMv) parameter. With values of the output pressure probe lower
than point (E) and higher than point (F), you will have an analogue output equal to the
minimum value of the (iMv) parameter. The analogue output of the adjuster will be 0V for
output pressure probe less or equal to point (F) representing the "SET point" value. Digital
output no.1 represents "the condenser fans inverter activation" and is ON for pressure
values higher than or equal to the set point and OFF for lower values.
