CAP. 2 - Installation

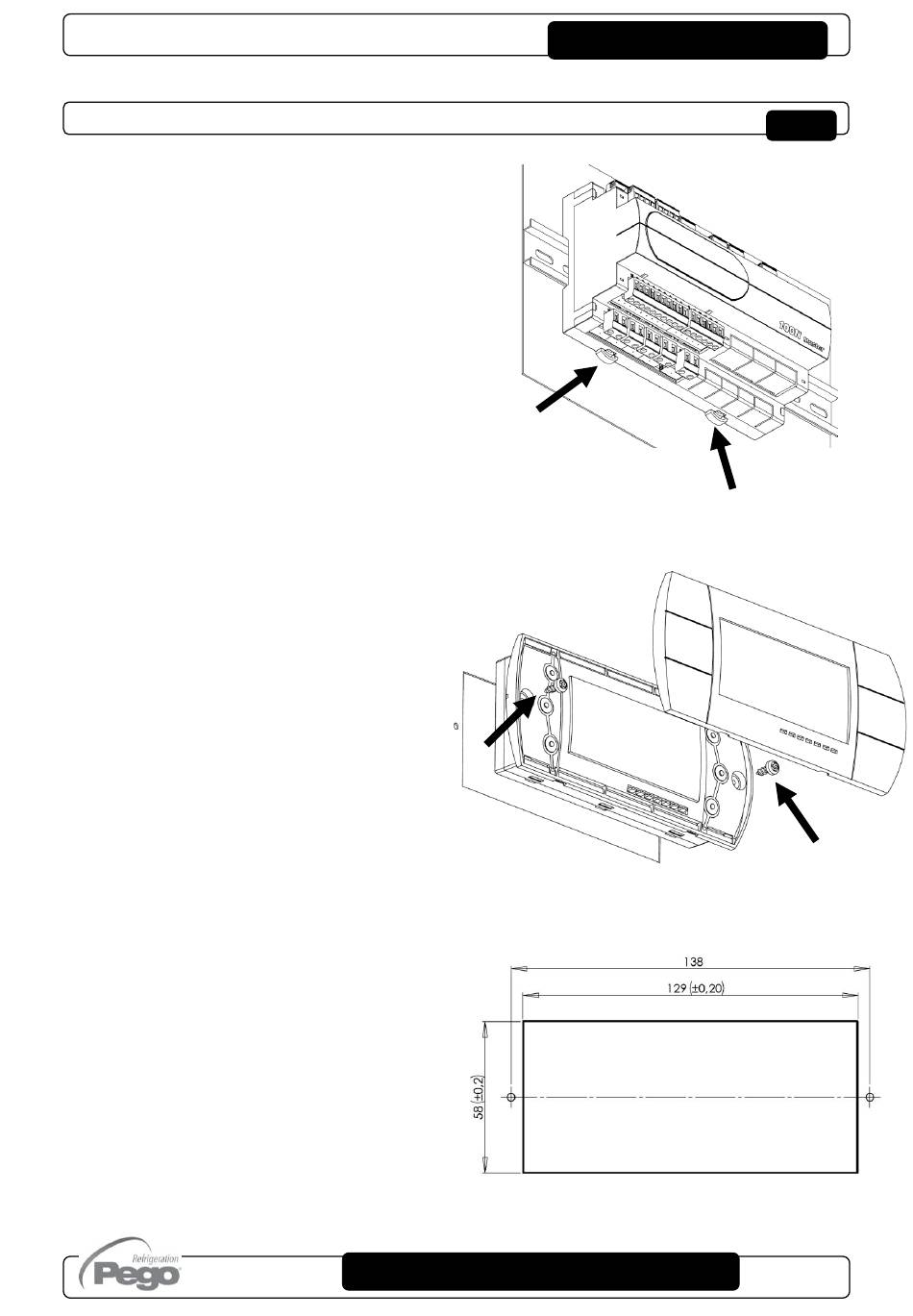

Fig. 1: Position the module 100N
MASTER3 on the DIN guide and
close the 2 lower hooks to lock it
on the same.
Fig. 2: Fix the VISION SC600 console
using the two screws to be
inserted in the slots underneath
the keys frame.
Fig. 3: VISION
perforation template.
