5.9
LABEL
SET differential (of the pressure)
r0C
compressors (interlocked with nC)
The minimum time that must elapse
between the insertion of a compressor
t1C step and the next one (SECONDS)
This time avoids breakaways caused
by simultaneous start-ups.
The minimum time that must elapse
t2C between two different compressor
step deactivations. (SECONDS)
The minimum time that must elapse
between two successive insertions
t3C
of the same compressor step.
(SECONDS)
The minimum time that must elapse
between one shutdown and the next
t4C
insertion of the same compressor
step. (SECONDS)
SET differential (of the pressure) fans.
r0U (interlocked with iOu but only if iEn=2 or
iEn=3, otherwise interlocked with nU)
The minimum time that must elapse
between the insertion of a fan step and
t1U the next one. (SECONDS)
This time avoids breakaways caused
by simultaneous start-ups.
The minimum time that must elapse
t2U between two different fan step
deactivations. (SECONDS)
The minimum time that must elapse
t3U between two successive insertions
of the same fan step. (SECONDS)
The minimum time that must elapse
between one shutdown and the next
t4U
insertion of the same fan step.
(SECONDS)
Type of refrigerant GAS in use.
Fty The wrong configuration of this
parameter does not affect operation.
UM View unit of measurement
Display of the 0-10V analogue output
AOC
for compressor inverter
Display of the 0-10V analogue output
AOU
for condenser fans inverter
USE AND MAINTENANCE MANUAL
Pag. 16

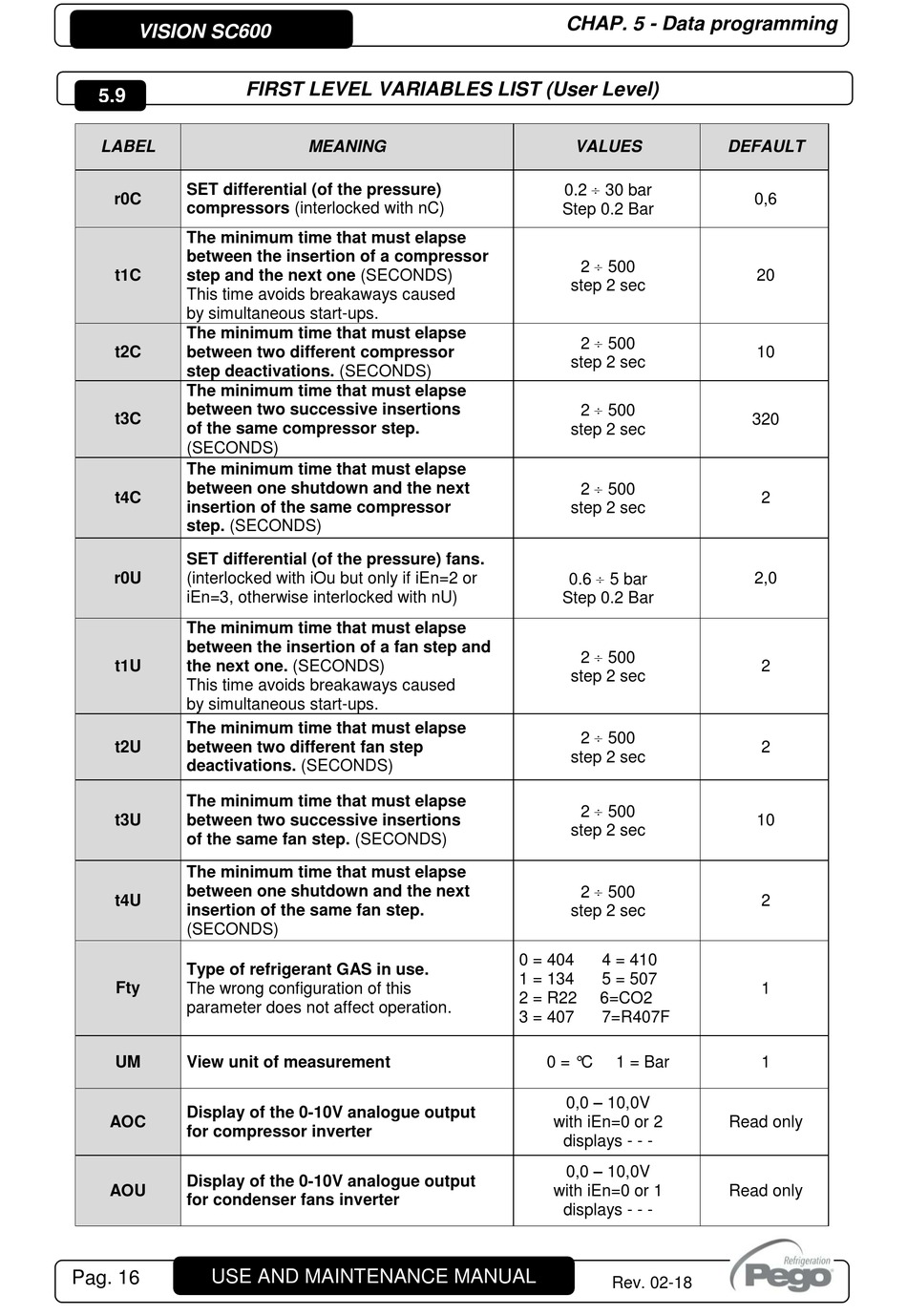

FIRST LEVEL VARIABLES LIST (User Level)
MEANING
CHAP. 5 - Data programming
VALUES
0.2  30 bar
Step 0.2 Bar
2  500
step 2 sec
2  500
step 2 sec
2  500
step 2 sec
2  500
step 2 sec
0.6  5 bar
Step 0.2 Bar
2  500
step 2 sec
2  500
step 2 sec
2  500
step 2 sec
2  500
step 2 sec
0 = 404 4 = 410
1 = 134 5 = 507
2 = R22 6=CO2
3 = 407 7=R407F
0 = °C 1 = Bar
0,0 – 10,0V
with iEn=0 or 2
displays - - -
0,0 – 10,0V
with iEn=0 or 1
displays - - -
