VISION SC600

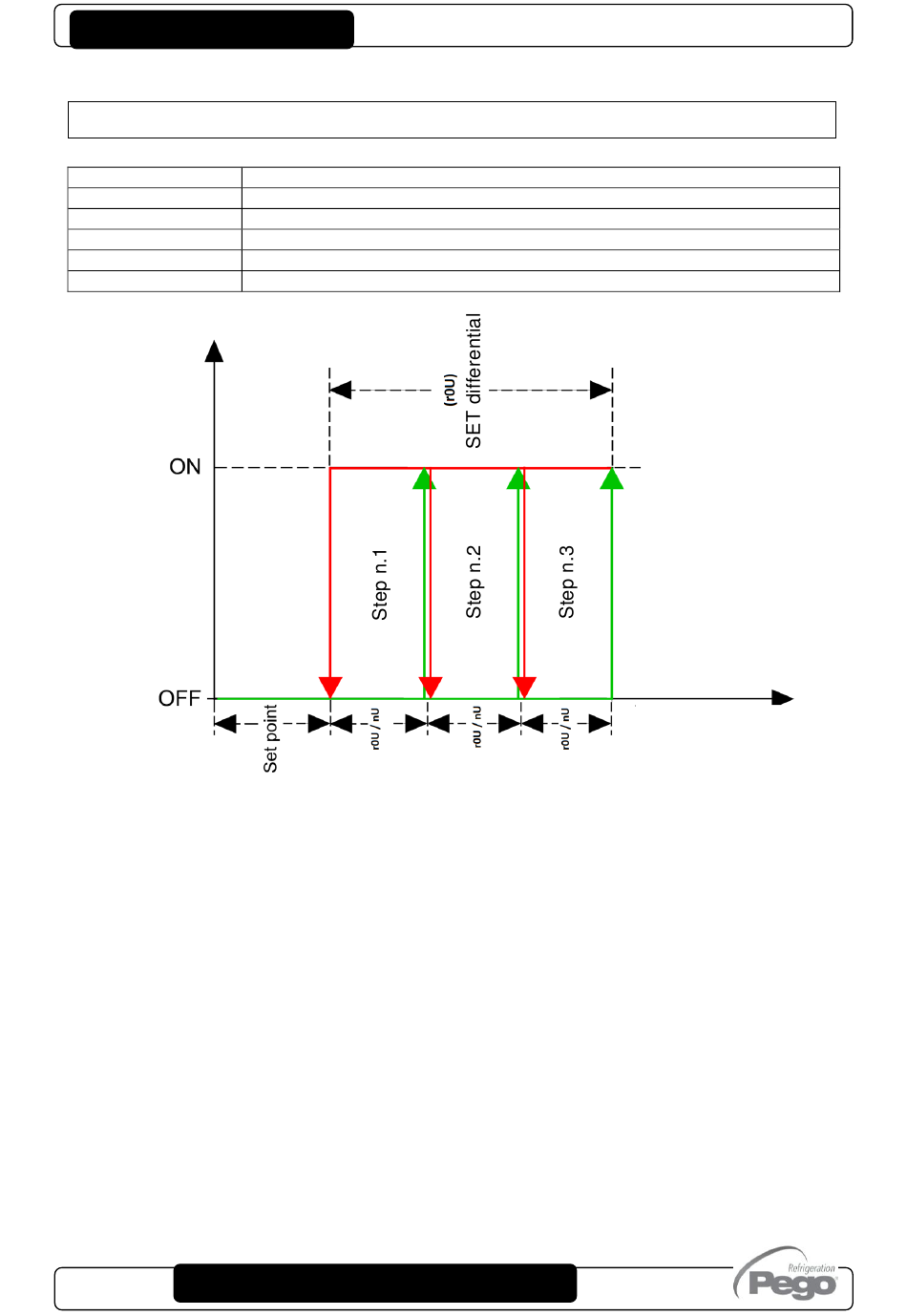

Graph n.3
Legend
Condens. Fan State
Delivery pressure
Fans Set point
r0u
Step n.1,2,3
nU
Condenser
fans outputs
state
USE AND MAINTENANCE MANUAL
Pag. 30
Condenser fan state (on / off)
Delivery pressure (Bar) for the activation of condenser fans
SET POINT (Bar) set by the operator to enable condenser fans.
FAN SET differential.
Insertion steps that are paired with the outputs based on the variable Seq
no. of condenser fan managed (Third level parameter)
