Attachments

Power supply

PIN
TERMINAL
N – L Power supply
1 – 2
115÷230Vac ±10% 50/60Hz
Connect ground to terminal 45 of the console (functional earth). This
connection helps to limit the effects of electromagnetic noise on the
45
control system. The ground connection must be made in a manner
consistent with applicable regulations.

Digital outputs

PIN
TERMINAL
Relay 30A 240V~ (AC1)
3 – 4
Relay 16A 240V~ (AC1)
5 – 6
Relay 16A 240V~ (AC1)
7 – 8
Relay 16A 240V~ (AC1)
9 – 10
Relay 16A 240V~ (AC1)
11 – 12
Relay 16A 240V~ (AC1)
13 – 14
Relay 16A 240V~ (AC1)
15 - 16
Relay 16A 240V~ (AC1)
17 – 18
Relay 16A 240V~ (AC1)
19 – 20
Relay 16A 240V~ (AC1)
21 – 22
Rev. 02-18

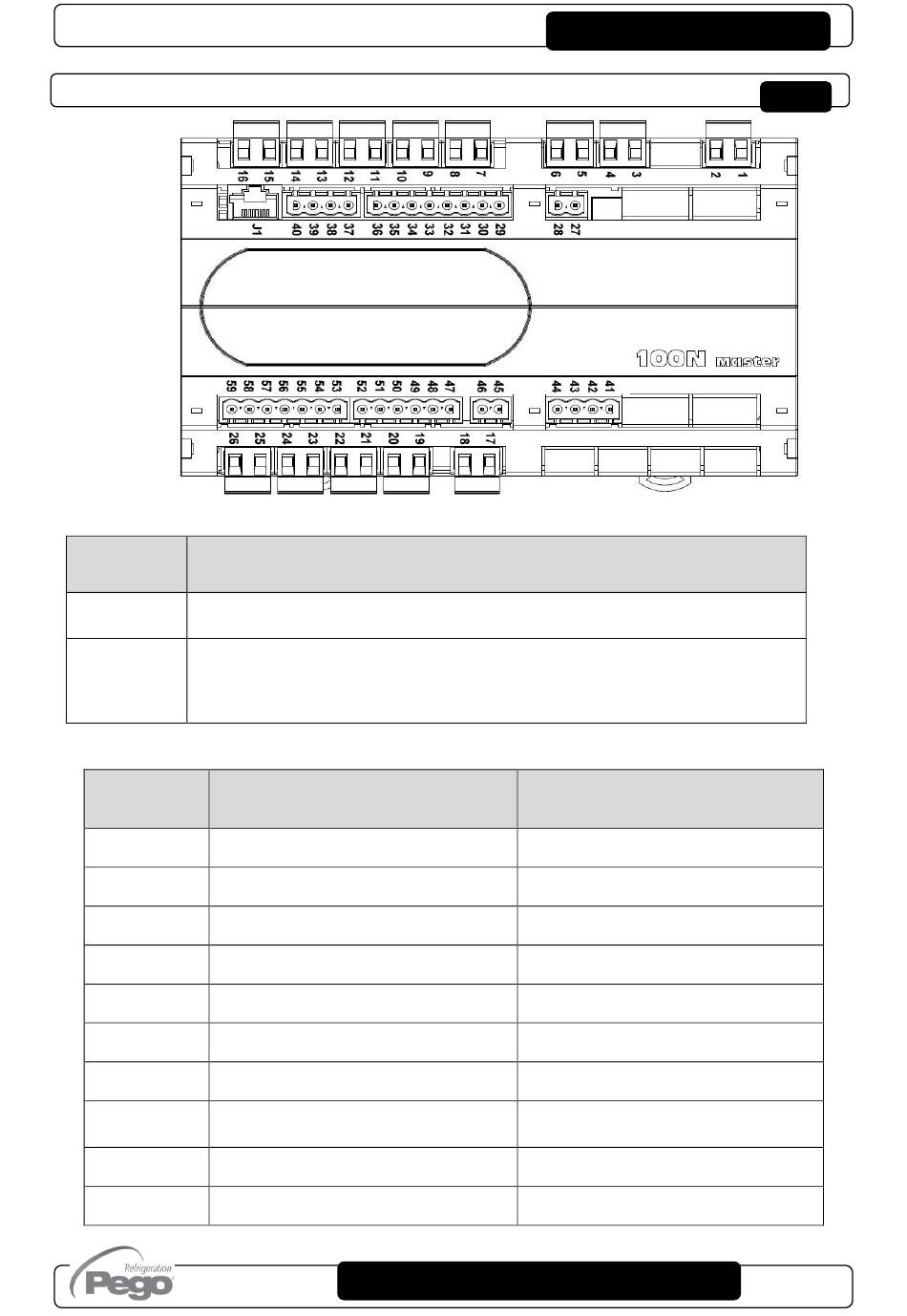

100N MASTER3 CONNECTION LAYOUT
RELAY OUTPUTS FEATURES
(Voltage free contacts)
10A 240V~ (AC3) (2HP)
3A 240V~ (AC3)
3A 240V~ (AC3)
3A 240V~ (AC3)
3A 240V~ (AC3)
3A 240V~ (AC3)
3A 240V~ (AC3)
3A 240V~ (AC3)
3A 240V~ (AC3)
3A 240V~ (AC3)
USE AND MAINTENANCE MANUAL
DESCRIPTION
C
onsumption: 20 VA max.
Compr. 1 / Partition 1 / Fan 1
Compr. 2 / Partition 2 / Fan 2
Compr. 3 / Partition 3 / Fan 3
Compr. 4 / Partition 4 / Fan 4
Compr. 5 / Partition 5 / Fan 5
Compr. 6 / Partition 6 / Fan 6
Compr. 7 / Partition 7 / Fan 7
Alarm relay
Not used
Compr. 10 / Partition 10 / Fan 10
VISION SC600
A.2
DESCRIPTION
Pag. 45
