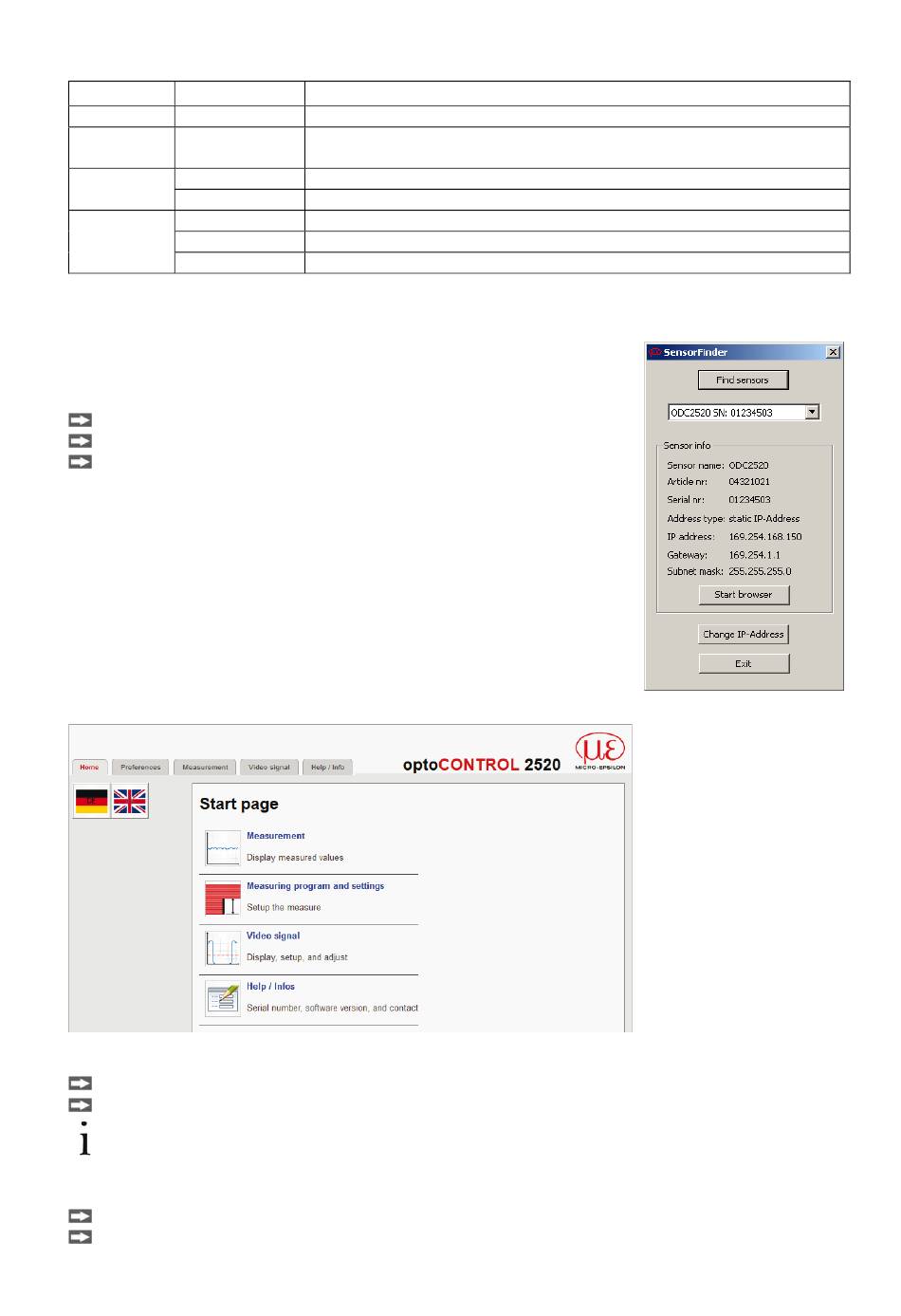

MICRO-EPSILON optoCONTROL 2520 Assembly Instructions Manual page 6

Meaning of the Light Emitting Diodes on the Receiver
Color
LED
Power on green
Status yellow
yellow
Speed
off
green
Link/activity
off
Flashing
Quick Start Guide
The sensor is delivered ex works with the IP address 169.254.168.150.
The IP address of the sensors which are connected to a PC/network can
be interrogated with the program SensorFinder.exe.
Start the SensorFinder and press the Find sensors button.
Select the correct sensor from the list.
Press the Start browser button in order to connect the sensor
with your standard browser.
The start screen of the sensor software should be displayed now in the
web browser:
Selecting the Measuring Distance
Open the menu Settings > Measuring distance.
Select a calibrated measuring distance from the list and confirm with Submit.
If the measuring distance changes during the measurement or if the target edge has a large
thickness parallel to the laser beam, a considerable linearity error can occur.
Selecting the Measuring Program
Open the menu Settings > Measurement program.
Select the desired measurement e.g. Edge Low-high.
optoCONTROL 2520
Ethernet transmission error; when EtherCAT-interface is active, the
meaning depends on the EtherCAT guidelines
Remarks
---
Baud rate 100 Mb
Baud rate 10 Mb
Active link
Inactive link
Network activity
4
