MICRO-EPSILON optoCONTROL 2520 Assembly Instructions Manual page 4

Mounting the Components
•
Light source
•
Receiver
•
On the delivered mounting rail (or free mounting on own stable appliance)
•
Power supply
•
Laptop / PC
Position the light source and the receiver without covering the connectors and the display
elements.
Connect the components.

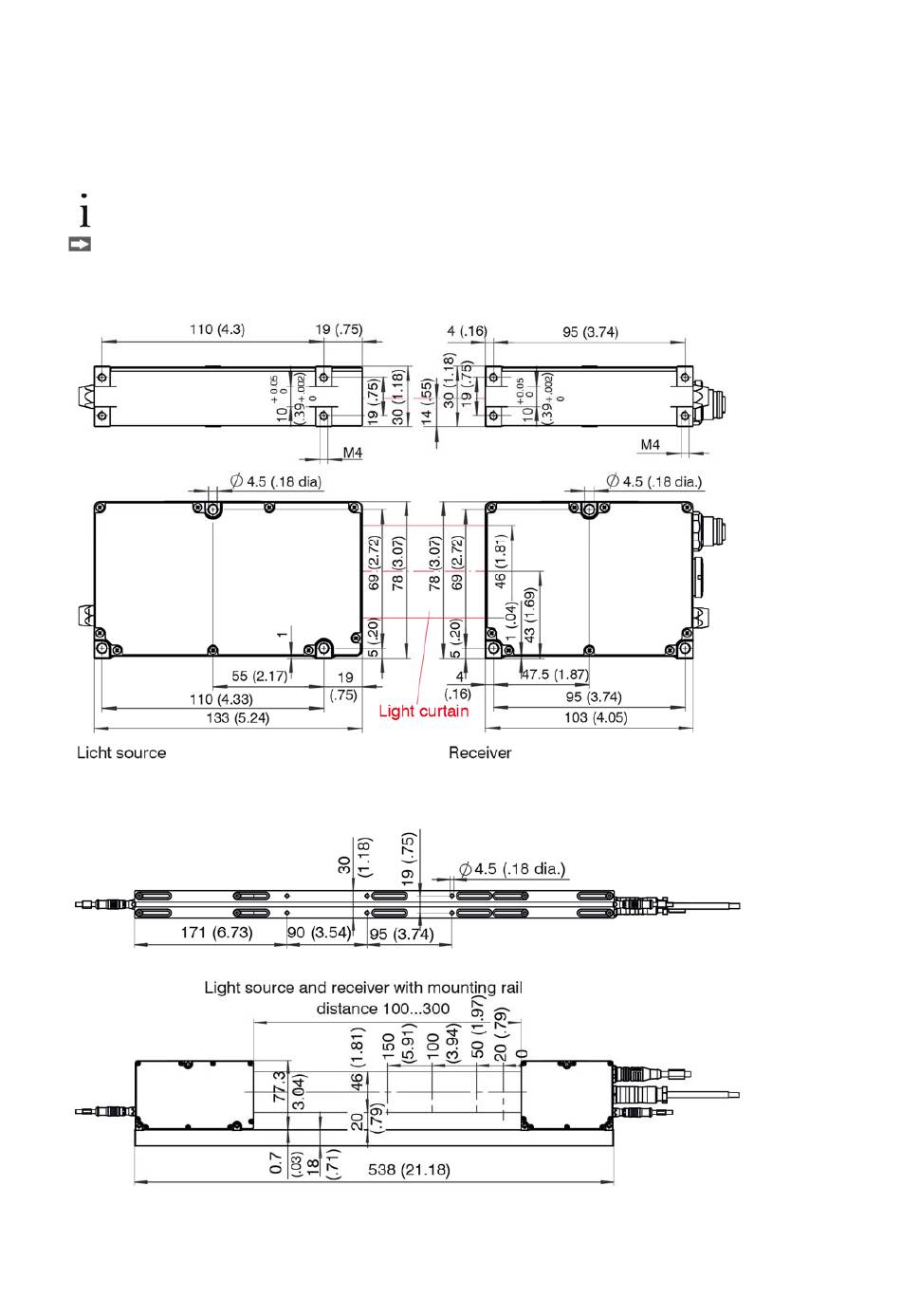

Dimensional Drawings
Light source and receiver
Dimensional Drawings
Light Source and Receiver with Mounting Rail
Light Source Female Connector (3-pin)
There are cables of various lengths (1 m, 2 m or 5 m, each one optionally with straight plug or angled
connector) for the connection between the light source and the receiver.
optoCONTROL 2520 2
