It allows the selection of the action performed by the device, if it is controlled via network and detects a communication
error.
Options
0 = Inactive
1 = Disable via Run/Stop
2 = Disable via General
Enable
3 = Change to Local
4 = Change to Local keeping
commands and reference
5 = Causes a Fault
The device consider the following events as communication errors:
Alarm A145/Fault F245: erro de acesso à interface EtherCAT.
Alarm A146/Fault F246: EtherCAT offline.
The actions described in this parameter are done by means of the automatic writing of the selected actions in the
respective bits of the interface control words. Therefore, in order that the commands written in this parameter be
effective, it is necessary that the device be programmed to be controlled via the used network interface (with exception
of option "Causes a Fault", which blocks the equipment even if it is not controlled by network). This programming is
achieved by means of parameters P0220 to P0228.

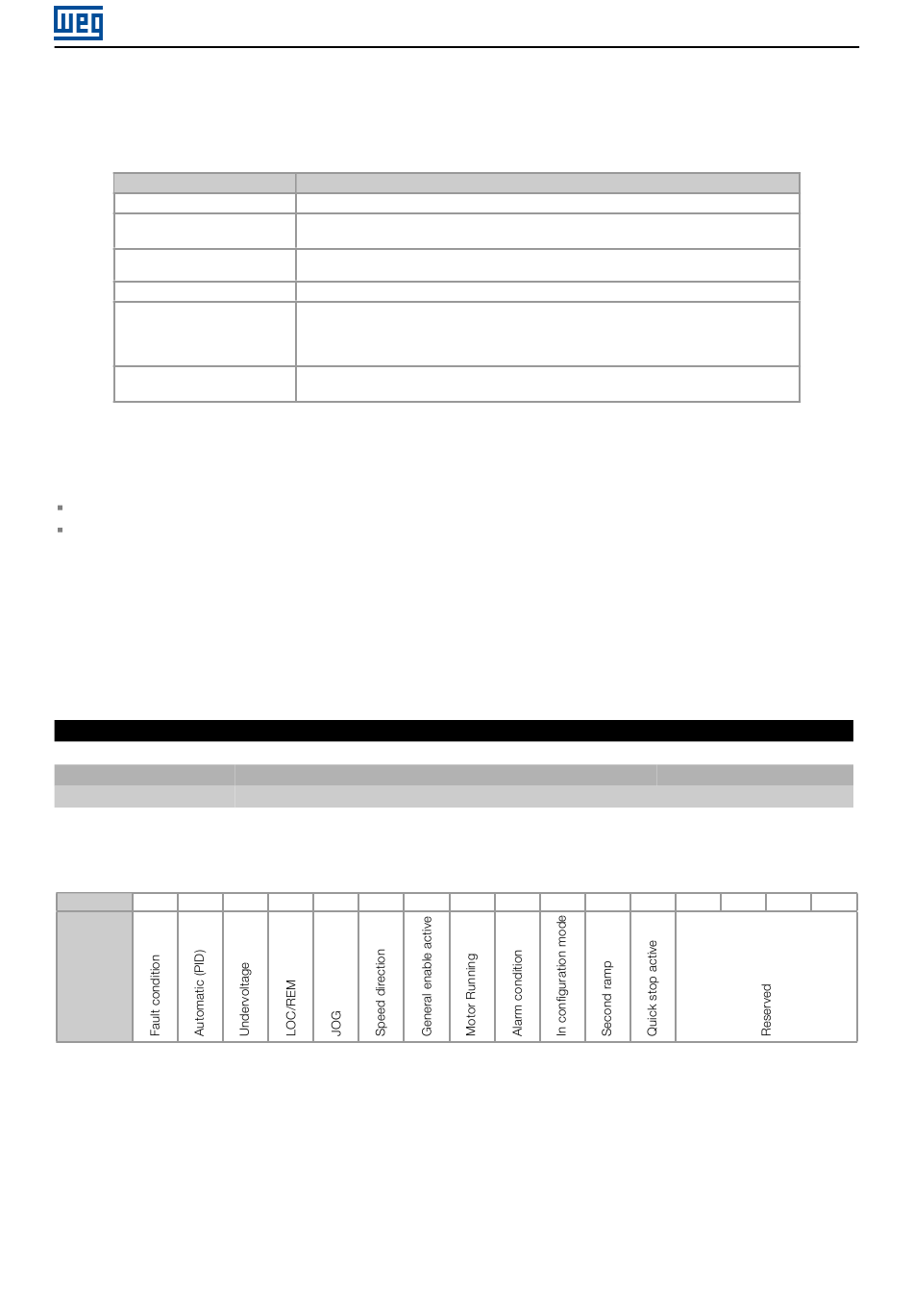

P0680 – STATUS WORD
Range:
Properties:
Description:
It allows the device status monitoring. Each bit represents a specific status:
Bit
15 14
Function
Table 5.1: P0313 options
It takes no action and the device remains in the existing status.
It performs a stop command and the motor stops according to the programmed
deceleration ramp.
The device is disabled by removing the General Enabling and the motor coasts to stop.
The device commands change to Local.
The device commands change to Local, but the enabling commands and speed
reference received via network are kept, if the device has been programmed to use,
in Local mode, the commands via HMI or 3-wire start/stop, and speed reference via
either HMI or electronic potentiometer.
Instead of an alarm, the communication error causes a device fault, so that a fault reset
becomes necessary in order to restore normal operation.
0000h ... FFFFh
RO
13 12 11 10
Description
9 8 7 6
Parameterization
Default: -
5 4 3 2
CFW11 | 13
1 0
