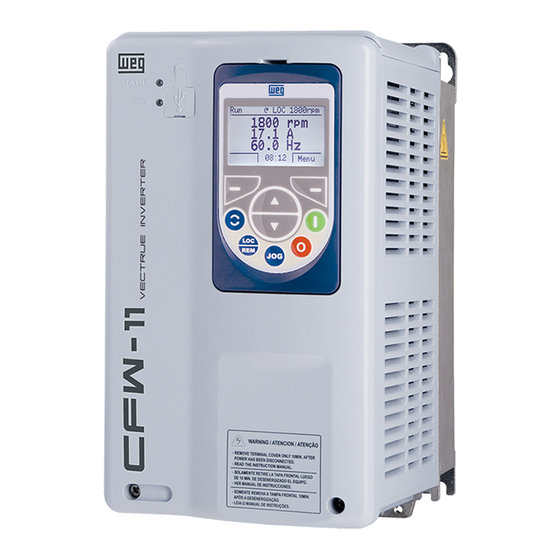

  • Page 1 Motors | Automation | Energy | Transmission & Distribution | Coatings Safety Stop Function Función Parada Segura Função de Parada de Segurança CFW-11, CFW-11M, CFW70X Installation, Configuration and Operation Guide Guía de Instalación, Configuración y Operación Guia de Instalação, Configuração e Operação...

  • Page 3: Table Of Contents

    Summary / Índice ENGLISH 1. GENERAL INFORMATION ....................5 2. INSTALLATION ........................8 3. OPERATION ........................10 3.1 Truth Table ..........................10 3.2 State of Inverter, Fault and Alarm Related to Safety Stop Function ........10 3.3 STO Status Indication ......................11 3.4 Periodic Test..........................11 4.

  • Page 5: General Information

    Safety Stop Function 1. GENERAL INFORMATION Inverters with safety stop option have suffix Y (CFW-11 and CFW-11M inverters) or suffix Y1 (CFW70x inverters) on its nomenclature. Control units of CFW-11M with safety stop option also have suffix Y on its name (e.g.: UC11-1340T5OYZ).
  • Page 6 EN 954-1 / ISO 13849-1, Category 3 (machine safety) and IEC/EN 61508, SIL2 (safety control/signalling applied to processes and systems). XC25 XC25 (a) CFW-11 and CFW70x frame A inverters – (b) CFW-11 frame B and C inverters – SRB1A.00 board SRB2A.00 board...
  • Page 7 Safety Stop Function XC25 XC25 (e) CFW70x frame D and E inverters – (f) CFW-11 frame F and G inverters – SRB2A.00 board for 200...240 V / 220...230 V and SRB3.00 board 380...480 V models and SRB4.00 for 500...600 V models Figure 2 (cont.): SRBXX board (safety stop function)

  • Page 8: Installation

    In most of cases, those terminals are connected to XC1:11 control terminal in CFW-11 and CFW-11M inverters and to XC1:36 in CFW70X inverters. NOTE! Follow the instructions provided on item 3.2.5 (CFW-11 and CFW70x) or 3.4.8 (CFW-11M) of User’s Manual. For XC25 control cabling consider the following: Use wire gauge from 0.5 mm...
  • Page 9 Figure 3: Example of connection of shielding of control cable (in this case it was presented an example of cables connected on XC1 terminals, but the same applies to XC25 terminals) If the degree of protections of the used inverter is lower than IP54, it must be installed inside an IP54 (minimum) cabinet. CFW-11, CFW-11M, CFW70X | 9...

  • Page 10: Operation

    A170 alarm (only on Safety stop Only for keypad indication purpose, this alarm is indicated in CFW70x inverters with activated CFW70x inverters when the state of inverter is switched to STO. software version V1.02 or higher) 10 | CFW-11, CFW-11M, CFW70X...

  • Page 11: Sto Status Indication

    3.3 STO STATUS INDICATION State of the inverter is shown on the left upper side of the display of the keypad of CFW-11 and CFW-11M series, on the mid upper region of keypad of CFW70x series (not all states of the inverter are indicated on the keypad of CFW70x) and in parameter P0006.

  • Page 12: Examples Of Wiring Diagrams Of Inverter Control Signal

    XC1:15 - DI1 Stop XC1:16 - DI2 XC25:1 - STO1(R1+) XC25:3 - STO2(R2+) CFW-11/ CFW-11M (c) SS1 safety function with CFW-11 and CFW-11M inverters XC1:36 - GND(24V) XC1:35 - COM XC25:2 - GND(R1-) XC25:4 - GND(R2-) XC1:34 - +24V 13 23...

  • Page 13: Technical Specifications

    IEC/EN 61800-5-2 and IEC/EN 60204-1. Of the system process Safety stop function which forces stopping and/or prevents the motor from restarting unintentionally, conforming to IEC/EN 61508 level SIL2 and IEC/EN 61800-5-2. NOTE! Certification of the product is in annex. CFW-11, CFW-11M, CFW70X | 13...

  • Page 14: Informaciones Generales

    Los convertidores de frecuencia con la opción parada de seguridad poseen en su nomenclatura el sufijo Y (CFW-11 y CFW-11M) o el sufijo Y1 (CFW70x). La unidad de control del CFW-11M con el accesorio opcional parada de seguridad también posee el sufijo Y en su nombre (ejemplo: UC11-1340T5OYZ).
  • Page 15 EN 954-1 / ISO 13849-1, Categoría 3. XC25 XC25 (a) Convertidores de Frecuencia CFW-11 y CFW70x (b) Convertidor de Frecuencia CFW-11 talla B y C – talla A – tarjeta SRB1A.00 tarjeta SRB2A.00 XC25...
  • Page 16 Función Parada Segura XC25 XC25 (e) Convertidores de Frecuencia CFW70x (f) Convertidores de Frecuencia CFW-11 talla tamaño D y E - tarjeta SRB2A.00 para F y G – tarjeta SRB3.00 modelos 200...240 V / 220...230 V y 380...480 V y tarjetas SRB4.00 para modelos 500...600 V Figura 2 (cont.): Tarjeta SRBXX (función de seguridad de parada)

  • Page 17: Instalación

    Los terminales XC25:2 y XC25:4 no están interconectados internamente a la referencia de la fuente +24 V del convertidor de frecuencia. En la mayoría de las veces se conecta estos terminales al terminal de controle XC1:11 en los inversores CFW-11 y CFW-11M y al XC1:36 para el inversor CFW70X.
  • Page 18 XC1, más el mismo se aplica a los cables conectados en XC25) Si el grado de protección del inversor utilizado es inferior a IP54, debe ser instalado dentro de un armario IP54 (mínimo). 18 | CFW-11, CFW-11M, CFW70X...

  • Page 19: Puesta En Marcha

    Para fines de señalización en la HMI, esa alarma es presentada (solamente en los de seguridad en el CFW70x cuando el estado del convertidor de frecuencia convertidor de frecuencia activa. es igual a STO. CFW70x con versión de software V1.02 o superior). CFW-11, CFW-11M, CFW70X | 19...

  • Page 20: Señalización Del Estado De La Función "Safety Stop

    El estado del convertidor de frecuencia es presentado en el canto izquierdo superior del display de la HMI del CFW-11 y CFW-11M, en el área central superior de la HMI del CFW70x (ni todos los estados del convertidor de frecuencia son señalados en la HMI del CFW70x) y en el parámetro P0006.

  • Page 21: Ejemplos De Diagramas De Conexión De Las Señales De Control Del Convertidor

    Stop XC1:16 - DI2 XC25:1 - STO1(R1+) XC25:3 - STO2(R2+) CFW-11/ CFW-11M (c) Parada tipo SS1 con Convertidor de Frecuencia CFW-11 y CFW-11M (*) XC1:36 - GND(24V) XC1:35 - COM XC25:2 - GND(R1-) XC25:4 - GND(R2-) XC1:34 - +24V 13 23...

  • Page 22: Especificaciones Técnicas

    Función parada de seguridad que garantiza la parada y/o evita el accionamiento no deseado del motor conforme la normativa IEC/EN 61508 nivel SIL2 y IEC/EN 61800-5-2. ¡NOTA! Certificación del producto es encontrada en el anexo. 22 | CFW-11, CFW-11M, CFW70X...

  • Page 23: Informações Gerais

    Os inversores com a opção parada de segurança possuem na sua nomenclatura o sufixo Y (inversores CFW-11 e CFW-11M) ou o sufixo Y1 (inversores CFW70x). A unidade de controle do CFW-11M com o opcional parada de segurança também possui o sufixo Y no seu nome (ex: UC11-1340T5OYZ).
  • Page 24 é possível o atendimento da norma EN 954-1 / ISO 13849-1, Categoria 3. XC25 XC25 (a) Inversores CFW-11 e CFW70x mecânica A – (b) Inversores CFW-11 mecânicas B e C – cartão SRB1A.00 cartão SRB2A.00...
  • Page 25 Função de Parada de Segurança XC25 XC25 (e) Inversores CFW70x mecânicas D e E – (f) Inversores CFW-11 mecânicas F e G – cartão SRB2A.00 para modelos 200...240 V cartão SRB3.00 / 220...230 V e 380...480 V e cartão SRB4.00 para modelos 500...600 V...

  • Page 26: Instalação

    Os terminais XC25:2 e XC25:4 não estão ligados internamente à referência da fonte +24 V do inversor. Na maioria das vezes conecta-se estes terminais ao terminal de controle XC1:11 nos inversores CFW-11 e CFW-11M e ao XC1:36 para o inversor CFW70X. NOTA! Seguir recomendações do item 3.2.5 (CFW-11 e CFW70x) ou 3.4.8 (CFW-11M) do...
  • Page 27 Função de Parada de Segurança Figura 3: Exemplo de conexão da blindagem dos cabos de controle (nesse caso foi apresentado exemplo de cabos ligados em XC1, mas o mesmo se aplica aos cabos ligados em XC25) CFW-11, CFW-11M, CFW70X | 27...

  • Page 28: Colocando Em Funcionamento

    Para fins de indicação na HMI, esse alarme é indicado no (somente nos inversores de segurança CFW70x quando o estado do inversor é igual a STO. CFW70x com versão ativa. de software V1.02 ou superior). 28 | CFW-11, CFW-11M, CFW70X...

  • Page 29: Indicação Do Estado Da Função Safety Stop

    3.3 INDICAÇÃO DO ESTADO DA FUNÇÃO SAFETY STOP O estado do inversor é apresentado no canto esquerdo superior do display da HMI do CFW-11 e CFW-11M, na área central superior da HMI do CFW70x (nem todos os estados do inversor são indicados na HMI do CFW70x) e no parâmetro P0006.

  • Page 30: Exemplos De Esquemas De Ligação Dos Sinais De Controle Do Inversor

    CFW-11/ Stop Stop CFW-11M CFW70X (a) Parada tipo STO ou SS0 com inversores CFW-11 e CFW-11M (b) Parada tipo STO ou SS0 com inversores CFW70x XC1:11 - DGND* XC1:12 - COM XC25:2 - GND(R1-) XC25:4 - GND(R2-) XC1:13 - +24V...

  • Page 31: Especificações Técnicas

    Do sistema de processo. Função parada de segurança que garante a parada e/ou evita o acionamento não desejado do motor conforme IEC/EN 61508 nível SIL2 e IEC/EN 61800-5-2. NOTA! Certificação do produto se encontra no anexo. CFW-11, CFW-11M, CFW70X | 31...

  • Page 32: Appendix

    APPENDIX ANEXO...
  • Page 33 USER NOTES / ANOTACIONES / ANOTAÇÕES DO USUÁRIO _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________...
  • Page 34 USER NOTES / ANOTACIONES / ANOTAÇÕES DO USUÁRIO _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________ _____________________________________________________________________________________________...
  • Page 36 WEG Drives & Controls - Automação LTDA. Jaraguá do Sul - SC - Brazil Phone 55 (47) 3276-4000 - Fax 55 (47) 3276-4020 São Paulo - SP - Brazil Phone 55 (11) 5053-2300 - Fax 55 (11) 5052-4212 automacao@weg.net 11863264...
