About this product
1

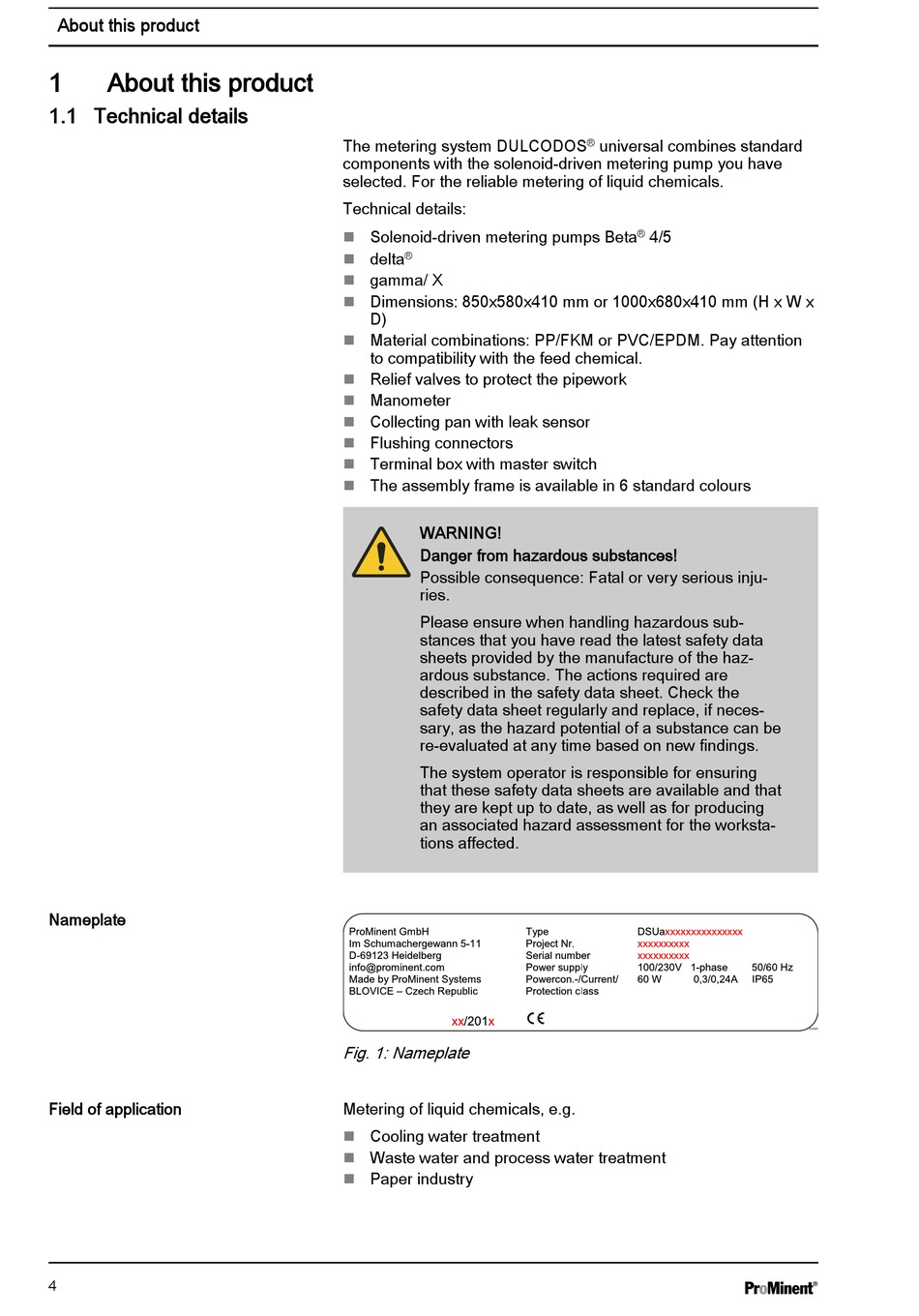

About this product
1.1 Technical details
Nameplate
Field of application
4
The metering system DULCODOS
components with the solenoid-driven metering pump you have
selected. For the reliable metering of liquid chemicals.
Technical details:
Solenoid-driven metering pumps Beta
n
delta
®
n
gamma/ X
n
Dimensions: 850x580x410 mm or 1000x680x410 mm (H x W x
n
D)
Material combinations: PP/FKM or PVC/EPDM. Pay attention
n
to compatibility with the feed chemical.
Relief valves to protect the pipework
n
Manometer
n
Collecting pan with leak sensor
n
Flushing connectors
n
Terminal box with master switch
n
The assembly frame is available in 6 standard colours
n
WARNING!
Danger from hazardous substances!
Possible consequence: Fatal or very serious inju‐
ries.
Please ensure when handling hazardous sub‐
stances that you have read the latest safety data
sheets provided by the manufacture of the haz‐
ardous substance. The actions required are
described in the safety data sheet. Check the
safety data sheet regularly and replace, if neces‐
sary, as the hazard potential of a substance can be
re-evaluated at any time based on new findings.
The system operator is responsible for ensuring
that these safety data sheets are available and that
they are kept up to date, as well as for producing
an associated hazard assessment for the worksta‐
tions affected.
Fig. 1: Nameplate
Metering of liquid chemicals, e.g.
Cooling water treatment
n
Waste water and process water treatment
n
Paper industry
n
®
universal combines standard
4/5
®
A2355
