About this product

2.1 Overview of Equipment

Components
2
3
4 5 6 7 8

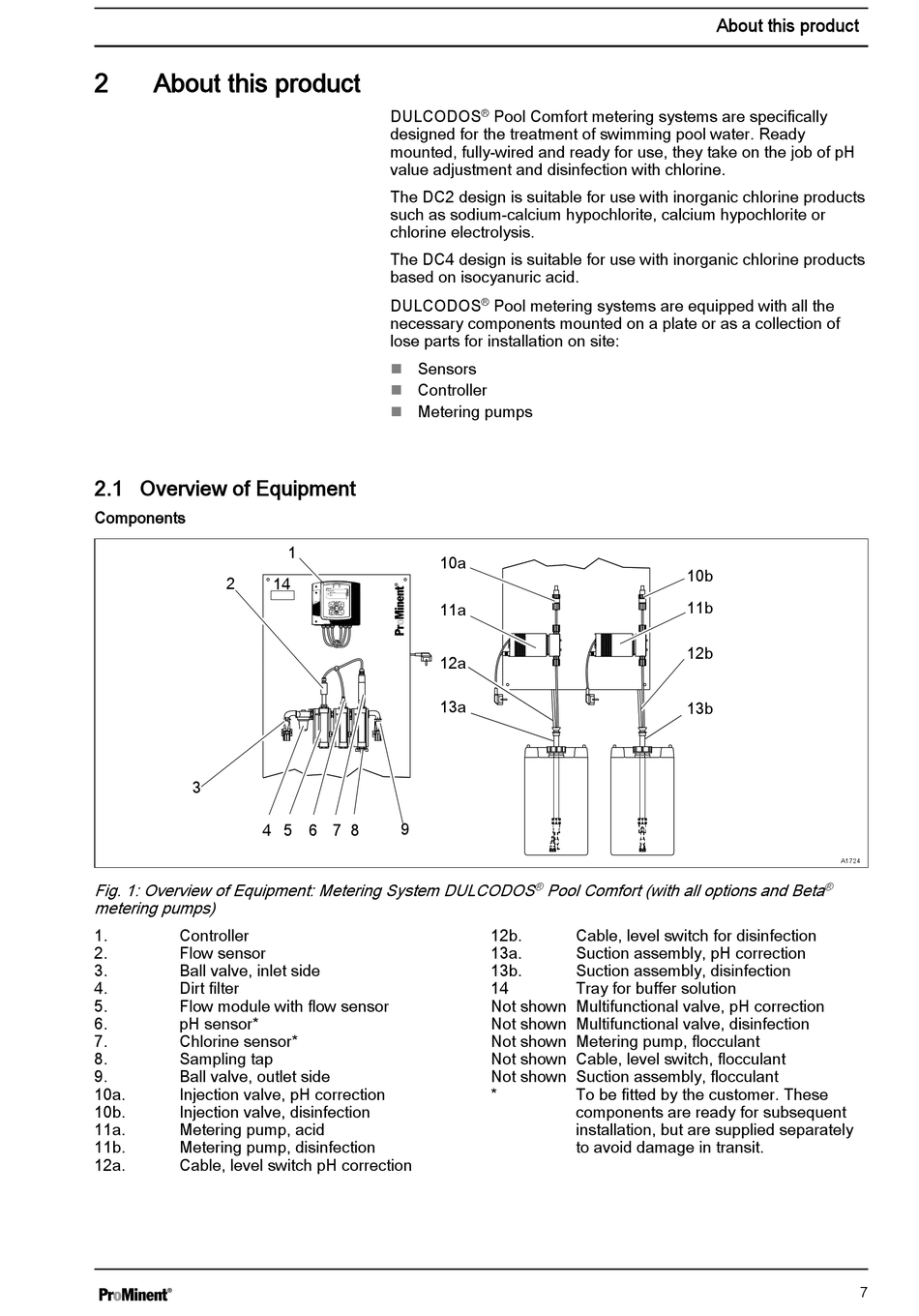

Fig. 1: Overview of Equipment: Metering System DULCODOS
metering pumps)
1. Controller
2. Flow sensor
3. Ball valve, inlet side
4. Dirt filter
5. Flow module with flow sensor
6. pH sensor*
7. Chlorine sensor*
8. Sampling tap
9. Ball valve, outlet side
10a. Injection valve, pH correction
10b. Injection valve, disinfection
11a. Metering pump, acid
11b. Metering pump, disinfection
12a. Cable, level switch pH correction
DULCODOS
designed for the treatment of swimming pool water. Ready
mounted, fully-wired and ready for use, they take on the job of pH
value adjustment and disinfection with chlorine.
The DC2 design is suitable for use with inorganic chlorine products
such as sodium-calcium hypochlorite, calcium hypochlorite or
chlorine electrolysis.
The DC4 design is suitable for use with inorganic chlorine products
based on isocyanuric acid.
DULCODOS
necessary components mounted on a plate or as a collection of
lose parts for installation on site:
Sensors
n
Controller
n
Metering pumps
n
1
10a
14
11a
12a
13a
9
Pool Comfort metering systems are specifically
®
Pool metering systems are equipped with all the
®
® Pool Comfort (with all options and Beta
12b. Cable, level switch for disinfection
13a. Suction assembly, pH correction
13b. Suction assembly, disinfection
14 Tray for buffer solution
Not shown Multifunctional valve, pH correction
Not shown Multifunctional valve, disinfection
Not shown Metering pump, flocculant
Not shown Cable, level switch, flocculant
Not shown Suction assembly, flocculant
* To be fitted by the customer. These
components are ready for subsequent
installation, but are supplied separately
to avoid damage in transit.
About this product
10b
11b
12b
13b
