10 Other Tools
3) Select [Insert dot matrix] from the [Edit] menu.

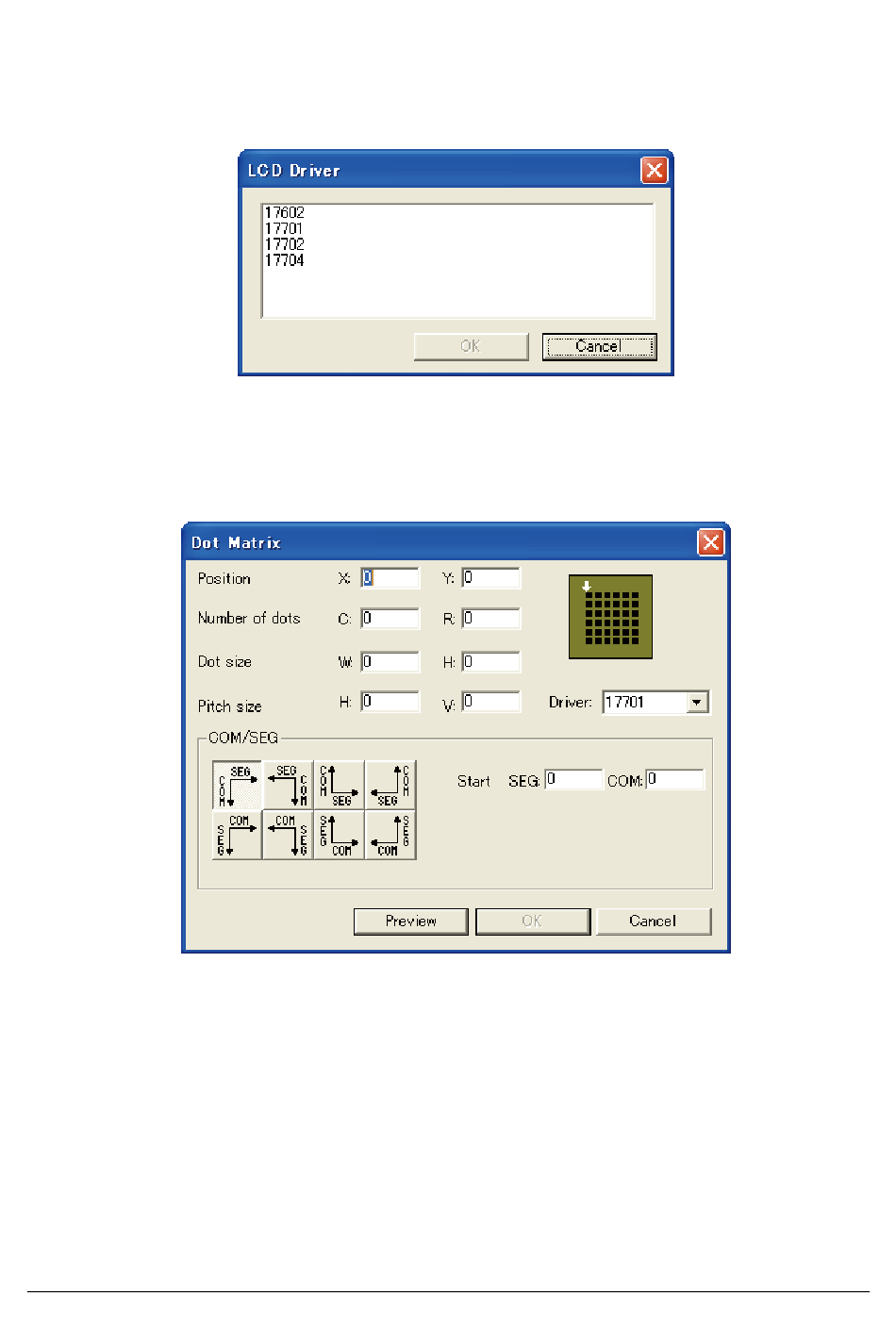

If no LCD driver is set, the [LCD Driver] dialog box appears.
From the list, select the model for development, then click the [OK] button.
* The [LCD Driver] dialog box appears only when no LCD driver has been set.
When an already produced LCD file is read or when the [Start LcdUtility] button of the IDE is clicked while a project is
selected by the IDE, an LCD driver is already set and this dialog box does not appear.
Note: Once set, an LCD driver cannot be changed. Be extremely careful when setting the LCD driver.
4) The [Dot matrix] dialog box appears.
