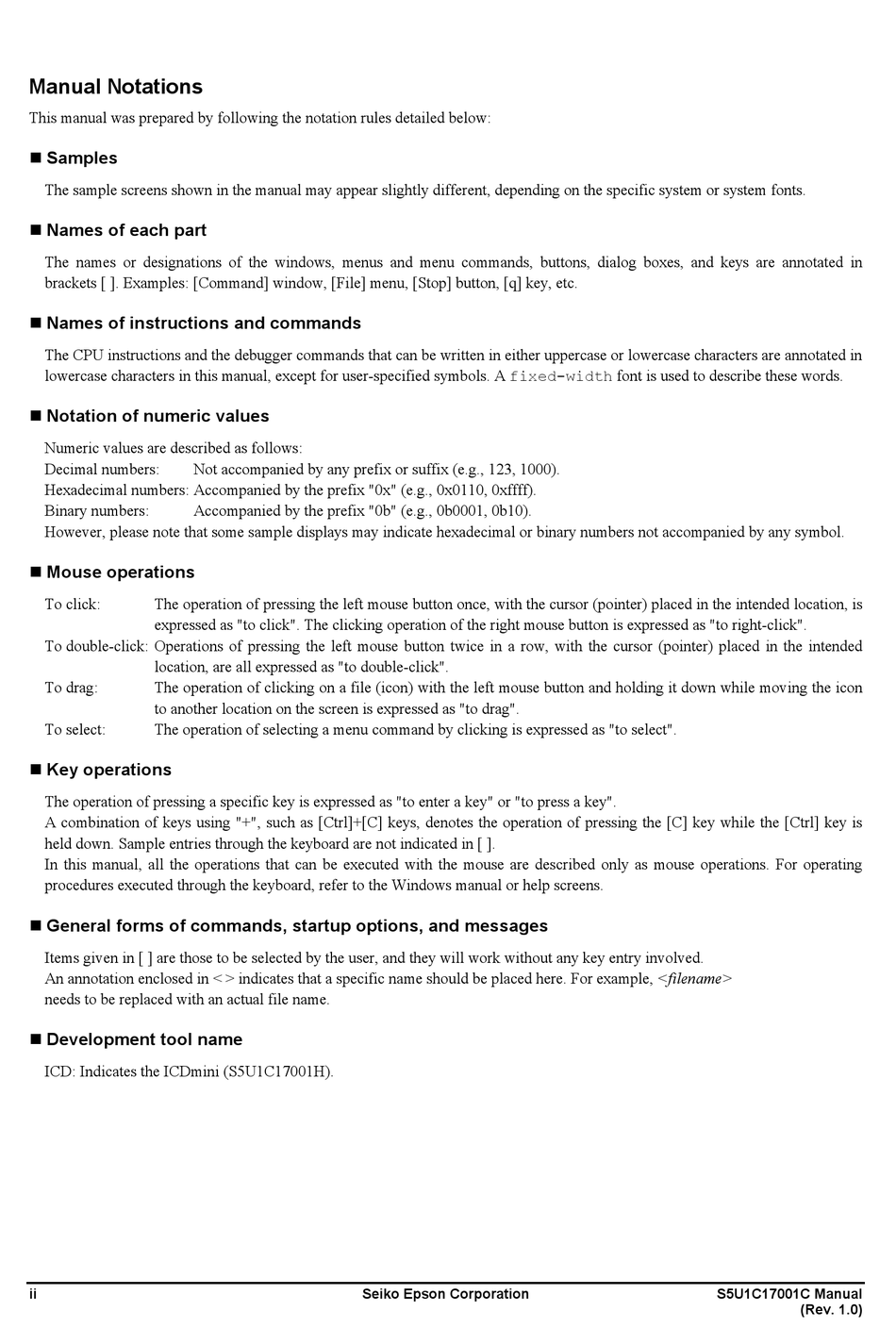

Manual Notations
This manual was prepared by following the notation rules detailed below:
 Samples
The sample screens shown in the manual may appear slightly different, depending on the specific system or system fonts.
 Names of each part
The names or designations of the windows, menus and menu commands, buttons, dialog boxes, and keys are annotated in
brackets [ ]. Examples: [Command] window, [File] menu, [Stop] button, [q] key, etc.
 Names of instructions and commands
The CPU instructions and the debugger commands that can be written in either uppercase or lowercase characters are annotated in
lowercase characters in this manual, except for user-specified symbols. A fixed-width font is used to describe these words.
 Notation of numeric values
Numeric values are described as follows:
Decimal numbers: Not accompanied by any prefix or suffix (e.g., 123, 1000).
Hexadecimal numbers: Accompanied by the prefix "0x" (e.g., 0x0110, 0xffff).
Binary numbers: Accompanied by the prefix "0b" (e.g., 0b0001, 0b10).
However, please note that some sample displays may indicate hexadecimal or binary numbers not accompanied by any symbol.
 Mouse operations
To click: The operation of pressing the left mouse button once, with the cursor (pointer) placed in the intended location, is
expressed as "to click". The clicking operation of the right mouse button is expressed as "to right-click".
To double-click: Operations of pressing the left mouse button twice in a row, with the cursor (pointer) placed in the intended
location, are all expressed as "to double-click".
To drag: The operation of clicking on a file (icon) with the left mouse button and holding it down while moving the icon
to another location on the screen is expressed as "to drag".
To select: The operation of selecting a menu command by clicking is expressed as "to select".
 Key operations
The operation of pressing a specific key is expressed as "to enter a key" or "to press a key".
A combination of keys using "+", such as [Ctrl]+[C] keys, denotes the operation of pressing the [C] key while the [Ctrl] key is
held down. Sample entries through the keyboard are not indicated in [ ].
In this manual, all the operations that can be executed with the mouse are described only as mouse operations. For operating
procedures executed through the keyboard, refer to the Windows manual or help screens.
 General forms of commands, startup options, and messages
Items given in [ ] are those to be selected by the user, and they will work without any key entry involved.
An annotation enclosed in < > indicates that a specific name should be placed here. For example, <filename>
needs to be replaced with an actual file name.
 Development tool name
ICD: Indicates the ICDmini (S5U1C17001H).
