Input/Output files

 Input files

CPU configuration file
File format: Text file
File name: essim17.ini (fixed)
This file contains the hardware configuration for the target model to be simulated in the ES-Sim17.
Description:
Note: Do not modify this file, as the ES-Sim17 may not run normally.
User setting file
File format: Text file
File name: essim17_user.ini (fixed)
Description: This file contains the values that can be configured by the user.
The following settings are possible.
•
OSC1 and OSC3 clock frequency
•
LCD file path
Example: ;;UserSetting
LCD panel setting file
File format: Binary file
File name:
<filename>.lcd
Description: This is an LCD panel setting file for ES-Sim17 created by LcdUtil17.
ES-Sim17 can simulate dot-matrix and segment LCDs.
8-66
CPU configuration file User setting file
essim17.ini
Debugger
gdb

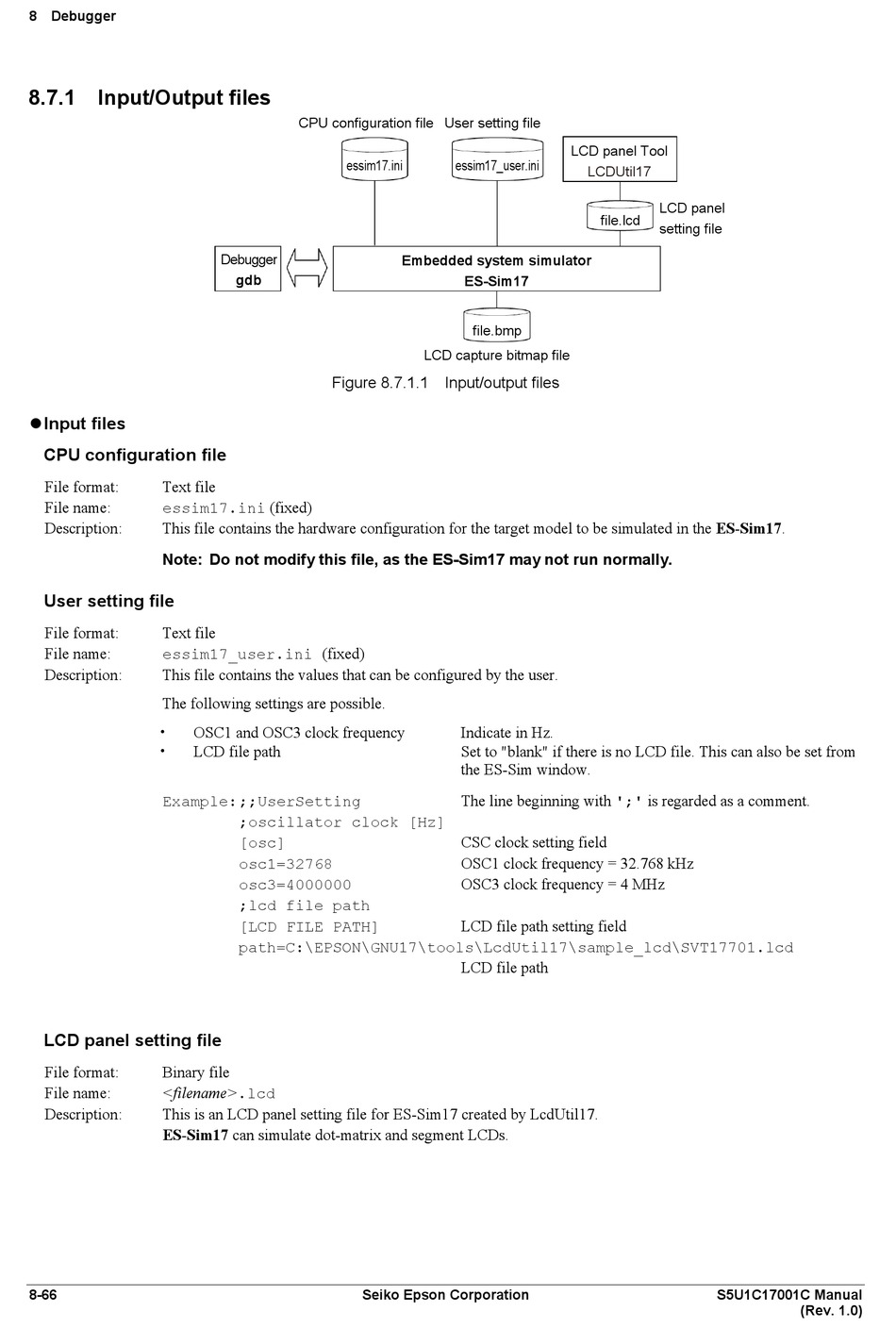

Figure 8.7.1.1 Input/output files
;oscillator clock [Hz]
[osc]
osc1=32768
osc3=4000000
;lcd file path
[LCD FILE PATH]
path=C:\EPSON\GNU17\tools\LcdUtil17\sample_lcd\SVT17701.lcd
