Product Overview; Enclosure Type Overview - Danfoss VLT FC 360 Design Manual

Product Overview

2 Product Overview
2 2

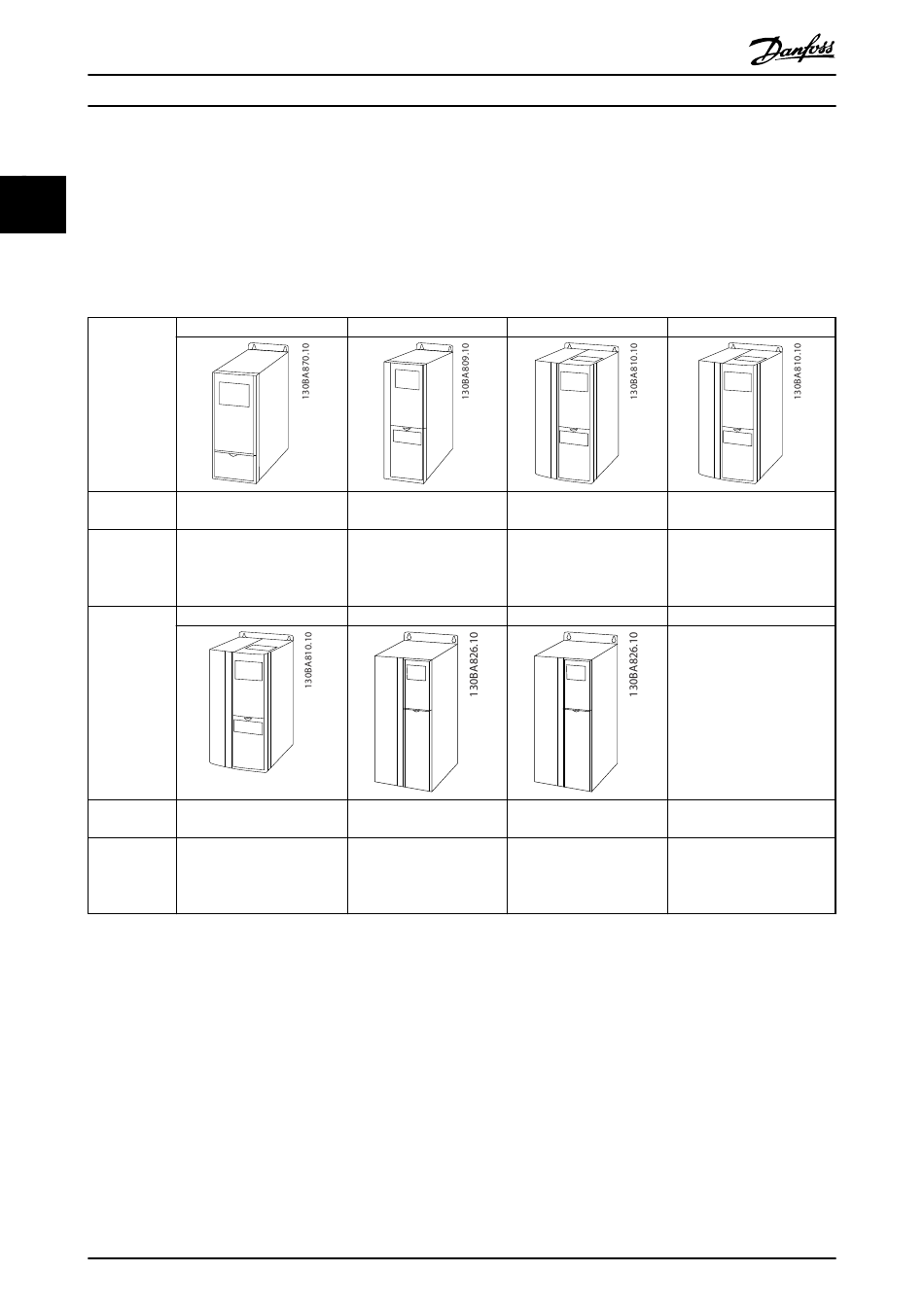

2.1 Enclosure Type Overview

Frame size depends on power range.
Frame size
Enclosure
protection
High overload
rated power -
160% overload
1)
torque
Frame size
Enclosure
protection
High overload
rated power -
160% overload
torque
Table 2.1 Enclosure Types
1)
Sizes 11-75 kW also have normal overload: 110% overload
Sizes 11-22 kW high overload types: 150% overload
12
®
VLT
J1
IP20
0.37-2.2 kW (380-480 V) 3.0-5.5 kW (380-480 V)
J5
IP20
18.5-22 kW (380-480 V) 30-45 kW (380-480 V)
MG06B202 - VLT
AutomationDrive FC 360 Design Guide
J2
IP20
7.5 kW (380-480 V)
J6
IP20
55-75 kW (380-480 V)
®
is a registered Danfoss trademark
J3 J4
IP20 IP20
11-15 kW (380-480 V)
J7
IP20
