In the first moment, the EXIT field is marked (the message is blinking). Pressing the SET key will cause returning
to the PROG → CURVES fold, without making changes in the acceleration characteristics.
After setting the time the device will proceed to setting the speed of the given section of characteristics (the set
value TIME + SPEED blinks). With UP and DOWN keys one should set the speed value and press the SET key.
The set speed value is limited by the maximum speed of the rotor connected with the edited program.
After the end of programming the speed, the graphical displaying of the section (of all sections) will occur
TIME+SPEED of the user's acceleration characteristics.
After programming the section 1, there is a possibility to program the next section, number 2:
The minimal speed of the next section of acceleration characteristics is equal to the speed of the already
programmed previous section.
Repeated attempt to program already programmed sections of the acceleration characteristics will cause beginning
of programming of the whole acceleration characteristics once again (with settings of the program loaded to edition.
Deceleration characteristic
After choosing CONFIG → CURVES → DECELERATION the window of the characteristics wizard will be displayed:
Default deceleration characteristics connected with the loaded program will be displayed on the screen.
Creating of deceleration characteristics takes place a little differently than acceleration characteristics
In the first moment, the EXIT field is marked (the message is blinking). Pressing the SET key will cause returning
to the PROG → CURVES, without making changes in the deceleration characteristics.
14 | Centrifuge user manual

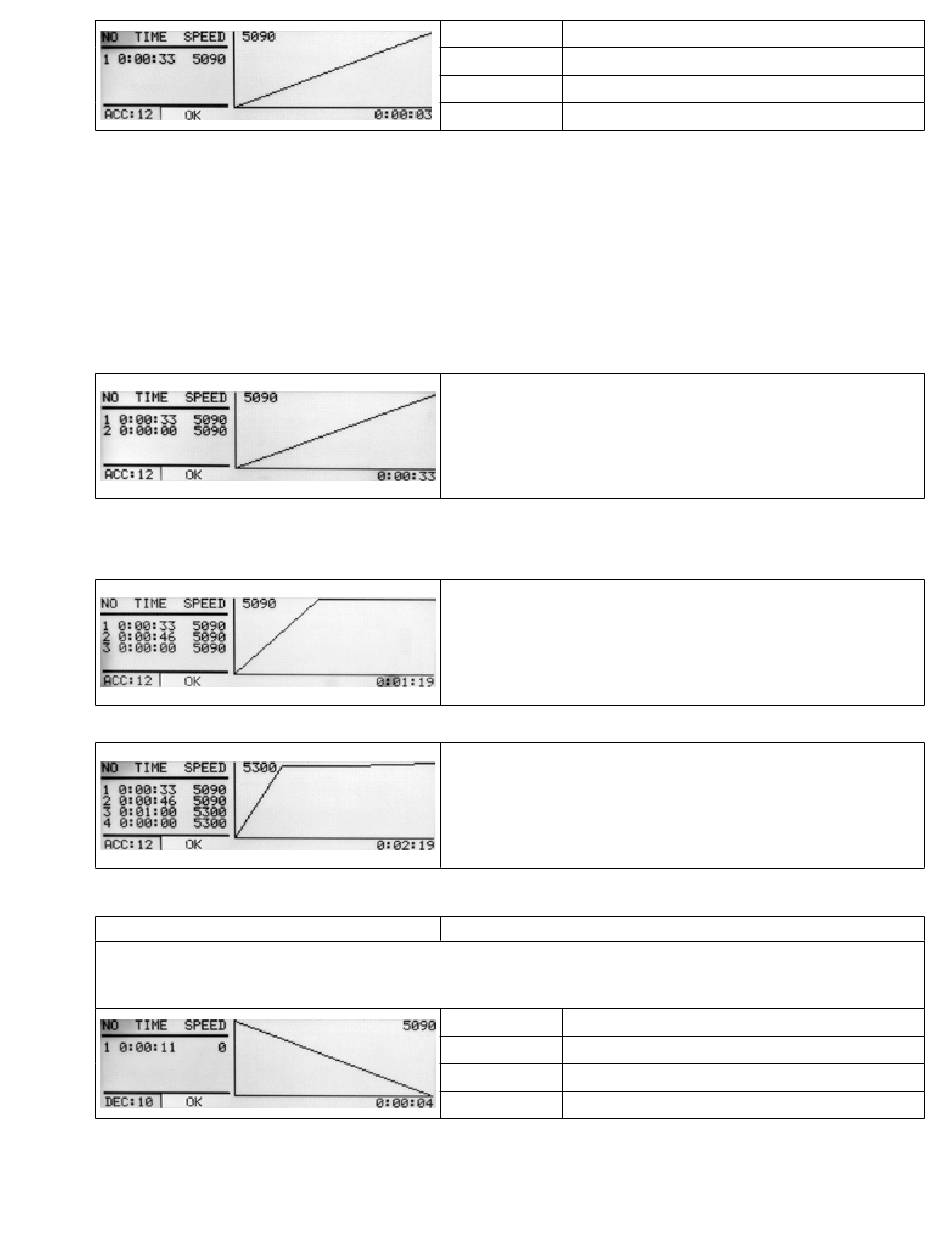

NO. section no. (max. 4)
TIME total acceleration time
SPEED final RPM
ACC:12 characteristic's no. (10-19)
„1" SECTION
„2" SECTION
Programming of new section possible (the whole line 2 is blinking).
Programming as in the case of section 1. It is possible also to
abandon the programming: with UP/DOWN keys choose the OK
option (it will blink) and save (press the SET) only the accelera-
tion characteristics of 1 section with TIME/SPEED parameters
described in the line 1.
„3" SECTION
Programming of new section possible (the whole line 3 is blinking).
Programming as in the case of section 1. It is possible also to
abandon the programming: with UP/DOWN keys choose the EXIT
option (it will blink) and save (press the SET) only the accelera-
tion characteristics of 2 section with TIME/SPEED parameters
described in the line 1 and 2.
„4" SECTION
Programming of new section possible (the whole line 4 is blink-
ing). Programming as in the case of section 1. It is possible also
to abandon the programming: with ▲▼ keys choose the OK
option (it will blink) and save (press the SET) only the accelera-
tion characteristics of 3 section with TIME/SPEED parameters
described in the line 1, 2 and 3.
PROG / CURVES / DECELERATION
NO. section no. (max. 4)
TIME total acceleration time
SPEED final RPM
DEC:10 characteristic's no. (10-19)
„1" SECTION
