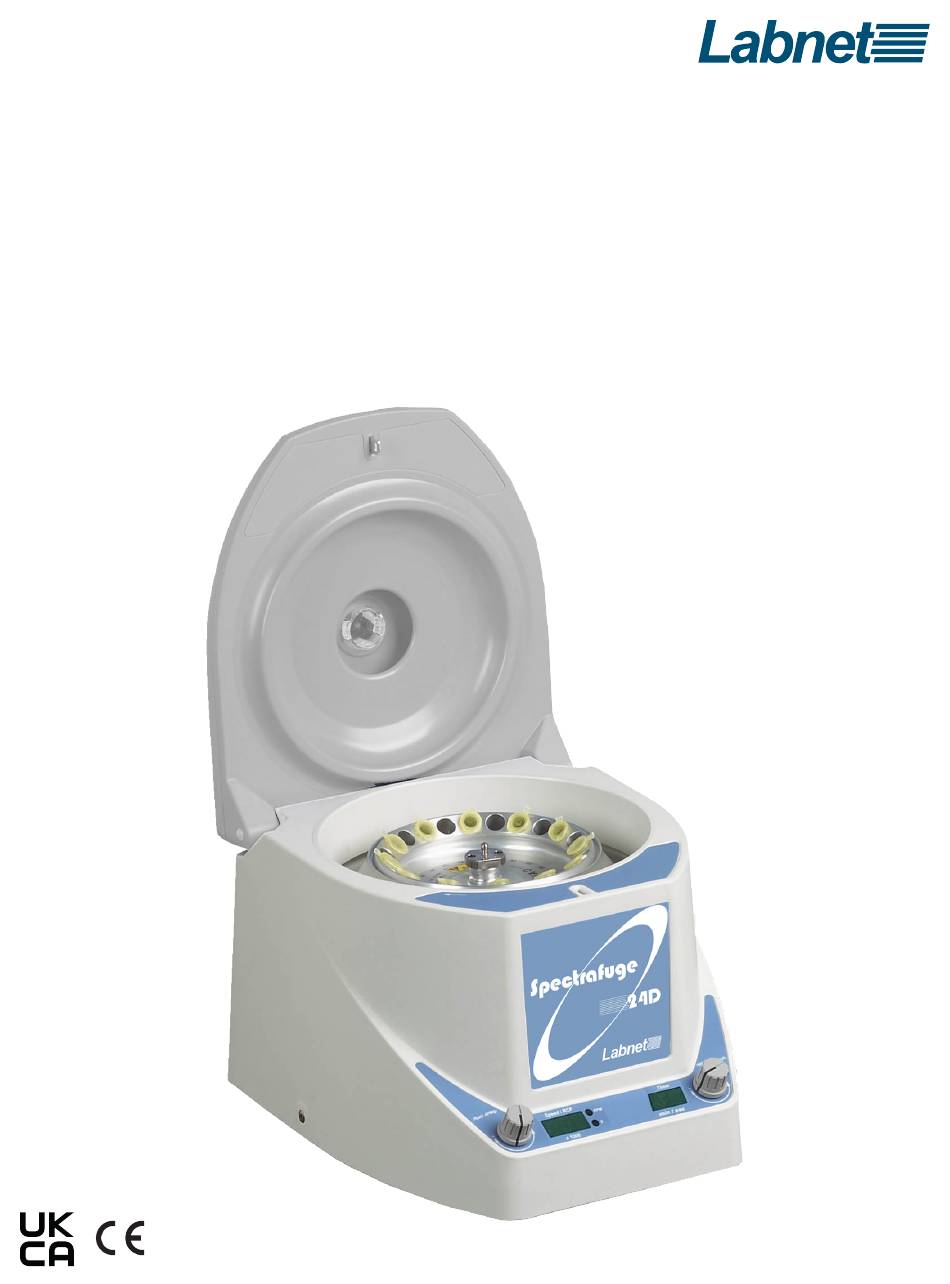

- Page 1 Labnet Spectrafuge ™ Microcentrifuge Instruction Manual Catalog Numbers: C2400 C2400-100V C2400-230V...
-
Page 2: Table Of Contents
Table of Contents 1.0 Introduction ................. . .1 2.0 Symbols and Conventions . -
Page 3: Introduction

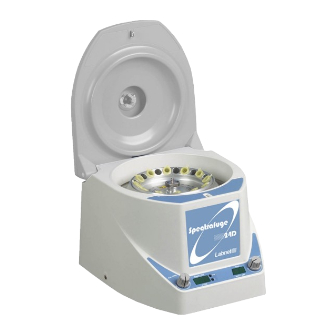

The Labnet Spectrafuge™ 24D Microcentrifuge is a small benchtop centrifuge designed for separation of various research samples. The motor is brushless and requires no routine maintenance. The Spectrafuge 24D is supplied with an 24 x 1.5/2.0 mL rotor for micro- samples. -
Page 4: Technical Specifications
5°C to 40°C (up to 80% RH at 31°C, decreasing linearly to 50% RH at 40°C) Temperature Range Protection Class IP21 The Labnet Spectrafuge™ 24D Microcentrifuge is designed to be safe at least when operated under the following conditions: Indoor use only Altitude up to 2,000 meters ... -
Page 5: Installation
7.3 Removing and Installing the Angle Rotor The Spectrafuge 24D Microcentrifuge comes complete with a standard 24-place rotor installed. To remove the rotor for cleaning, remove the rotor securing screw from the motor shaft by turning the screw counterclockwise, using the rotor wrench. Lift the rotor directly upward in a straight vertical motion. -
Page 6: Overloading Rotors
The speed (rpm or g-force) can be selected from 500 to 13,300 rpm in 100 rpm increments or from 100 to 16,300 x g with the knob on the right. Rpm or g-force display is set by pressing the knob. Turn the knob to increase or decrease the value. LABNET SPECTRAFUGE 24D MICROCENTRIFUGE... -
Page 7: Selection Of Operating Time, Momentary Operation, Start/Stop
8.6 Selection of Operating Time, Momentary Operation, Start/Stop Operating time can be selected from 0.5 min. to 30 min. by turning the timer knob on the left. The time can be set in 0.5-minute increments from 0 to 10 minutes and in 1-minute increments from 10 to 30 minutes. After 30 minutes, the display shows “--” which indicates continuous run. -
Page 8: Troubleshooting Guide
Should you have a question about the operation of the Labnet Spectrafuge™ 24D Microcentrifuge or if service is required, contact Corning Customer Service. Do not send in a unit for service without first calling to obtain a repair authorization number. Should the unit require return for service, it should be properly packed to avoid damage. -
Page 9: Determination Of G-Values
11.0 Determination of G-values The centrifuging radius of the 1.5/2.0 mL rotor is 8.23 cm. The Labnet Spectrafuge™ 24D Microcentrifuge has an automatic g-force conversion program, so g-values are automatically calculated and can be displayed on the control panel, for this centrifuging radius. -
Page 10: Limited Warranty
(WEEE), this product is marked with the crossed-out wheeled bin and must not be disposed of with domestic waste. Consequently, the buyer shall follow the instructions for reuse and recycling of waste electronic and electrical equipment (WEEE) provided with the products and available at www.corning.com/weee. LABNET SPECTRAFUGE 24D MICROCENTRIFUGE... - Page 11 To request certificates, please contact us at www.labnetlink.com. Warranty/Disclaimer: Unless otherwise specified, all products are for research use or general laboratory use only.* Not intended for use in diagnostic or therapeutic procedures. Not for use in humans. These products are not intended to mitigate the presence of microorganisms on surfaces or in the environment, where such organisms can be deleterious to humans or the environment.
