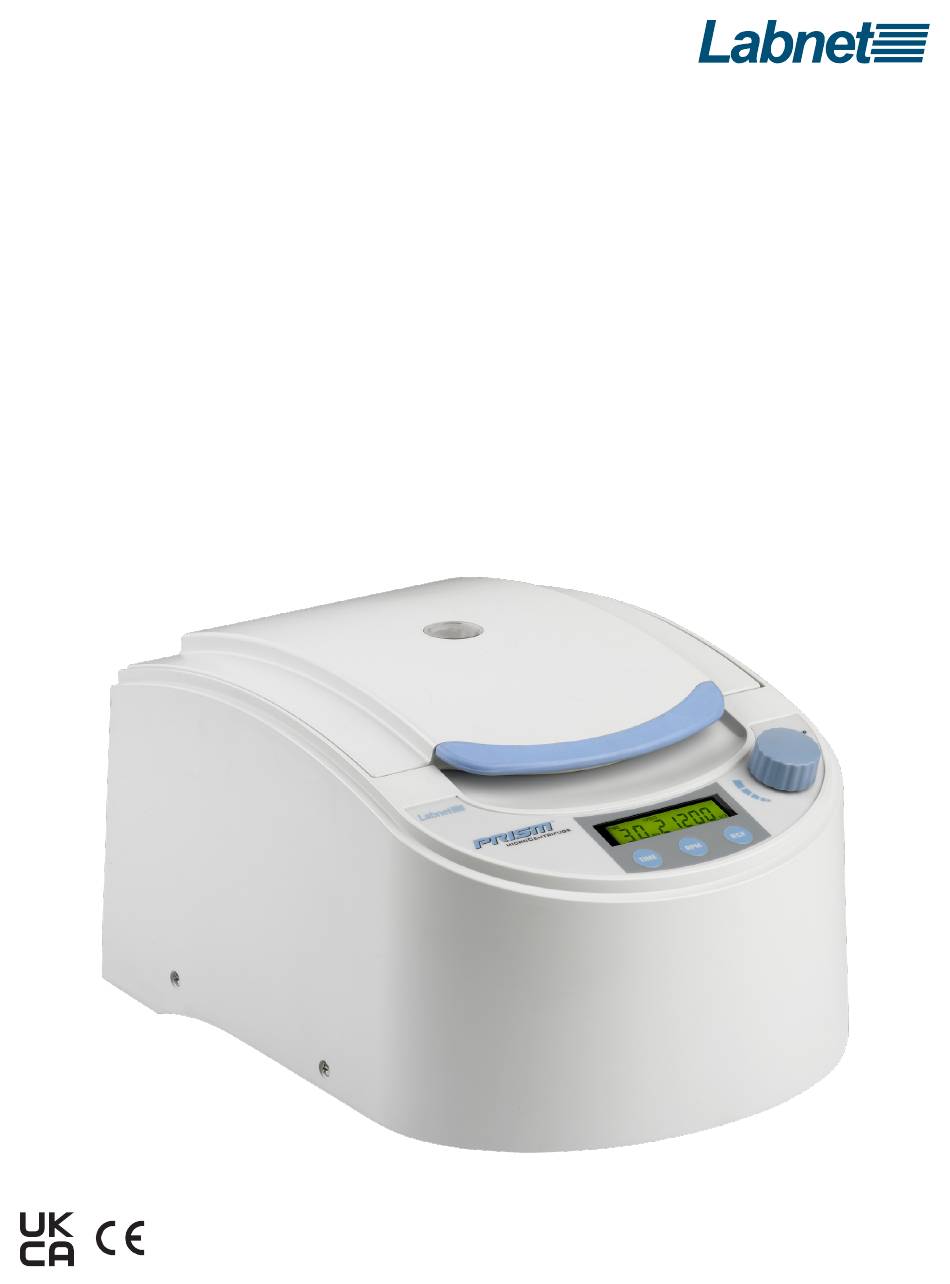

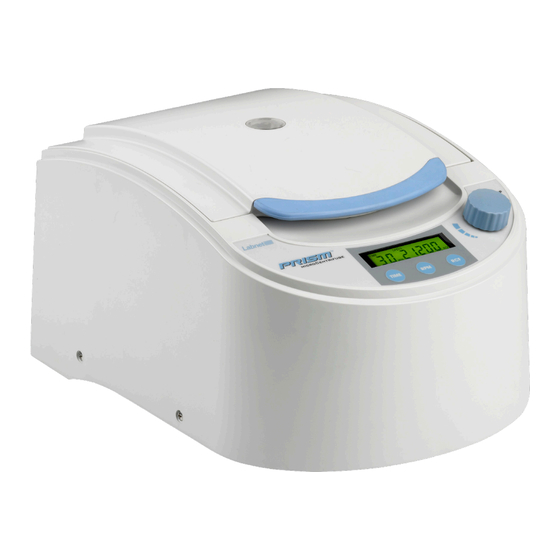

- Page 1 Labnet Prism™ Microcentrifuge Instruction Manual Catalog Numbers: C2500 C2500-230V C2500-100V...
-
Page 2: Table Of Contents
Table of Contents 1.0 Introduction ................. . .1 2.0 Safety Information . -
Page 3: Introduction
2.0 Safety Information Before using the Labnet Prism microcentrifuge for the first time, please read this entire manual carefully. If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. -
Page 4: Specifications
5°C to 40°C (up to 80% RH at 31°C, decreasing linearly to 50% RH at 40°C) Protection Class IP21 The Labnet Prism™ microcentrifuge is designed to be safe at least when operated under the following conditions: Indoor use only ... -
Page 5: Installation Of Rotors And Rotor Maintenance
6.0 Installation of Rotors and Rotor Maintenance 6.1 Rotors and Accessories The following accessories are included or available for the Labnet Prism™ microcentrifuge: Angle Rotor for 24 x 1.5 mL/2.0 mL Tubes (included) Cat. No. 24D-RTR Tube Measurement 1.5 mL/2.0 mL (10 x 40 mm) -
Page 6: Rotor Maintenance
6.3 Removing and Installing the Angle Rotor The Labnet Prism™ microcentrifuge comes complete with a standard 24-place rotor installed. To remove the rotor for cleaning, using the rotor wrench remove the rotor securing screw from the motor shaft by turning the screw counterclockwise. Lift the rotor directly upward in a straight vertical motion. -
Page 7: Operation
Doing so is dangerous and could damage the centrifuge. 7.5 Speed Selection Figure 2. Labnet Prism™ microcentrifuge control panel layout. The speed (rpm or g-force) can be selected from 500 to 15,000 rpm in 100 rpm increments or from 100 to 21,200 x g with the control knob. -
Page 8: Service And Maintenance
Should you have a question about the operation of the Labnet Prism™ Microcentrifuge or if service is required, contact Corning Customer Service. Do not send in a unit for service without first calling to obtain a repair authorization number. Should the unit require return for service, it should be properly packed to avoid damage. -
Page 9: Determination Of G-Values
10.0 Determination of G-values The centrifuging radius of the 1.5/2.0 mL rotor is 8.23 cm. The Labnet Prism™ microcentrifuge has an automatic g-force conversion program, so g-values are automatically calculated and can be displayed on the control panel, for this centrifuging radius. If adapters or smaller tubes are used, the centrifuging radius changes as does the g-force. -
Page 10: Limited Warranty
(WEEE), this product is marked with the crossed-out wheeled bin and must not be disposed of with domestic waste. Consequently, the buyer shall follow the instructions for reuse and recycling of waste electronic and electrical equipment (WEEE) provided with the products and available at www.corning.com/weee. LABNET PRISM MICROCENTRIFUGE... - Page 12 To request certificates, please contact us at www.labnetlink.com. Warranty/Disclaimer: Unless otherwise specified, all products are for research use or general laboratory use only.* Not intended for use in diagnostic or therapeutic procedures. Not for use in humans. These products are not intended to mitigate the presence of microorganisms on surfaces or in the environment, where such organisms can be deleterious to humans or the environment.
