2.2.4 Control Wiring

2 2
Access
•

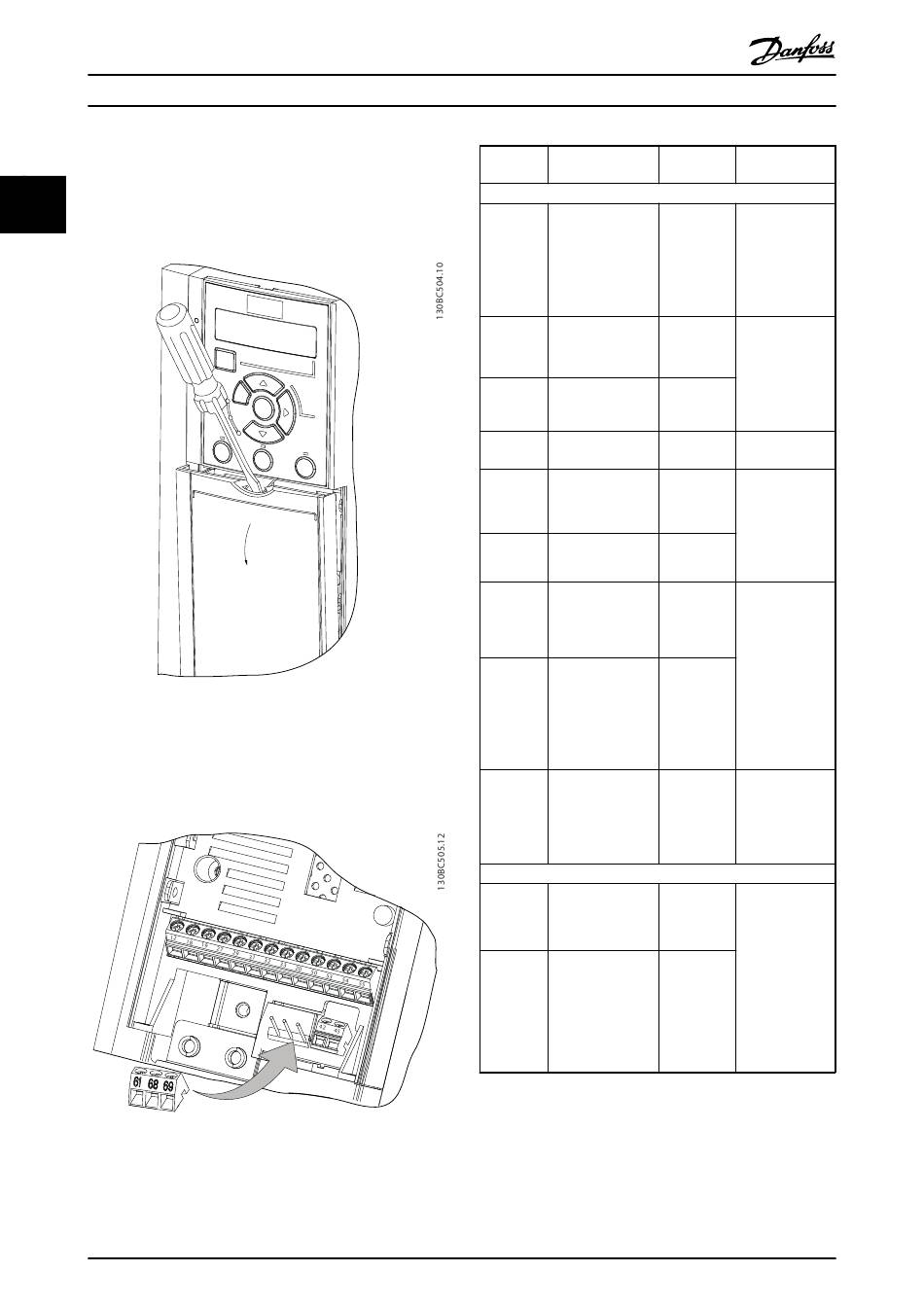

Remove the cover plate with a screwdriver. See
Illustration 2.6.
Illustration 2.6 Control Wiring Access for Enclosure Sizes J1–J7
Control Terminal Types
Illustration 2.7 shows the frequency converter control
terminals. Terminal functions and default settings are
summarised in Table 2.2.
Illustration 2.7 Control Terminal Locations
See chapter 4.2 General Specifications for terminal ratings
details.
16
Design Guide
Terminal
Danfoss A/S © 09/2014 All rights reserved.
Default
Parameter
setting
Digital I/O, Pulse I/O, Encoder
12 – +24 V DC
5-10 Terminal 18
18 [8] Start
Digital Input
5-11 Terminal 19 [10]
19
Digital Input Reversing
5-16 Terminal 31 [0] No
31
Digital Input operation
5-14 Terminal 32 [0] No
32
Digital Input operation
5-15 Terminal 33 [0] No
33
Digital Input operation
5-12 Terminal 27 DI [2] Coast
Digital Input inverse
27
5-30 Terminal 27 DO [0] No
Digital Output operation
DI [14] Jog
5-13 Terminal 29
DO [0] No
Digital Input
operation
29
5-31 Terminal 29
Digital Output
20 –
Analog inputs/outputs
6-91 Terminal 42 [0] No
42
Analog Output operation
6-71 Terminal 45 [0] No
45
Analog Output operation
Description
24 V DC supply
voltage.
Maximum
output current is
100 mA for all
24 V loads.
Digital inputs.
Digital input
Digital input, 24
V encoder.
Terminal 33 can
be used for
pulse input.
Selectable for
either digital
input, digital
output or pulse
output. Default
setting is digital
input.
Terminal 29 can
be used for
pulse input.
Common for
digital inputs
and 0 V
potential for 24
V supply.
Programmable
analog output.
The analog
signal is 0–20
mA or 4–20 mA
at a maximum
of 500 Ω. Can
also be
configured as
digital outputs
MG06B402
