PROGRAMMING AND DEBUGGING INTERFACE

A programming interface is mandatory if In-System Programming of a Z-Wave 700 device is required, i.e., programming while
soldered onto the product PCB. To design in a footprint for the Mini Simplicity header, Silicon Labs recommends using a small 10-
pin 1.27 mm SMD header for both programming and debugging of chips from the Silicon Labs Gecko family.
If a connector is used, the Samtec FTSH-105-01-F-DH surface mounted or Harwin M50-3500542 through-hole male connector is
recommended and can be directly used with the
programmer's perspective is shown in Table 3.1. Refer to [1] for programming instructions.
Pin Name Pin Location
GND 2
VAEM 1
RST 3
VCOM_TX 5
VCOM_RX 4
SWO 6
SWDIO 7
SWCLK 8
PTI_FRAME 9
PTI_DATA 10
INS14487-3 | 2/2019
EFR32ZG14
Applicable

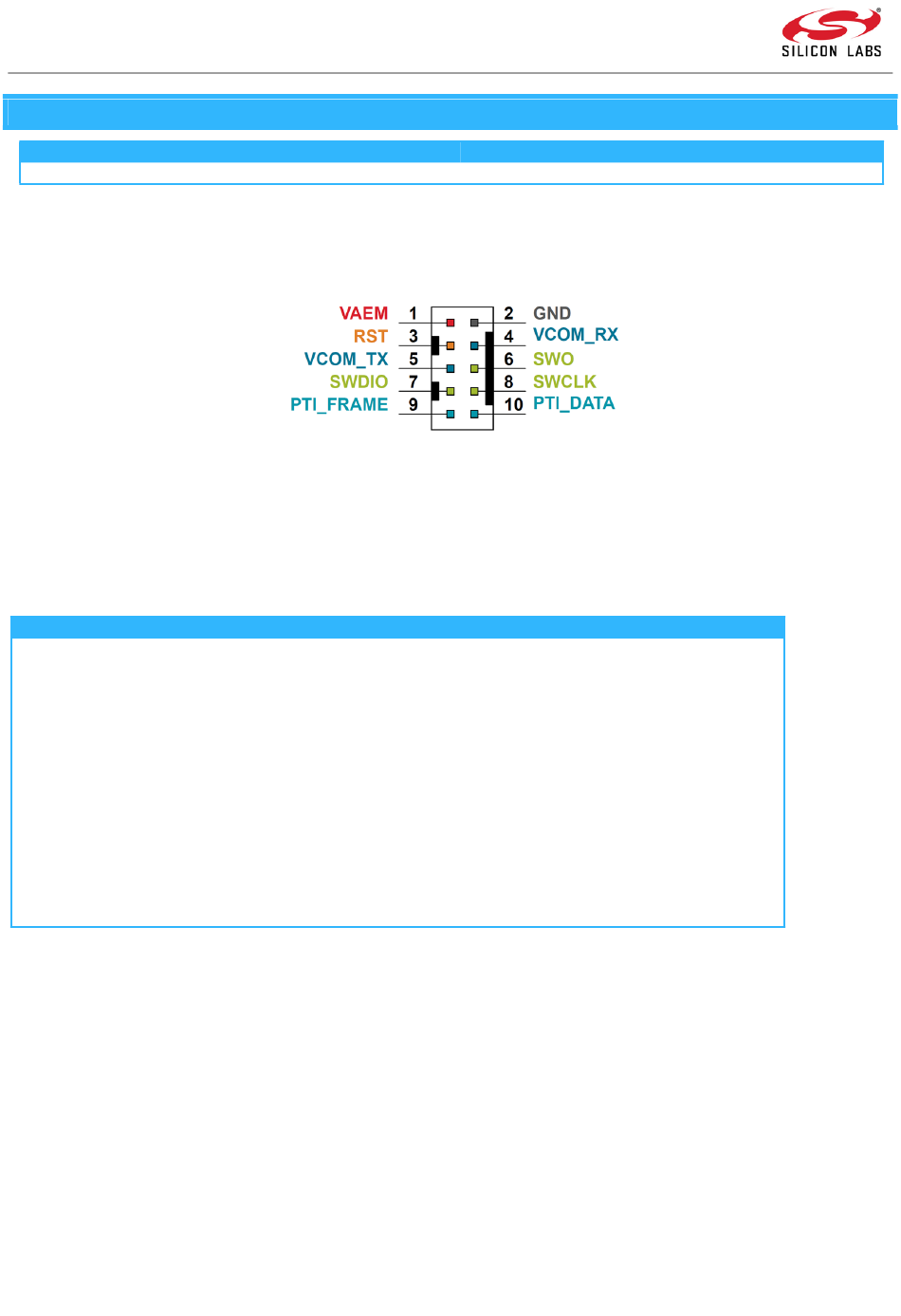

Figure 3.1: Silicon Labs Mini Simplicity Header
BRD8010A STK/WSTK Debug Adapter
Table 3.1: Z-Wave 700 Mini Simplicity Header Pin Functionality
Type
S Common ground between the programmer and Z-Wave 700
device
S Target voltage on the debugged application. Supplied and
monitored by the AEM when power selection switch is in the
"AEM" position
O Driven low by the programmer to place the Z-Wave 700 device in
a reset state
I Receive UART serial data from Z-Wave 700 device
O Transmit UART serial data to Z-Wave 700 device
I Serial Wire Output
I/O Serial Wire Data
O Serial Wire Clock
I Packet Trace Frame Signal
I Packet Trace Data Signal
Function
.
ZGM130S
Applicable
. The functionality of the pins from the
3
