Hardware description

2.1.4 Parts and functions

18

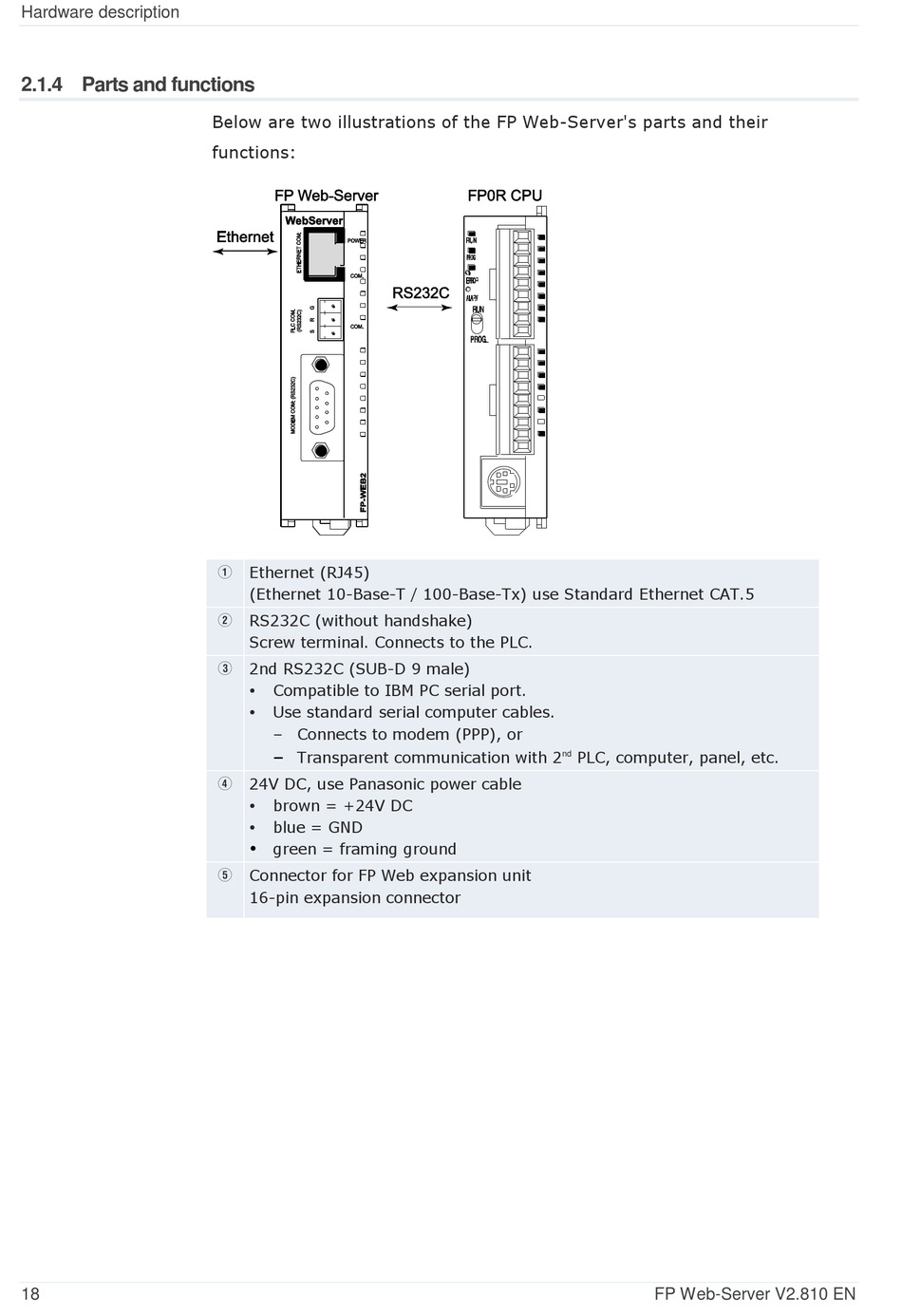

Below are two illustrations of the FP Web-Server's parts and their
functions:
Ethernet (RJ45)
Q
(Ethernet 10-Base-T / 100-Base-Tx) use Standard Ethernet CAT.5
RS232C (without handshake)
W
Screw terminal. Connects to the PLC.
2nd RS232C (SUB-D 9 male)
E
Compatible to IBM PC serial port.

Use standard serial computer cables.

– Connects to modem (PPP), or
–
Transparent communication with 2
24V DC, use Panasonic power cable
R
brown = +24V DC

blue = GND

 green = framing ground
Connector for FP Web expansion unit
T
16-pin expansion connector
PLC, computer, panel, etc.
nd
FP Web-Server V2.810 EN
