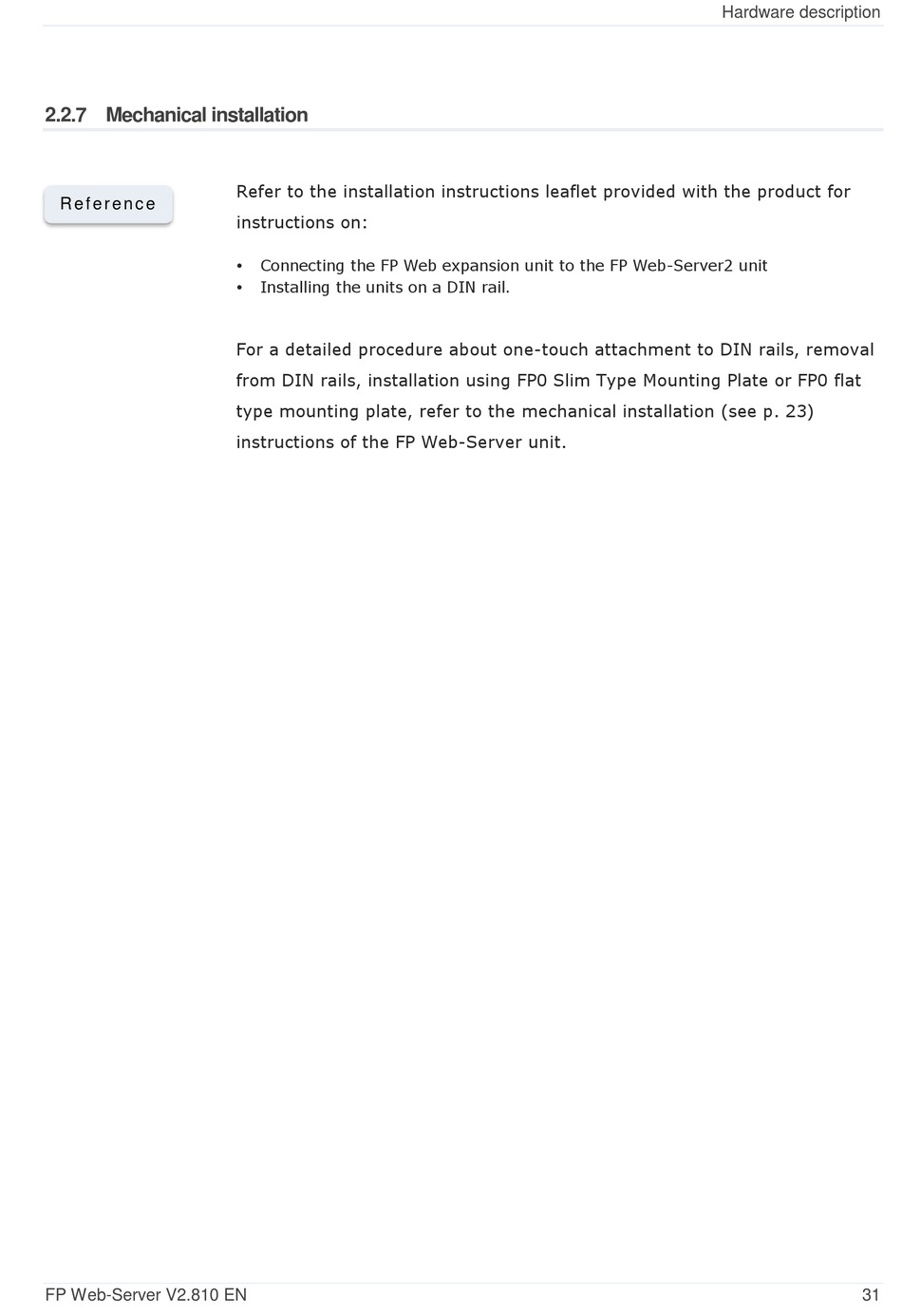

2.2.7 Mechanical installation

R e f e r e n c e
FP Web-Server V2.810 EN
Refer to the installation instructions leaflet provided with the product for
instructions on:
Connecting the FP Web expansion unit to the FP Web-Server2 unit

Installing the units on a DIN rail.

For a detailed procedure about one-touch attachment to DIN rails, removal
from DIN rails, installation using FP0 Slim Type Mounting Plate or FP0 flat
type mounting plate, refer to the mechanical installation (see p. 23)
instructions of the FP Web-Server unit.
