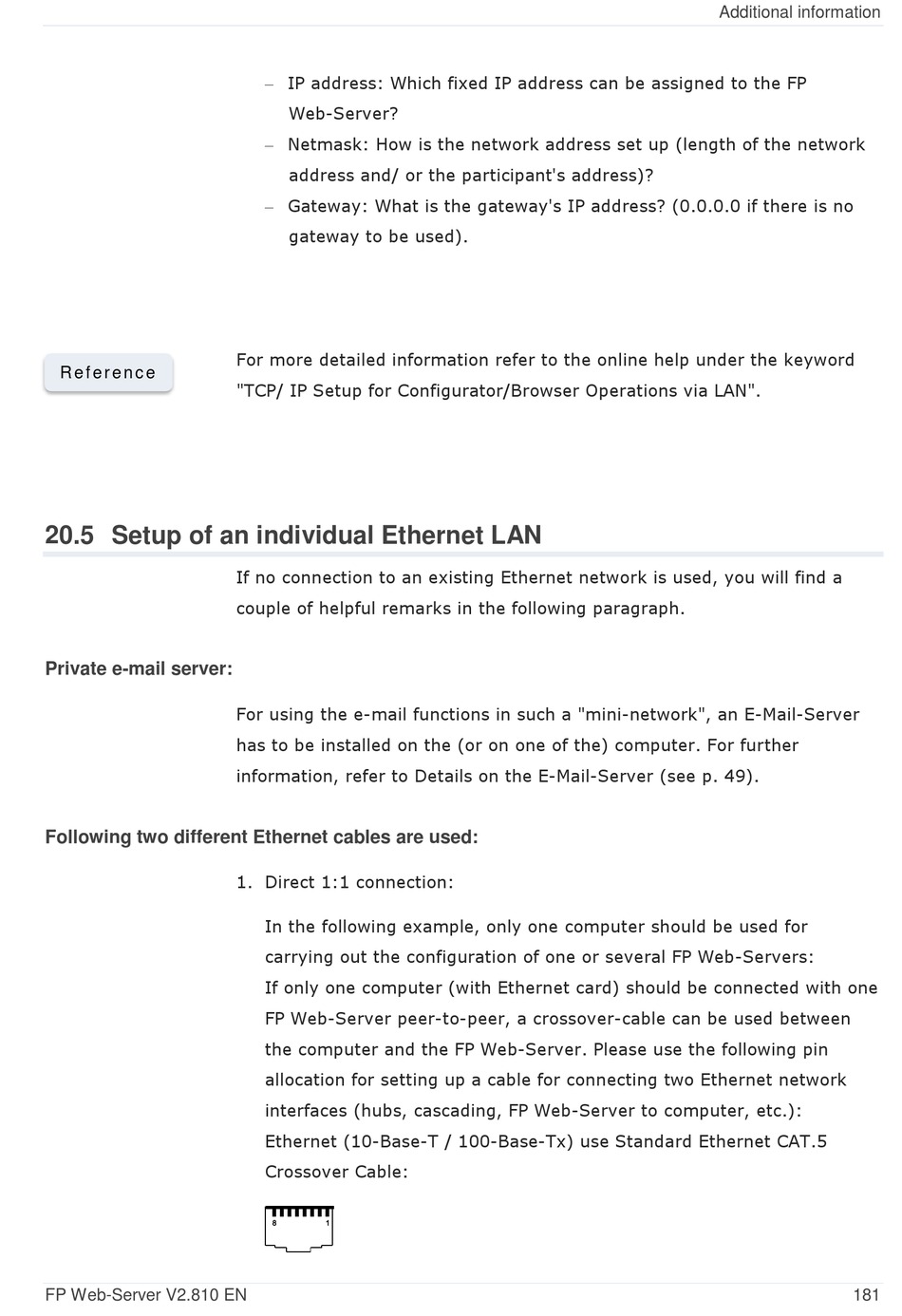

20.5 Setup of an individual Ethernet LAN
Private e-mail server:
Following two different Ethernet cables are used:
FP Web-Server V2.810 EN
IP address: Which fixed IP address can be assigned to the FP
Web-Server?
Netmask: How is the network address set up (length of the network
address and/ or the participant's address)?
Gateway: What is the gateway's IP address? (0.0.0.0 if there is no
gateway to be used).
For more detailed information refer to the online help under the keyword
"TCP/ IP Setup for Configurator/Browser Operations via LAN".
If no connection to an existing Ethernet network is used, you will find a
couple of helpful remarks in the following paragraph.
For using the e-mail functions in such a "mini-network", an E-Mail-Server
has to be installed on the (or on one of the) computer. For further
information, refer to Details on the E-Mail-Server (see p. 49).
1. Direct 1:1 connection:
In the following example, only one computer should be used for
carrying out the configuration of one or several FP Web-Servers:
If only one computer (with Ethernet card) should be connected with one
FP Web-Server peer-to-peer, a crossover-cable can be used between
the computer and the FP Web-Server. Please use the following pin
allocation for setting up a cable for connecting two Ethernet network
interfaces (hubs, cascading, FP Web-Server to computer, etc.):
Ethernet (10-Base-T / 100-Base-Tx) use Standard Ethernet CAT.5
Crossover Cable:
