19.4 Functional Description
19.4.1 Embedded Flash Organization

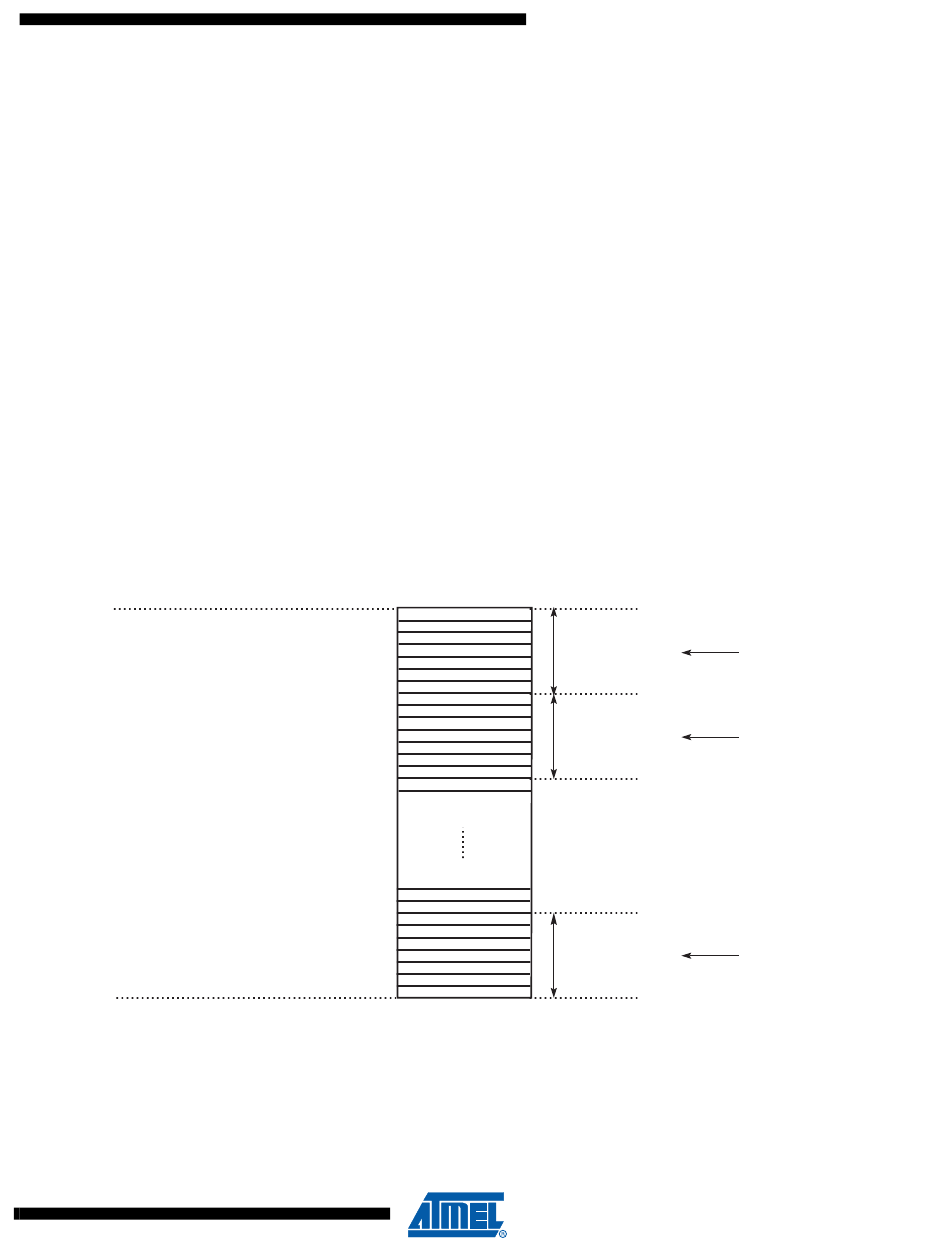

Figure 19-1. Embedded Flash Organization
Start Address + Flash size -1
11100B–ATARM–31-Jul-12
The embedded Flash interfaces directly with the 32-bit internal bus. The embedded Flash is
composed of:
• One memory plane organized in several pages of the same size.
• Two 128-bit or 64-bit read buffers used for code read optimization.
• One 128-bit or 64-bit read buffer used for data read optimization.
• One write buffer that manages page programming. The write buffer size is equal to the page
size. This buffer is write-only and accessible all along the 1 MByte address space, so that
each word can be written to its final address.
• Several lock bits used to protect write/erase operation on several pages (lock region). A lock
bit is associated with a lock region composed of several pages in the memory plane.
• Several bits that may be set and cleared through the Enhanced Embedded Flash Controller
(EEFC) interface, called General Purpose Non Volatile Memory bits (GPNVM bits).
The embedded Flash size, the page size, the lock regions organization and GPNVM bits defini-
tion are described in the product definition section. The Enhanced Embedded Flash Controller
(EEFC) returns a descriptor of the Flash controlled after a get descriptor command issued by the
application (see "Getting Embedded Flash Descriptor" on page
Start Address
SAM4S Series [Preliminary]
Memory Plane
Page 0
Lock Region 0
Page (m-1)
Lock Region 1
Lock Region (n-1)
Page (n*m-1)
333).
Lock Bit 0
Lock Bit 1
Lock Bit (n-1)
