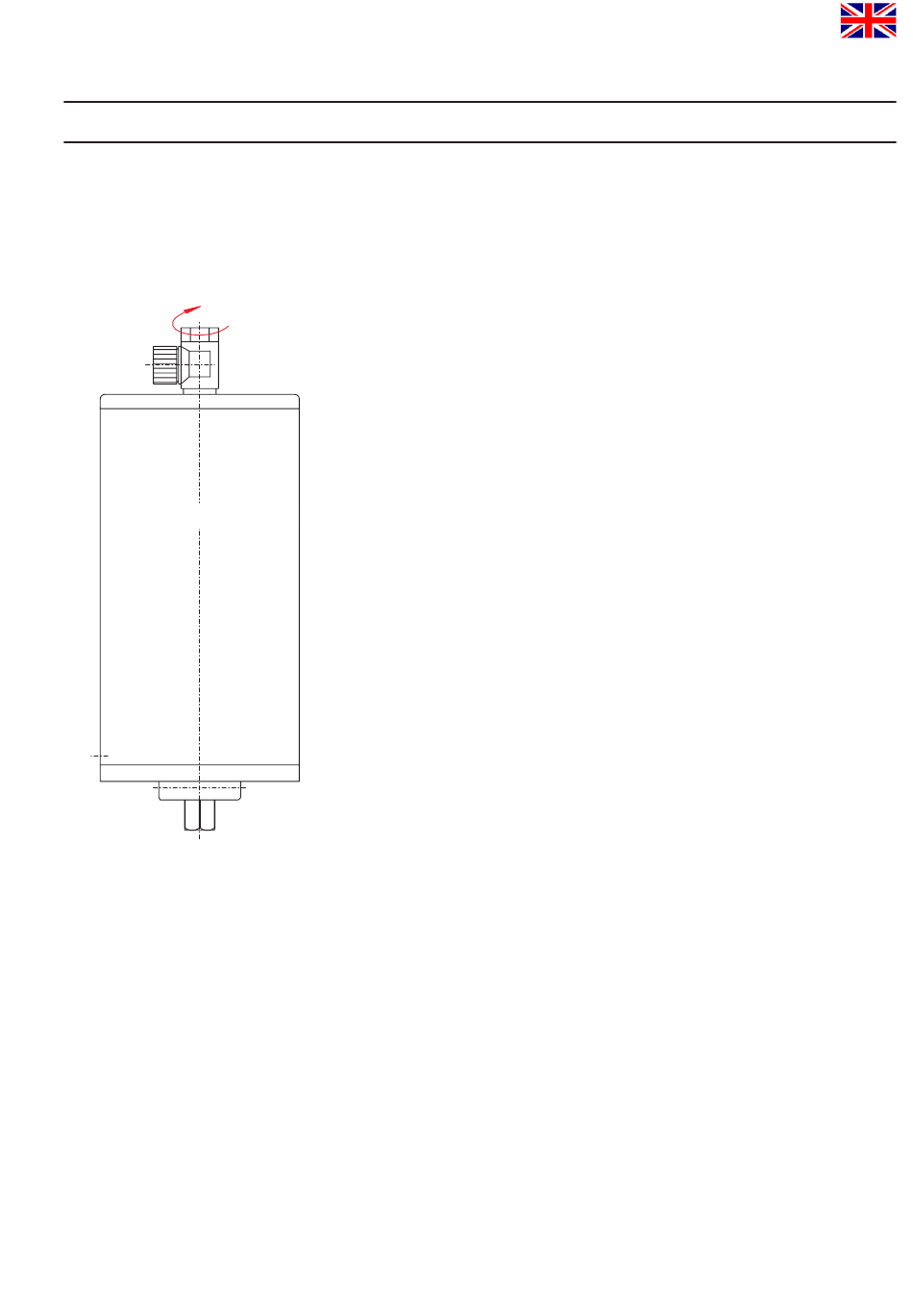

threaded union – G1/8"
slewable
tightening torque 2 Nm
turning actuator K080 F/L
Double Seat Ball Valve DELTA DKR2
ATEX Design
Instruction Manual: UK-0
9. Technical Data
9.1. General terms
- max. line pressure:
- max. operating temperature:
- short-term load:
- throughput cleaning at 3 bar
admission pressure:
- turning actuator
min. control pressure:
max. control pressure:
turning angle:
- air connection (for hose):
threaded angle - G1/8"
slewable:
- spray connection:
- cleaning connection for hose:
9.2. Compressed air quality
-

Compressed air quality:

- Content of solid particles: quality class 3,
- Content of water:
- Content of oil:
The oil applied must be compatible with Polyurethane elastomer
materials.
10 bar
135 °C EPDM, HNBR
*VMQ, *FPM
140 °C EPDM, HNBR
*VMQ, *FPM
*(no steam)
about 5–10 l/min.
6 bar
10 bar
90°
6 x 1
tightening torque
2 Nm
G1/8"
8 x 1
quality class according to ISO 8573-1
max. number of particles per m³
10000 of 0.5 μm < d ≤ 1.0 μm
500 of 1.0 μm < d ≤ 5.0 μm
quality class 3,
max. dew point temperature -20 °C
For installations at lower temperatures
or at higher altitudes, additional
measures must be considered to reduce
the pressure dew point accordingly.
quality class 1,
max. 0.01 mg/m³
