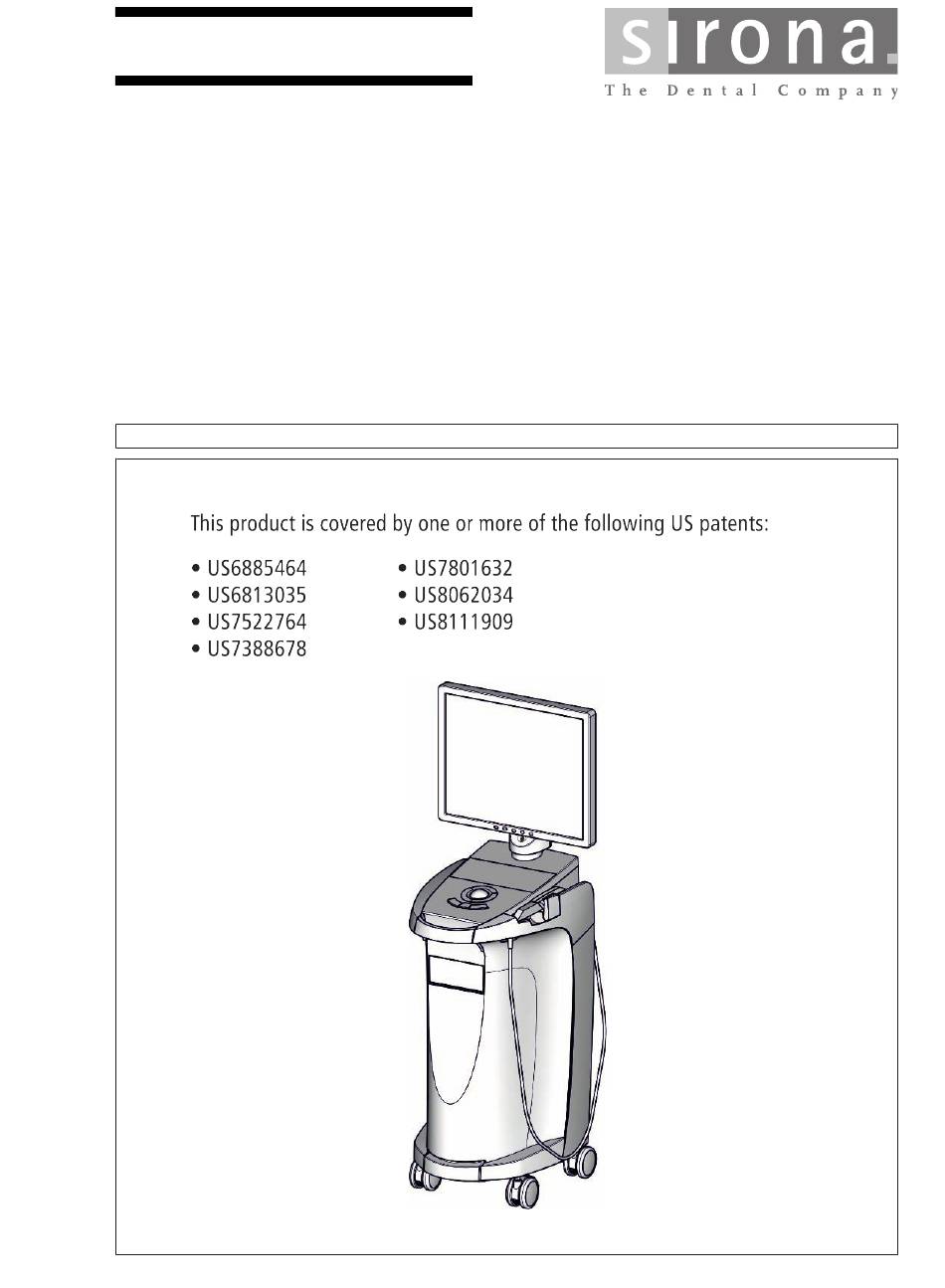

10.2018
New as of:
Sirona Dental CAD/CAM System
CEREC AC
With CEREC Bluecam
Operating Instructions for the acquisition unit (valid for USA)
English
