Timing Channels:
c0 = start channel c2 = no function
c1 = finish channel c3 = no function
ALGE adjustment for the main menu:
Menu 1: Delay Time Start = 1.00 s
Menu 2: Delay Time Finish = 0.30 s
Menu 3: Seconds Mode = OFF
Menu 4: Display Time 1 = 03 s
Menu 6: Display Thousandth = OFF
Menu 7: Info-Display = START
Menu 9: Running Tenth = OFF
Menu 11: Finish Rank = ON
Menu 12: STNO Automatic = OFF
Menu 13: Print Start Time = OFF
Printer: Printing example
0001 ST 11:47:59.996
FT 11:48:02.077
RT 0:02.081
SP km/h 172.99
0002 ST 11:48:07.101
FT 11:48:09.266
RT 0:02.165
SP km/h 166.28

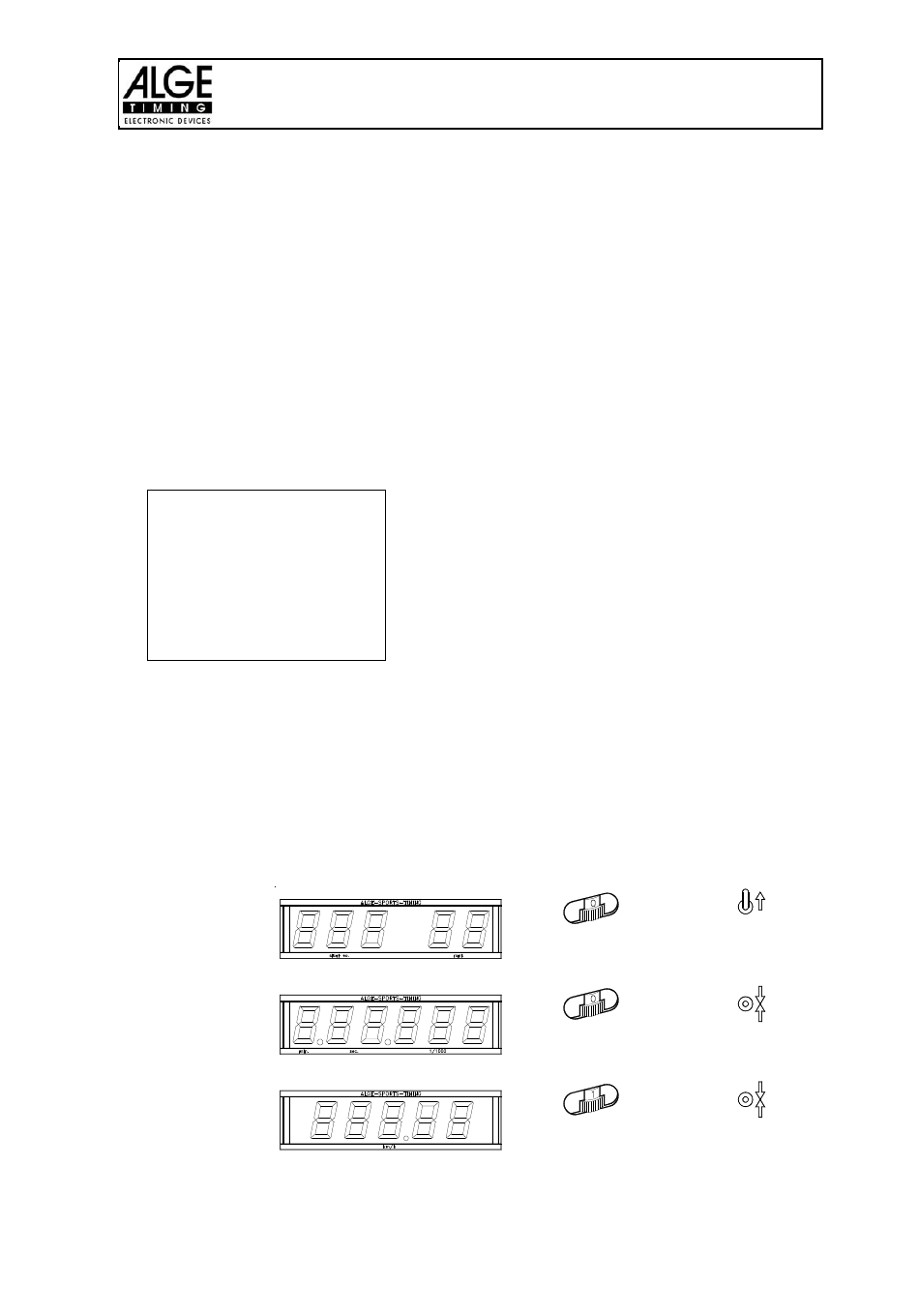

Display Board GAZ4:
You can show the net time (running time), the start number and rank, and the speed on different
display boards. The display board shows always the start number that is shown in the finish display
(8) (on the display board you can show the start number only with three digit and the rank with two
digit).
In the main menu (menu 19, see page 56) it is possible to activate display board channel 2 . If you
activate channel 2 it shows only the run times on the display board.
start number / rank:
time:
speed:
RS 232 interface:
Version: E-19-03-07
TdC 8000
c4 =no function
c5 =no function
Start Time (photocell 1)
Finish Time (photocell 2)
Run Time
Speed in km/h
Start Time (photocell 1)
Finish Time (photocell 2)
Run Time
Speed in km/h
see on page 96, chapter 8.2
c6 = no function
c7 = no function
Menu 14: Print Menus = ON
Menu 15: Print Linefeeds = 0
Menu 16: RS-232 Baudrate = 9600 Bd
Menu 17: RS-232 Run time = OFF
Menu 18: RS-232 Baud rate = 2400
Menu 19: D-Board Channel 2 = RUNNING
Menu 20: Beep = ON
Menu 22: Groups = OFF
Menu 24: Change Race
Menu 25: D-Board-Test
thumb wheel switch
on 0
thumb wheel switch
on 0
thumb wheel switch
on 1
