TdC 8000
Page 83

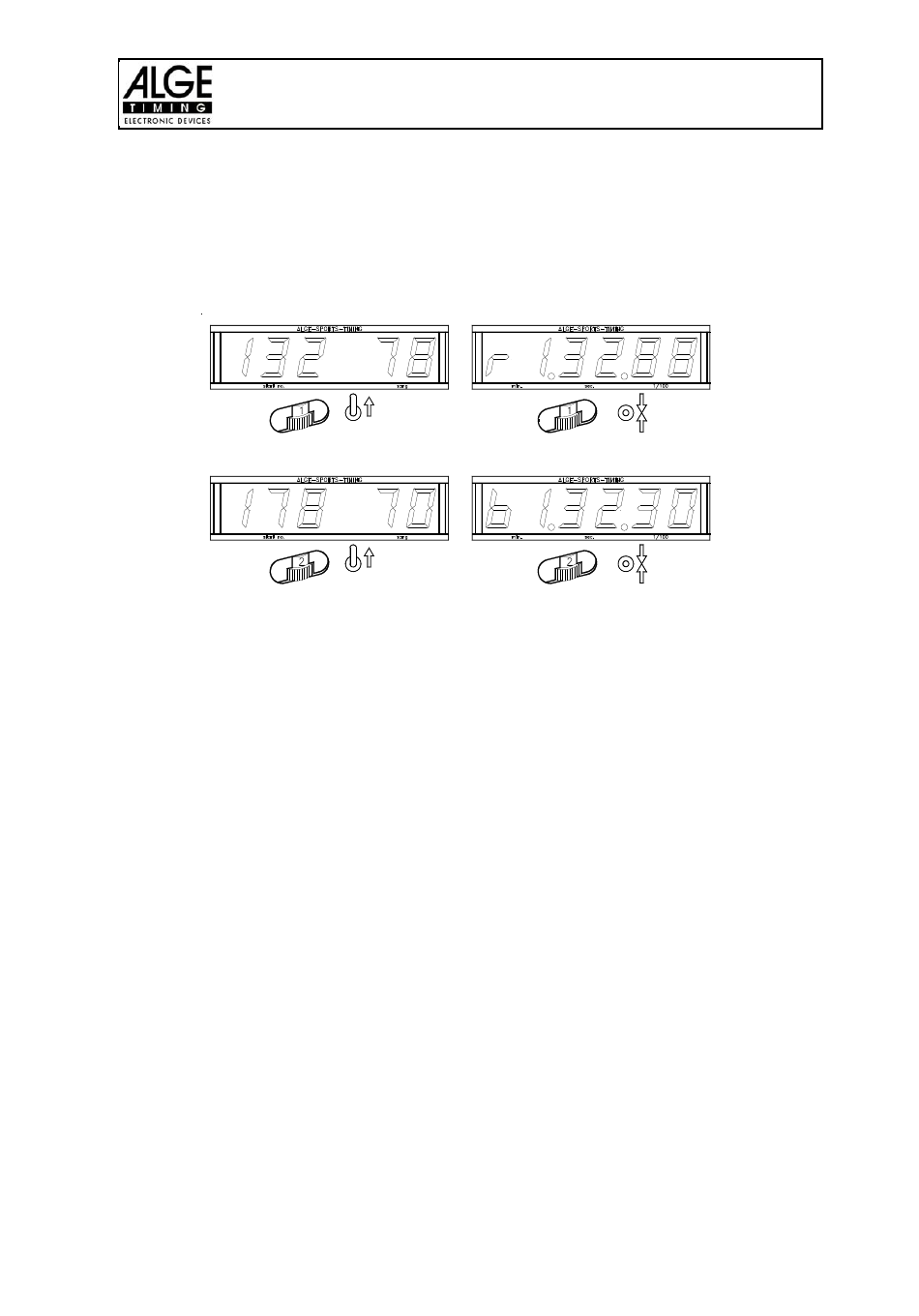

Display Board GAZ4:
For each course you need separate display boards. You can show the both net times on display
boards as well as start number and rank. You must set code switch of the display boards for the
red (right) course on 1, for the blue (left) on 2.
In the main menu (menu 19, see page 56) it is possible to activate display board channel 2 . If you
activate channel 2 it shows only the run times on the display board.
RS 232 Interface:
See page 96, chapter 8.2.
Version: E-19-03-07
Page 83
