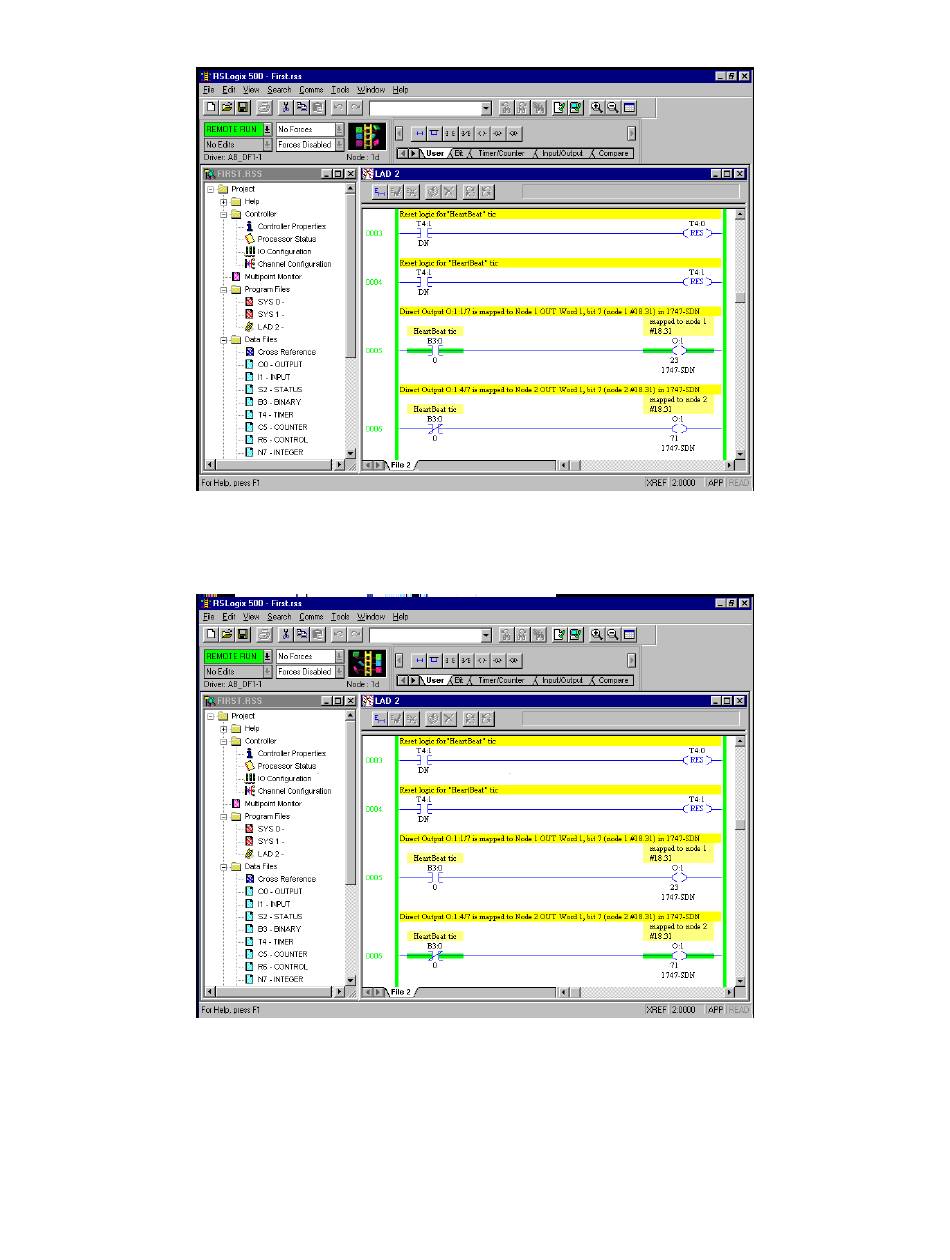

Scroll down until Rung 5 and Rung 6 are both visible. Rung 5 is setting and resetting the
bit that is mapped to node 1, bit 18.31 by way of node 1 "OUT WORD 1" (configured as
#90.11), bit 7.
Rung 6 is setting and resetting the bit that is mapped to node 2, bit 18.31 by way of node
2 "OUT WORD 1" (configured as #90.11), bit 7.
Bit #18.31 on Unidrive node 1 and Unidrive node 2 will toggle "on-off-on" in an
alternating fashion to confirm proper DeviceNet communication from the PLC address
space to the Unidrive's address space.
Page 73 of 77
