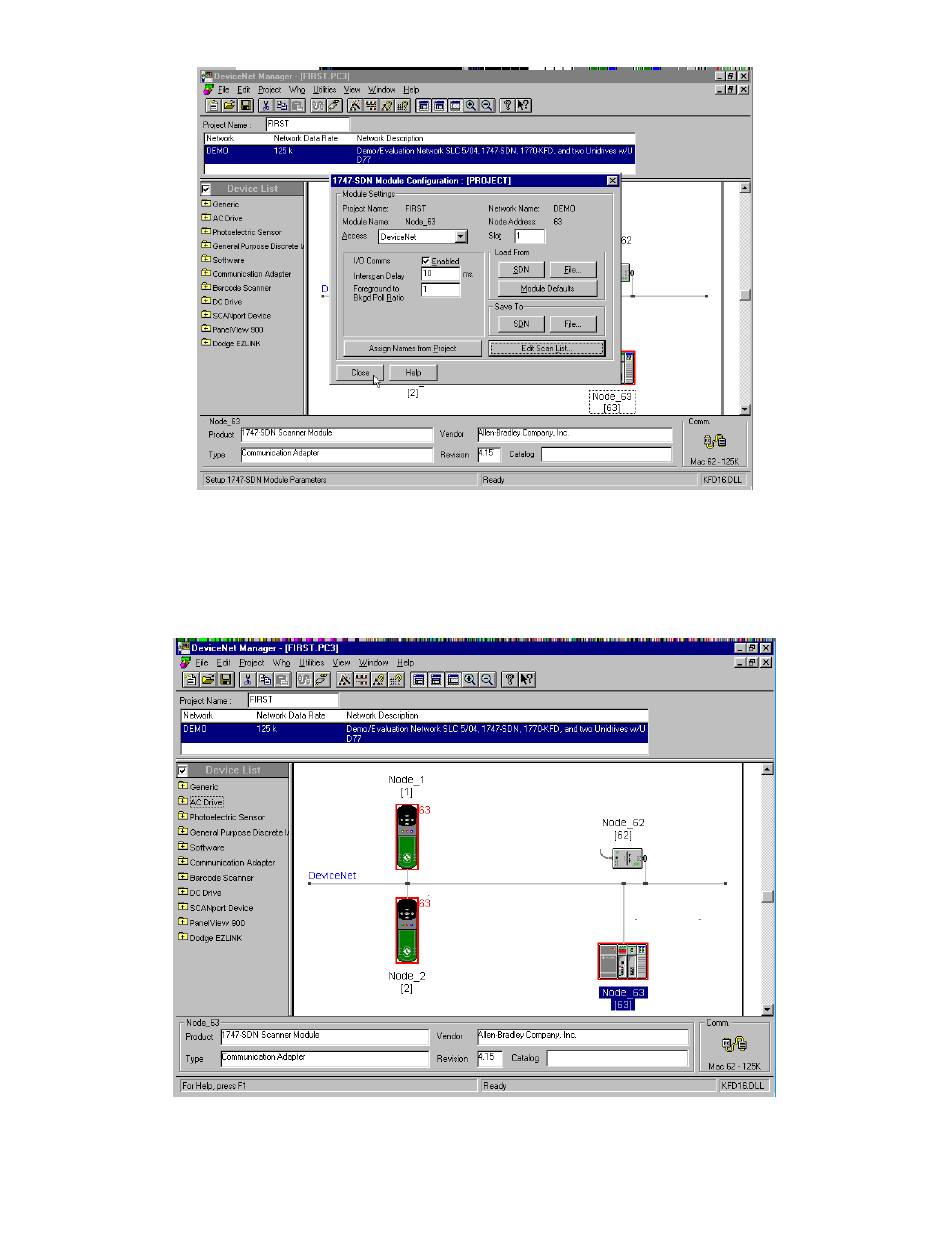

The "Save Configuration" is done. Link Mappings are now consistent and can be
reloaded from the scanner. Click on Close.
Under certain conditions, DeviceNet Manager will offer to save the Scanner Module
Configuration as a "*.SM4" file at this point. In this example, an opportunity to save
Module info as "NODE_63.SM4" would be provided. Click on "OK" to move on.
The DeviceNet Manager main frame window will appear. Network configuration is
complete. The next step is to save the project files.
Page 48 of 77
