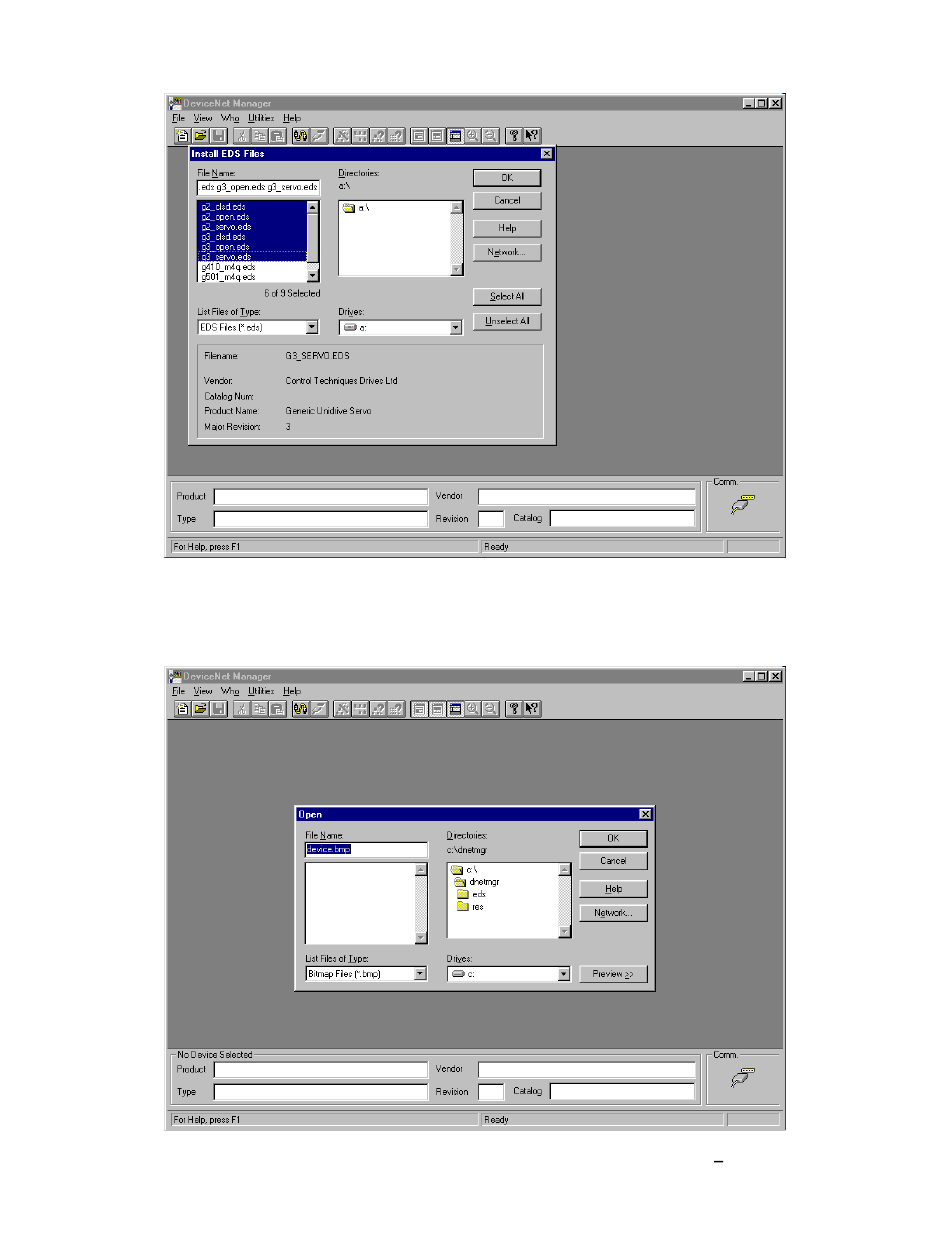

Select and install the generic Unidrive "EDS" and bitmap files first. Click on the g2*.eds

and g3*.eds files. The screen should now look like the one above. Click OK. After the

file copy, a confirmation box will appear, click OK.

A "locate file" style dialog box appears with a "*.bmp" filter. From the "Drives" list box,

select "a".

Page 20 of 77
