Step 1. Assemble Modules and SLC Rack into a Complete PLC

Power Supply
Module

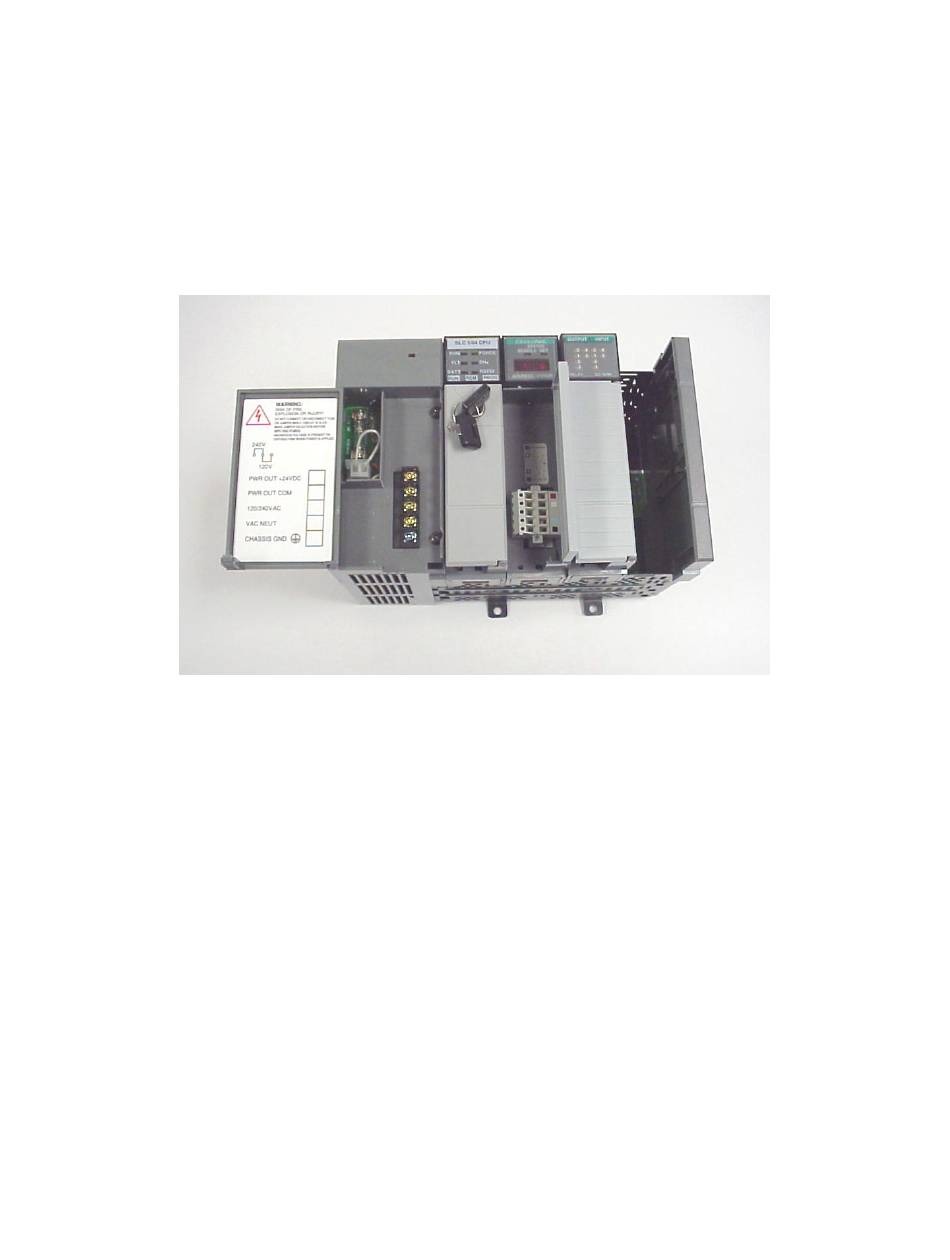

Complete SLC 500 PLC 4 slot Modular Rack, Power Supply, 5/04 Processor, Scanner and
Combination I/O. Note that discrete I/O module is not yet plugged in, and is not used in this
guide.
Refer to the following Allen Bradley installation instructions for additional and more detailed
information (these Allen Bradley publications are included with the respective module).
•
SLC 500 Modular Chassis
•
SLC 500 Power Supplies
•
SLC 5/03, 5/04, and 5/05 Modular Processors
•
DeviceNet Scanner Module
•
DeviceNet RS-232 Interface Module
•
Discrete I/O Modules
1. Be sure the incoming AC supply is turned off.
2. Mount and properly ground your SLC chassis. Use a dedicated ground strap.
3. Align and slide the SLC power supply until flush with the chassis, then fasten the supply to
the chassis with the screws to the left side of the supply. Set the input voltage jumper to
match the input voltage, then connect the chassis ground and incoming AC power. Finally
remove the protective label.
4. Insure the back-up battery is properly connected to the processor, then insert the SLC 5/0x
processor into the leftmost slot (slot 0) of the SLC Rack.
