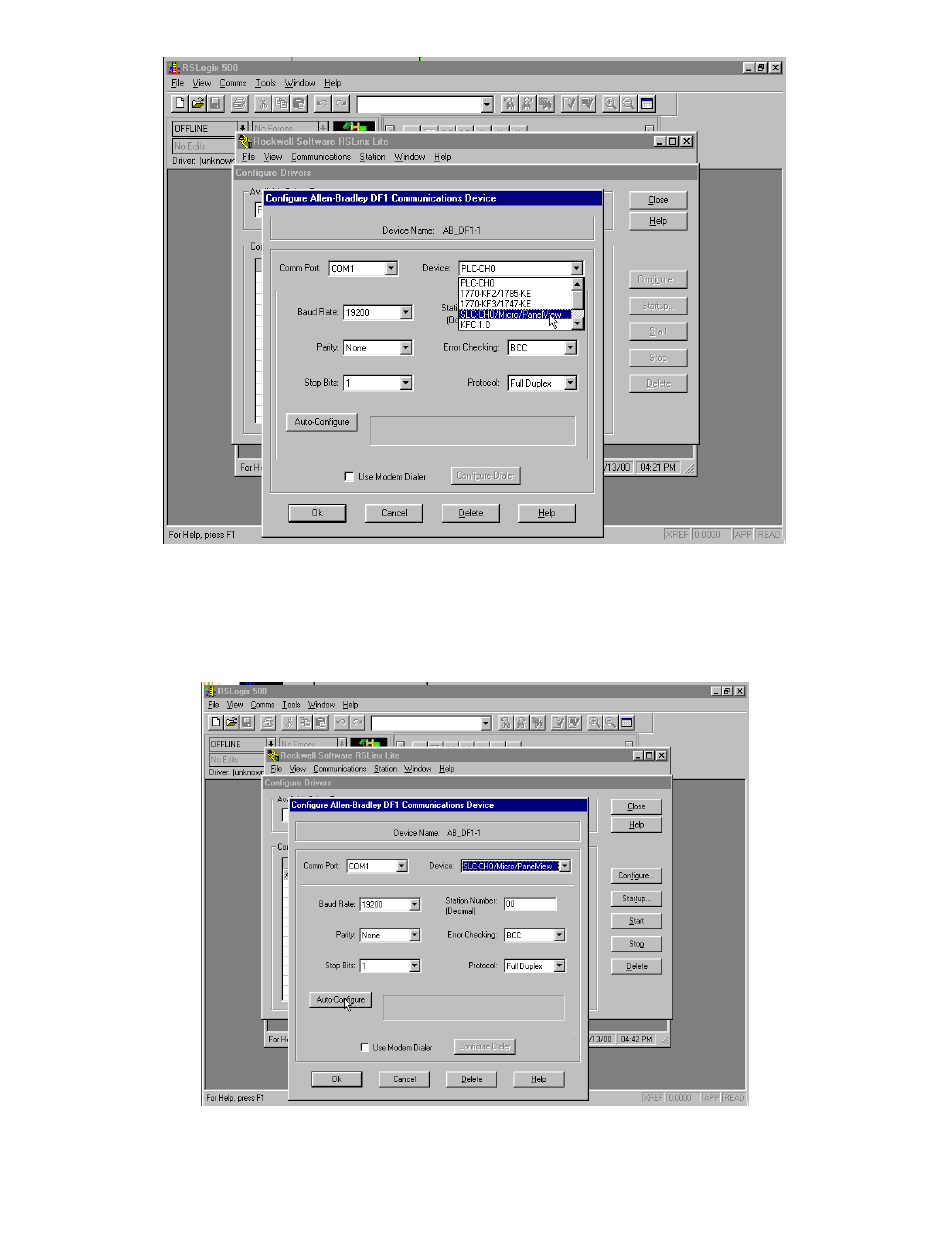

In the "Device" list box, select "SLC-CH0/Micro/PanelView".
Be sure that the SLC 500 processor is powered up, Processor key switch is in the
"PROG" position, and that the interface cable is connected at one end to the PC
COMM1 port and the other end to the 9-pin D-Shell RS-232 port on the SLC 5.04
processor.
Click on Auto-Configure to set up a communication link.
