DeviceNet Manager Installation

In this guide, COMM1 will be used for both configuring the DeviceNet Scanner and
network with DeviceNet Manager, then later to program the SLC 500 with RSLogix500.
This will allow either a laptop or a desktop PC use. Only one of the programs can use
the port at a time, however. If a PC is available with 2 ports, It is recommended that
COMM1 be dedicated for use by DeviceNet Manager (and the 1770-KFD interface) and
COMM2 be dedicated for use by the "DF1 protocol" and RSLogix500.
This guide shows DeviceNet Manager installation and *.EDS file downloads from a 3 ½
inch floppy, drive "A". If installing from CD-ROM media, make changes to drive
designations as necessary.
This guide recommends and illustrates that DeviceNet Manager installation to the
Configuration PC be immediately followed by the installation of all Control Techniques
"*.EDS" files that are included with "dvnet.zip".
DeviceNet Manager will be installed and configured to properly recognize the capabilities
of Control Techniques products.

Step 1. DeviceNet Manager Installation to Hard Drive

Insert DeviceNet Manager "Disk 1" into floppy drive "A:" and Run A:\Setup.exe.
Follow the on-screen prompts. Default installation paths are recommended.

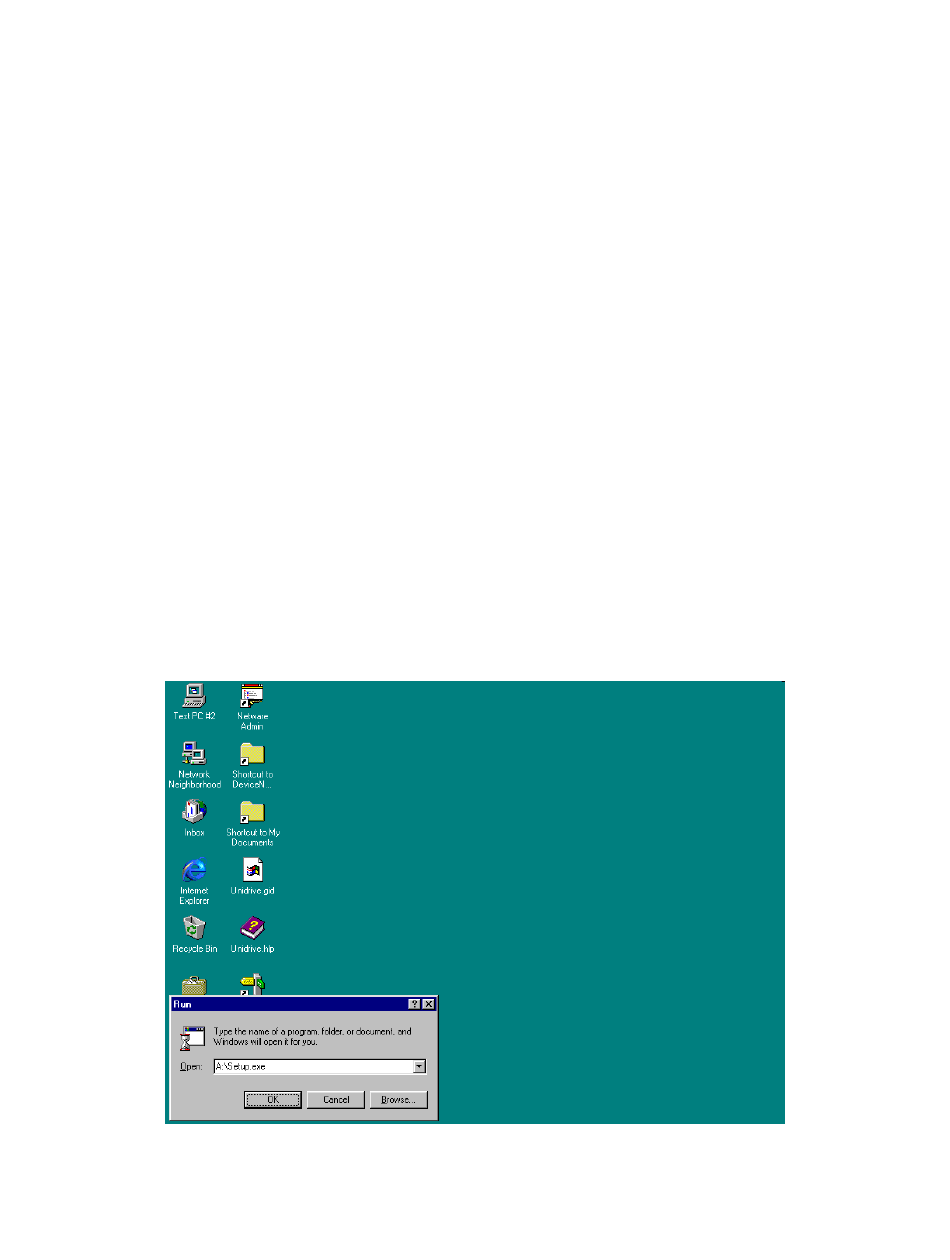

From the Start menu select Run and type "A:\Setup.exe", "click OK
