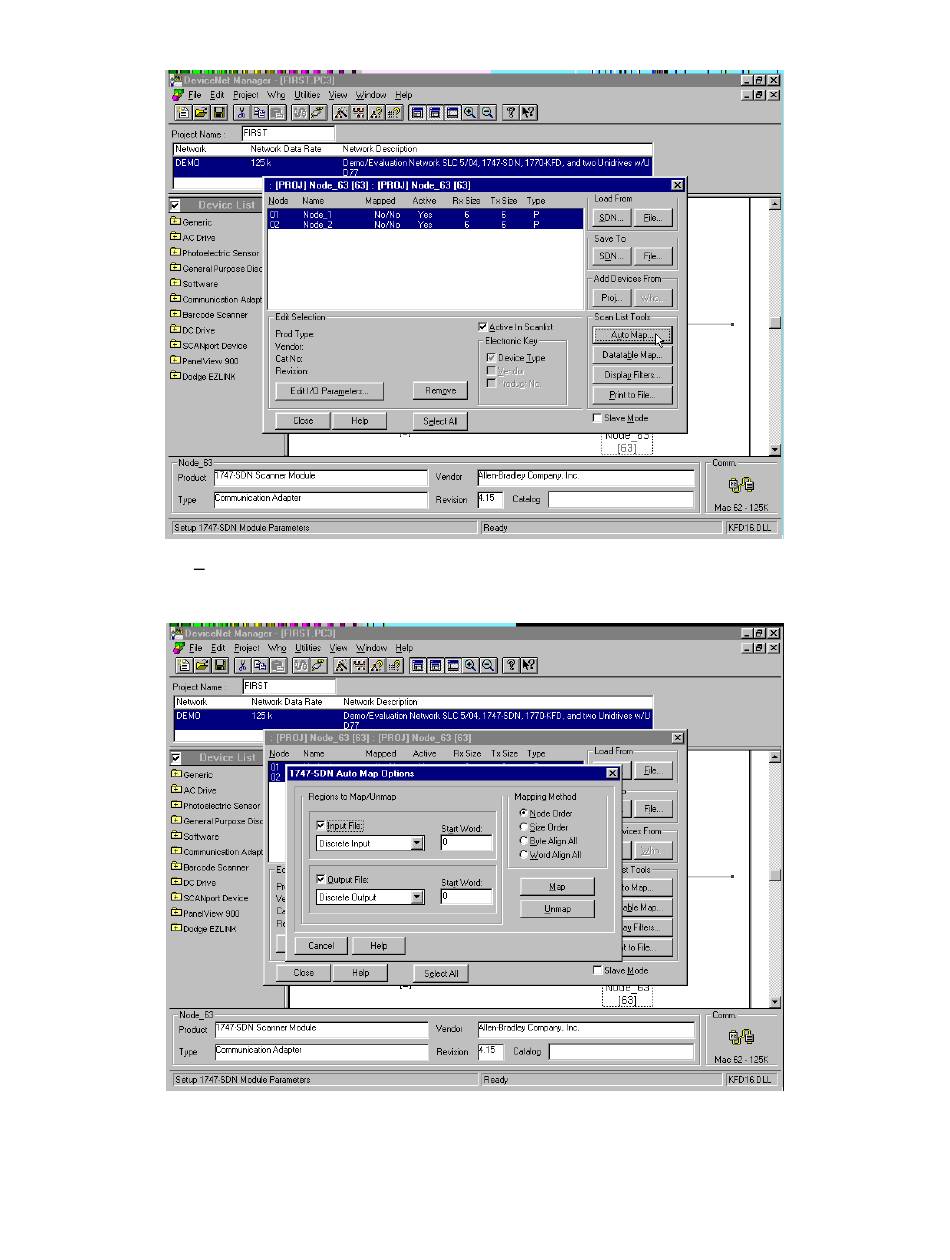

Click on "Auto Map..." within in the Scan List Tools box. Note: The default "Assembly
Objects" specified in the "*.EDS" file are now selected for configuration.
"1747-SDN Auto Map Options" dialog box opens. In this box, a cyclic link is mapped to
a Discrete Input / Output or to a M0 / M1 file.
Page 40 of 77
