Step 4. SLC Fault-at-Run Troubleshooting
A common problem at this point in a project is that the SLC rack configuration does not
match the project that was just downloaded into the processor. The following series
demonstrates how to navigate to status dialog windows to isolate what went wrong.

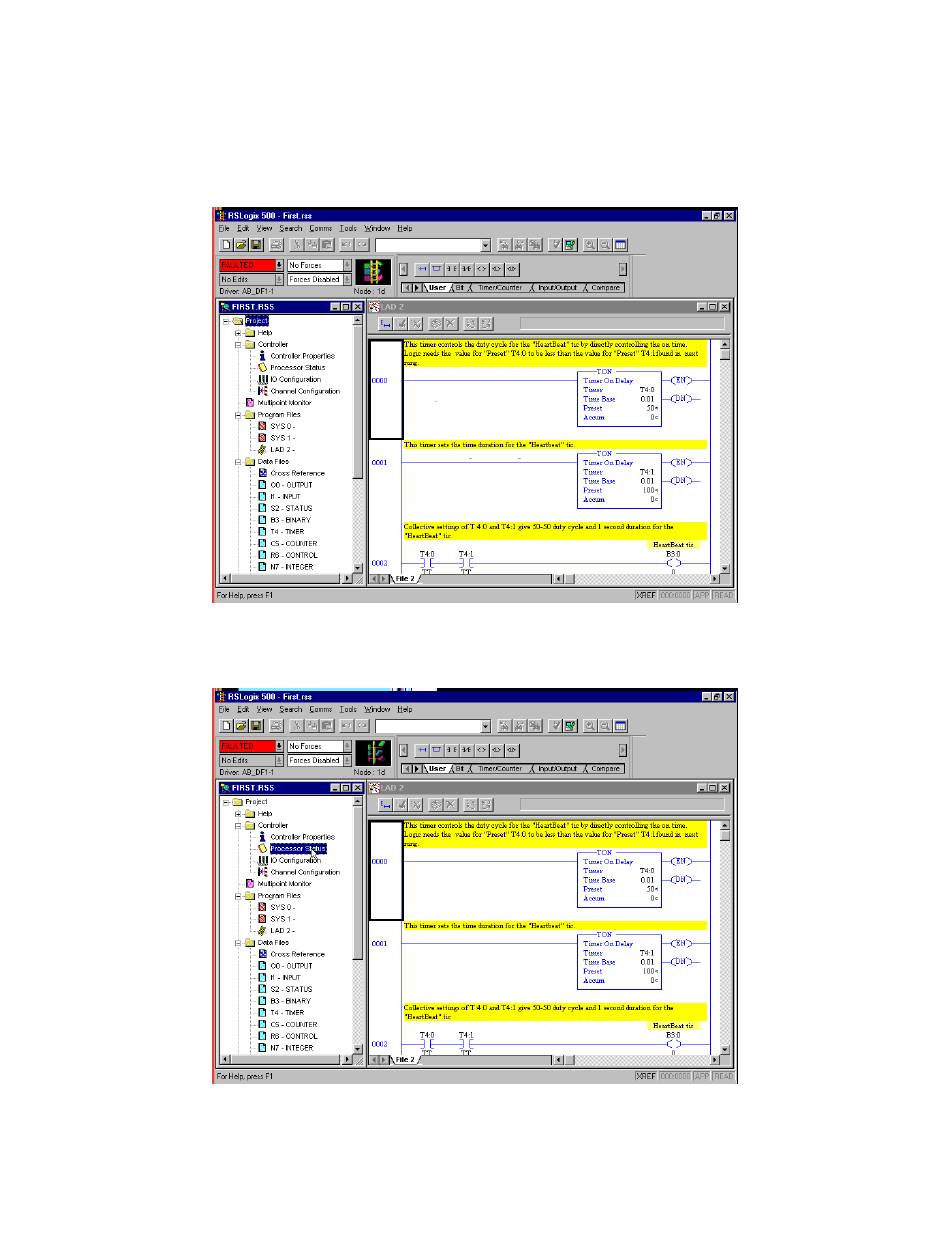

The SLC 500 Processor just faulted going from "PROGram" mode to "RUN" in "REMote"
mode. Note the red Faulted box.
Double-click on "Processor Status" on the "project tree".
