WELDING TECHNIQUE AND MAINTENANCE
Basic knowledge
CHAPTER 7
WELDING TECHNIQUE AND MAINTENANCE
142
WELDING TECHNIQUE AND MAINTENANCE

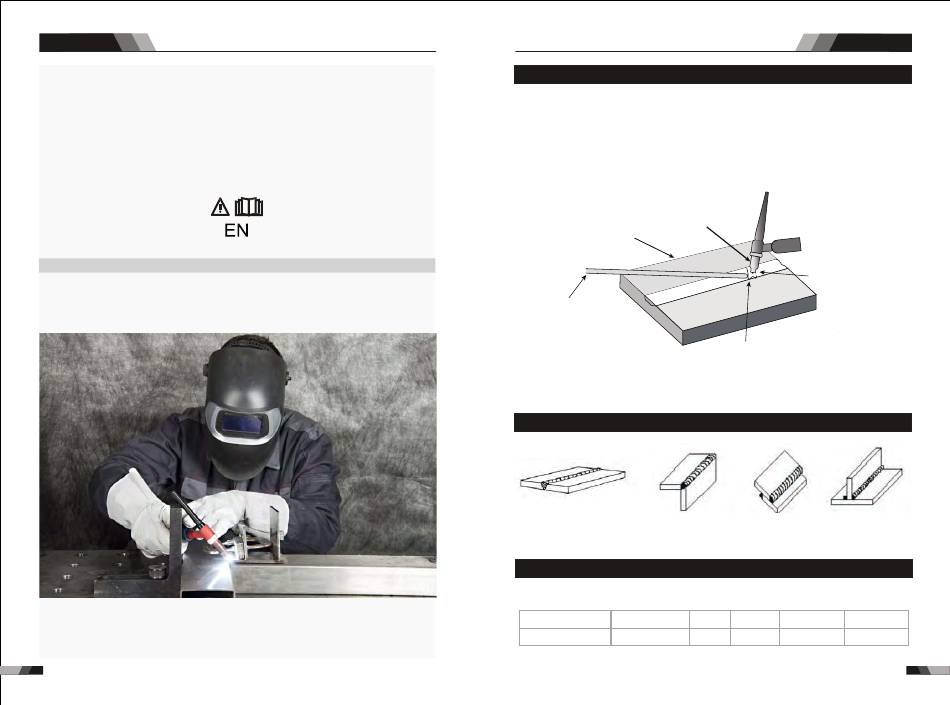

1.1 TIG Basic Welding Technique
Gas Tungsten Arc Welding (GTAW) or TIG (Tungsten Inert Gas) as it is commonly referred
to, is a welding process in which fusion is produced by an electric arc that is established
between a single tungsten (non- consumable) electrode and the work piece. Shielding is
obtained from a welding grade shielding gas or welding grade shielding gas mixture which
is generally Argon based. A filler metal may also be added manually in some circumstances
depending on the welding application.
Gas Cup
Either Ceramic,
High-lmpact or
Water Cooled
Work Piece
Metal
can Be Any Commercial
Metal
Welds Made With or
Without Addition
of Filler Metal
TIG Welding Application Shot
1.2 Joint froms in TIG
a butt joint b lap joint
1.3 The explanation of welding quality
The relation of welding area color & protect effect of stainless steel
Welding area color argent,golden
Protect effect best
TIG Welding
Tungsten Electrode
Non-Consumable
Inert Gas
Shields Electrode
and Weld Puddle
c coner joint d T joint
red-grey grey
blue
black
good worst
better
bad
