STICK SERIES EQUIPMENT
Summary
1.1 Brief Introduction
E161, E201, E221, E301, E401 welding machines adopts the latest pulse width
modulation (PWM) technology and insulated gate bipolar transistor (IGBT) power module,
which can change work frequency to medium frequency so as to replace the traditional
hulking work frequency transformer with the cabinet medium frequency transformer. Thus,
its characterized with portable, small size, light weight, low consumption and etc.
E161,E201,E221,E301,E401 STICK machines Characteristics:
◆MCU control system, responds immediately to any changes.
◆high voltage for arc igniting to ensure the success ratio of igniting arc.
◆Lift TIG operation, If the tungsten electrode touches the workpiece when welding,
the current will drop to short-circuit current to protect tungsten.
◆Pedal control the welding current.
◆IN DC TIG operation electrode touches the workpiece when welding, the current
will drop to short-circuit current to protect tungsten.
Intelligent protection: over-current, over-heat, when the mentioned problems
◆
occoured, the alarm lamp on the front panel will be on and the output current will
be cut off. It can self-protect and prolong the using life.
Anti-Stick function automatically appeared when the electrode stick to the work
◆
piece more than 2 seconds, thus the output current come down to around 20A in
order to easily seperate the electrode and electrode holder to protect the welder .
1.2 Working Principle

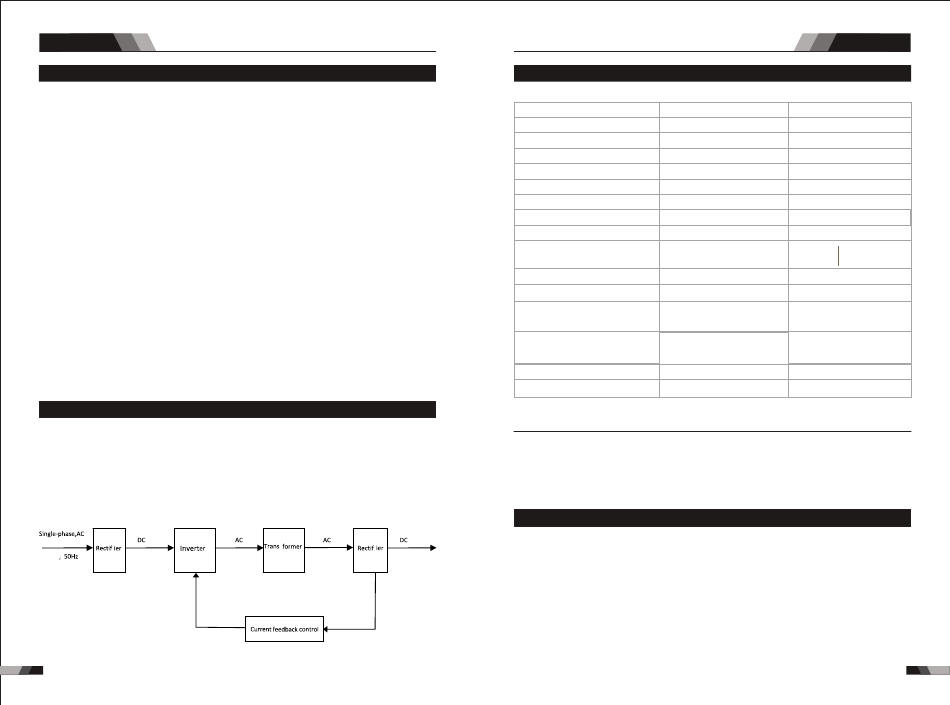

The working principle of E161/E201/E221/E301/E401 welding machines is shown as
the following figure. Single-phase 230V work frequency AC is rectified into DC(about
312 V), then is converted to medium frequency AC (about 20-40KHz) by inverter device
(IGBT module), after reducing voltage by medium transformer (the main transformer) and
rectifying by medium frequency rectifier (fast recovery diodes),then is outputted DC .The
c i r c u i t a d o p t s c u r r e n t f e e d b a c k c o n t r o l t e c h n o l o g y t o i n s u r e c u r r e n t o u t p u t s t a b l y.
Meanwhile, the welding current parameter can be adjusted continuously and steplessly
to meet the requirements of welding craft.
230V
34
STICK SERIES EQUIPMENT
1.3 Specifications E161/E201
Description
VECTOR DIGITAL E161 STICK
Weight
Power Source Dimensions H390mmxW180mmxD390mm
Cooling
Welder Type Inverter Power Source
European Standards
EN 60974-1 / IEC 60974-1
Number of Phases
Nominal Supply Voltage
Nominal Supply Frequency
Welding Current Range
( STICK Mode)
Effective Input Current
Maximum Input Current
Single Phase Generator
Requirement
STICK (MMA) 160A @ 40%, 26.4V
Welding Output, 40ºC, 10 min.
101A @100%, 24V
Open circuit voltage
Protection Class
NOTE
Due to variations that can occur in manufactured products, claimed performance, voltages,
ratings, all capacities, measurements, dimensions and weights quoted are approximate
only. Achievable capacities and ratings in use and operation will depend upon correct
installation, use, applications, maintenance and service.
1.4 Packaged Items
E161/E201
◆200 Amp electrode holder with 3M cable
◆200 Amp earth clamp with 3M cable
◆3M Power cable
◆Operating Manual
Summary
VECTOR DIGITAL E201 STICK
9.6kg 10 kg
H390mmxW180mmxD390mm
Fan Cooled Fan Cooled
Inverter Power Source
EN 60974-1 / IEC 60974-1
1 1
230V +/- 15% 230V +/- 15%
50/60Hz 50/60Hz
10 - 160A 20 - 200A
19.8A 22.8A
41.7A
31.4A
10.8KVA 14.4kVA
200A @30%, 28V
110A @ 100%, 24.4V
66V DC 66V DC
IP23 IP23
