MIG SERIES EQUIPMENT
Summary
1.4 Packaged Items
R221
◆3M MB-15 MIG Gun – 16M2
◆Contact tip•1.0mm Fitted•0.8mm Fitted
◆3M Gas Hose 8*13.5
◆200 A electrode holder with 3M cable.
◆200 A earth clamp with 3M cable
◆3M Power cable
◆Drive Rolls
◆Operating Manual

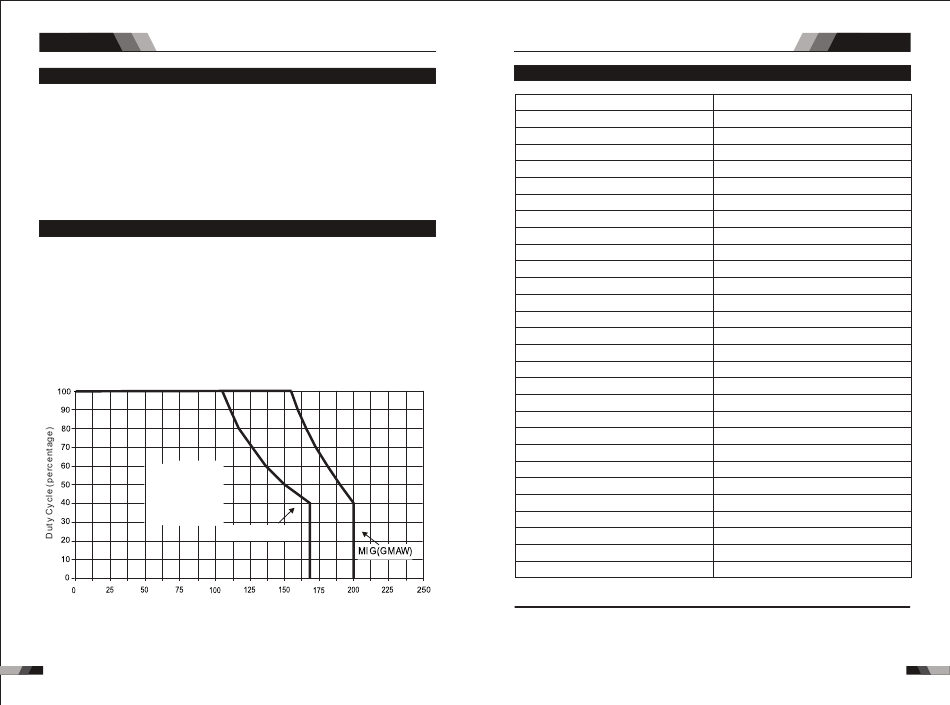

1.5 Duty Cycle
The rated duty cycle of a Welding Power Source is a statement of the time it may be operated
at its rated welding current output without exceeding the temperature limits of the insulation
of the component parts. To explain the 10 minute duty cycle period the following example
is used. Suppose a Welding Power Source is designed to operate at a 40% duty cycle,
200 amperes at 24 volts. This means that it has been designed and built to provide the
rated amperage (200A) for 4 minutes, i.e. arc welding time, out of every 10 minute period
(40% of 10 minutes is 4 minutes). During the other 6 minutes of the 10 minute period the
Welding Power Source must idle and be allowed to cool.
Safe
Operating
Region
Welding Current (amps)
116
Stick(MMA)
MIG SERIES EQUIPMENT
1.6 Specifications R231
Description
Dimensions
Weight
Cooling
Welder Type
European Standards
Number of Phases
Nominal Supply Voltage
Nominal Supply Frequency
Open Circuit Voltage
Output Voltage Range
Wirefeeder Speed Range
Wire roll weight
Wire roll diameter
Protection Class
Insulation Class
Thickness of material
Efficiency
Power Factor
Welding Current Range (MIG Mode)
Welding Current Range (STICK Mode)
Welding Current Range (TIG Mode)
Effective Input Current
Maximum Input Current
Single Phase Generator Requirement
Duty cycle, 40°C, 10 min(MIG)
Duty cycle, 40°C, 10 min(MMA)
Duty cycle, 40°C, 10 min(TIG)
Gas Follow
NOTE
Due to variations that can occur in manufactured products, claimed performance, voltages,
ratings, all capacities, measurements, dimensions and weights quoted are approximate
only. Achievable capacities and ratings in use and operation will depend upon correct installation,
use, applications, maintenance and service.
Summary
R231
490X225X380mm
16.2kg
Fan Cooled
Multi Process Inverter Power Source
EN 60974-1 / IEC60974-1
1
230VAC ± 15%
50/60Hz
66 V
10-25 V
2.5-18
5kg
0.6/0.8/1.0
IP23
F
Up to 0.8mm
80%
0.73
25-200 A
30-170 A
10-200A
22.6A
35.7 A
12.3KVA
200A@ 40%24V 126A@ 100%20.3V
170A@ 40%26.8V 107A@ 100%24.2V
200A@ 40%18V 126A@ 100%15V
3s
