Vector Welding C-Series Operating Instructions Manual page 34

CUTTING SERIES EQUIPMENT
Operation
WARNING
1. Digital Display
The digital meter is used to display the pre-set (preview) amperage for cutting and the
actual cutting current.
2. Power Indicator
The green power indicator will be illuminated when the welder is turned ON and indicates
the presence of power.
3. Thermal Overload Indicator Light
This welding power source is protected by a self resetting thermostat. The indicator will
illuminate if the duty cycle of the power source has been exceeded. Should the thermal
overload indicator illuminate the output of the power source will be disabled. Once the
power source cools down this light will go OFF and the over temperature condition will
automatically reset. Note that the mains power switch should remain in the on position
such that the fan continues to operate thus allowing the unit to cool sufficiently. Do not
switch the unit off should a thermal overload condition be present.
4. Air Pressure/ Cutting Torch Fauty Indicator
Cutting torch improper installation and air pressure low alarm.
5. Work Indicator
Turn on the switch of the cuttign gun,generate the voltage, the lamp on.
6. Grid Cut Indicator
Press and release button from 8 to change the selected cutting functions mode, light on ,
the function is selected.
7. Normal Cut Indicator
Press and release button from8 to change the selected cutting functions mode, light on ,
the function is selected.
8. Cut function Select Button
Press and release this button to change the selected cutting functions mode.
9. Negative Control
The negative control is used to minus current.
10. Positive Control
The positive control is used to plus current.
11. Positive Welding Output Terminal
The positive cutting terminal is used to connect the cutting output of the power source
to the appropriate welding accessory such as earth clamp. It is essential, however, that
the male plug is inserted and turned securely to achieve a sound electrical connection.
12. Plasma Torch Connector
Plasma torch insert in to connect with the machine. It's necessary to be sure that the
plug is correctly and tightly connected to maintain the electricity and gas supply.
58
DO NOT TOUCH the electrode wire while it is
being fed through the system. The electrode
wire will be at welding voltage potential.
CUTTING SERIES EQUIPMENT

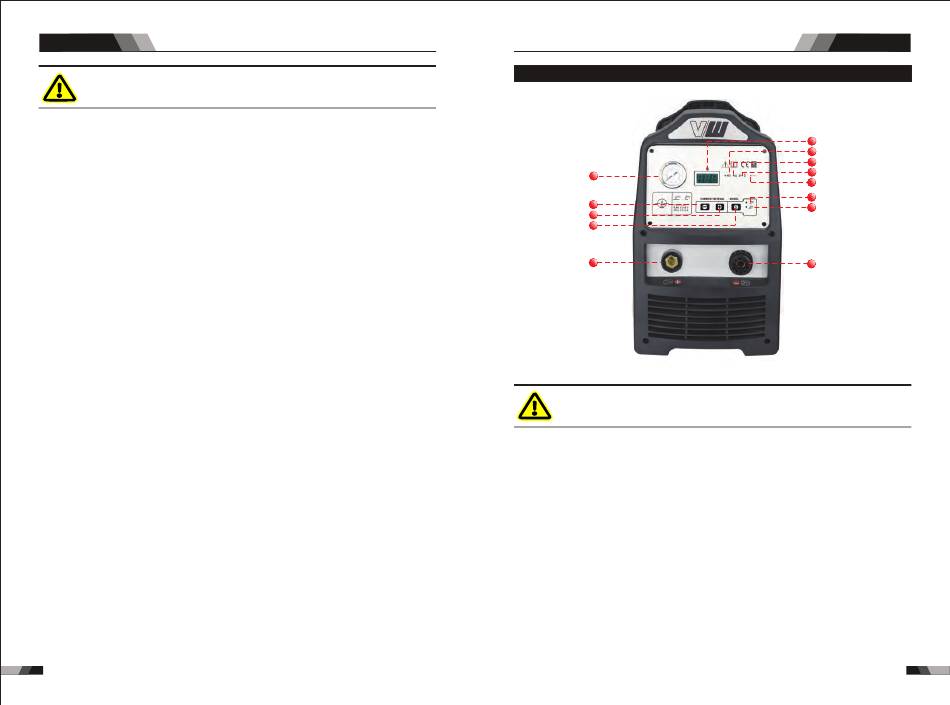

2.3 Layout For The Panel C101
1
11
10
9
12
WARNING
1.Barometer
The barometer shows the present air pressure.
2. Digital Display
The digital meter is used to display the pre-set (preview) amperage for cutting and the
actual cutting current.
3. Power Indicator
The green power indicator will be illuminated when the welder is turned ON and in
dicates the presence of power.
4. Thermal Overload Indicator Light
This welding power source is protected by a self resetting thermostat. The indicator will
illuminate if the duty cycle of the power source has been exceeded. Should the thermal
overload indicator illuminate the output of the power source will be disabled. Once the
power source cools down this light will go OFF and the over temperature condition will
automatically reset. Note that the mains power switch should remain in the on position
such that the fan continues to operate thus allowing the unit to cool sufficiently. Do not
switch the unit off should a thermal overload condition be present.
Operation
2
3
4
5
6
7
8
13
DO NOT TOUCH the electrode wire while it is
being fed through the system. The electrode
wire will be at welding voltage potential.
