AC/DC SERIES EQUIPMENT
Operation
11. AC Frequency
Setting ranges 50HZ-200HZ
This parameter operates in AC TIG mode only and is used to set the frequency for the
AC weld current.

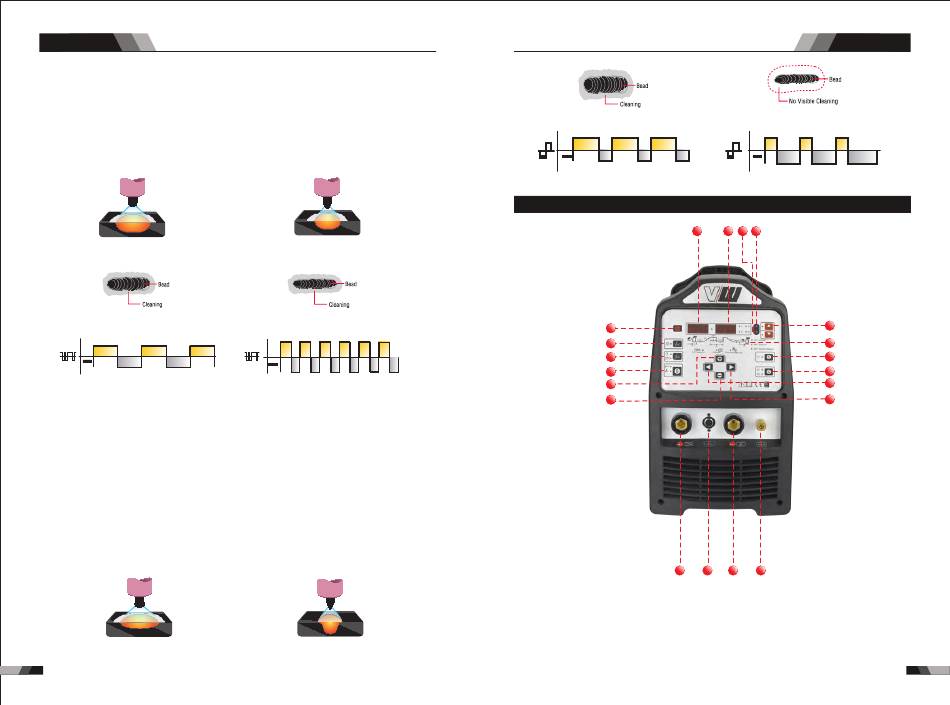

AC Frequency control
Controls the width of the arc cone. Increasing the AC frequency provides a more focused
arc with increased directional control.
N o t e : D e c r e a s i n g t h e A C F r e q u e n c y s o f t e n s t h e a r c a n d b r o a d e n s t h e w e l d p u d d l e
f o r a w i d e r w e l d b e a d .
Wider bead, good penetration
ideal for buildup work
Wider bead and cleaning acting
12.Wave Balance
Setting arranges 10%-50%
T h i s p a r a m e t e r o p e r a t e s i n A C T I G m o d e a n d i s u s e d t o s e t t h e p e n e t r a t i o n t o
cleaning action ratio for the AC weld current. Generally WAVE BALANCE is set to
5 0 % f o r A C S T I C K w e l d i n g . T h e WAV E B A L A N C E c o n t r o l c h a n g e s t h e r a t i o o f
penetration to cleaning action of the AC TIG welding arc. Maximum weld penetration
is achieved when the WAVE BALANCE control is set to 10%. Maximum cleaning of
h e a v i l y o x i d i s e d a l u m i n i u m o r m a g n e s i u m a l l o y s i s a c h i e v e d w h e n t h e WAV E
B A L A N C E c o n t r o l i s s e t t o 5 0 %
AC Balance Control
Controls arc cleaning action. Adjusting the % EN of the AC wave controls the width of the
etching zone surrounding the weld.
Note:
Set the AC Balance control for adequate arc cleaning action at the sides and in
front of the weld puddle. AC Balance should be fine tuned according to how heavy or
thick the oxides are.
Wider bead, good penetration
ideal for buildup work
18
Narrower bead for fillet welds and
automated applications
Narrower bead and cleaning acting
Narrower Bead, Good Penetration
Ideal For Buildup Work
AC/DC SERIES EQUIPMENT
Wider bead and cleaning action
2.3 Layout For The Panel V241/V341
1
2
3
4
15
16
17
1. RESET Button
When software has problem please trigger RESET button.
2. Pulse Button
Press the PULSE button to toggle Pulse On and OFF.
Operation
Narrower bead, with no visible cleaning
5 6 8 7
9
10
11
12
13
14
18 19 20
