STICK SERIES EQUIPMENT
Operation

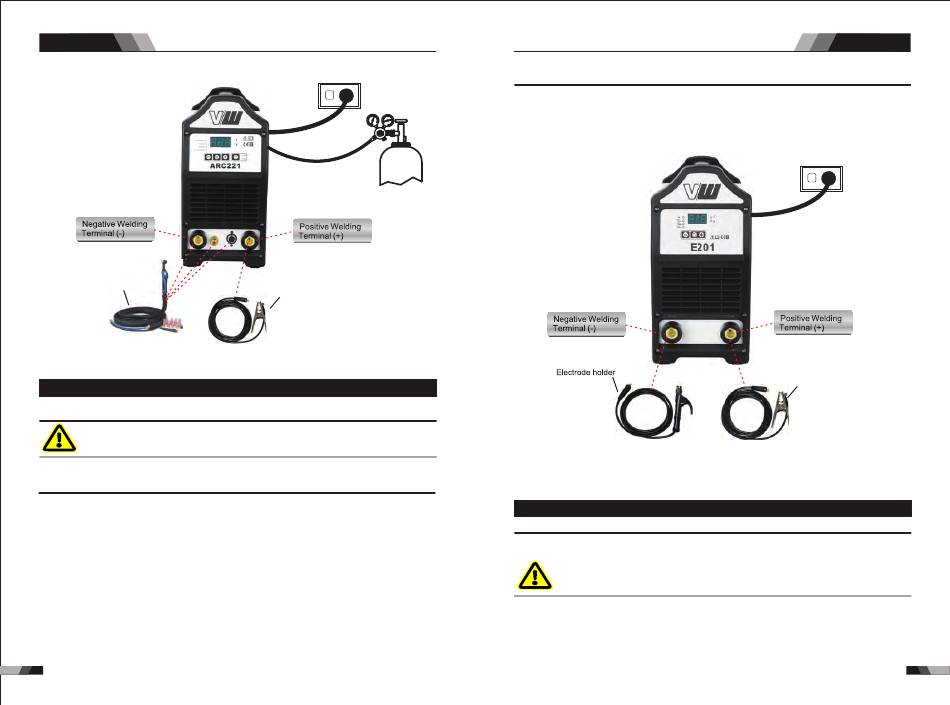

TIG torch
Figure:5-02
2.5 Setup For STICK (MMA) Welding
B e f o r e a n y w e l d i n g i s t o b e g i n , b e s u r e t o w e a r a l l
WARNING
a p p r o p r i a t e a n d r e c o m m e n d e d s a f e t y e q u i p m e n t .
NOTE
The following set up is known as DC Electrode Positive or reverse polarity. Please consult
with the STICK electrode manufacturer for specific polarity recommendations.
1.Switch the ON/OFF Switch (located on the rear panel) to OFF.
2.Attach the STICK and work earth clamp as shown in Refer to Figure 5-03
3.Set the welding process to STICK.
4.Set the welding current from the positive and negative control to the desired amperage.
Set the different requirements for the hot start ,start time and arc force too.
5.Install a STICK electrode in the electrode holder.
6.You are now ready to begin STICK Welding.
46
power supply
Ar./GAS(TIG/WIG)
Earth clamp
STICK SERIES EQUIPMENT
NOTE
To weld, gently strike the electrode on the work piece to generate a welding arc, and slowly
move along the work piece while holding a consistent arc length above base metal.
Figure:5-03
3.1 Troubleshooting
T h e r e a r e e x t r e m e l y d a n g e r o u s v o l t a g e a n d p o w e r
l e v e l s p r e s e n t i n s i d e t h i s p r o d u c t . D o n o t a t t e m p t t o
o p e n o r r e p a i r u n l e s s y o u a r e a q u a l i f i e d e l e c t r i c a l
t r a d e s p e r s o n a n d y o u h a v e h a r d t r a i n i n g i n p o w e r
WARNING
m e a s u r e m e n t s a n d t r o u b l e s h o o t i n g t e c h n i q u e s .
If major complex subassemblies are faulty, then the Welding Power Source must be
returned to an accredited reseller for repair. The basic level of troubleshooting is that
which can be performed without special equipment or knowledge. Refer also to section
6.01-6.02 for solving welding problems.
Operation
power supply
Earth clamp
47
