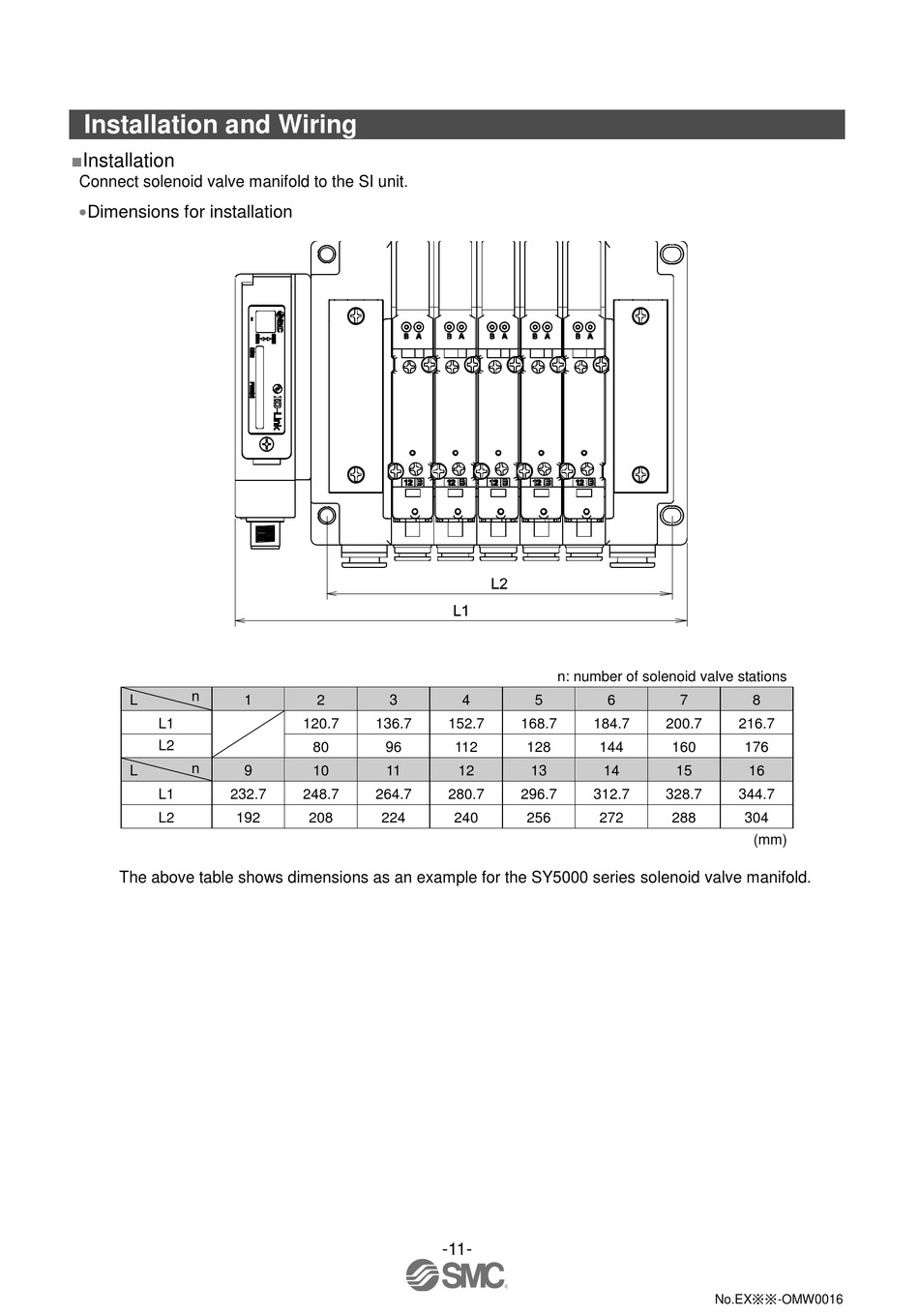

Installation and Wiring

■Installation

Connect solenoid valve manifold to the SI unit.
Dimensions for installation
n
L 1
L1
L2
n
L 9
L1 232.7
L2 192
The above table shows dimensions as an example for the SY5000 series solenoid valve manifold.
2 3 4
120.7 136.7 152.7
80 96 112
10 11 12
248.7 264.7 280.7
208 224 240
-11-
n: number of solenoid valve stations
5 6 7
168.7 184.7 200.7
128 144 160
13 14 15
296.7 312.7 328.7
256 272 288
8
216.7
176
16
344.7
304
(mm)
No.EX※※-OMW0016
