PM160(T)

3 Operating Elements

PM160
1
2
3
5
6
7
8 to 11
12
13
The position of the slideable optical filter (2) is detected in order to correct the
power read-out accordingly.
The push buttons (8) to (11) are soft keys, their function is shown in the display.
The functions as stated on the rear panel are the defaults when the PM160 is
switched off.
The SM05 adapter can accommodate a Thorlabs fiber adapter.
6

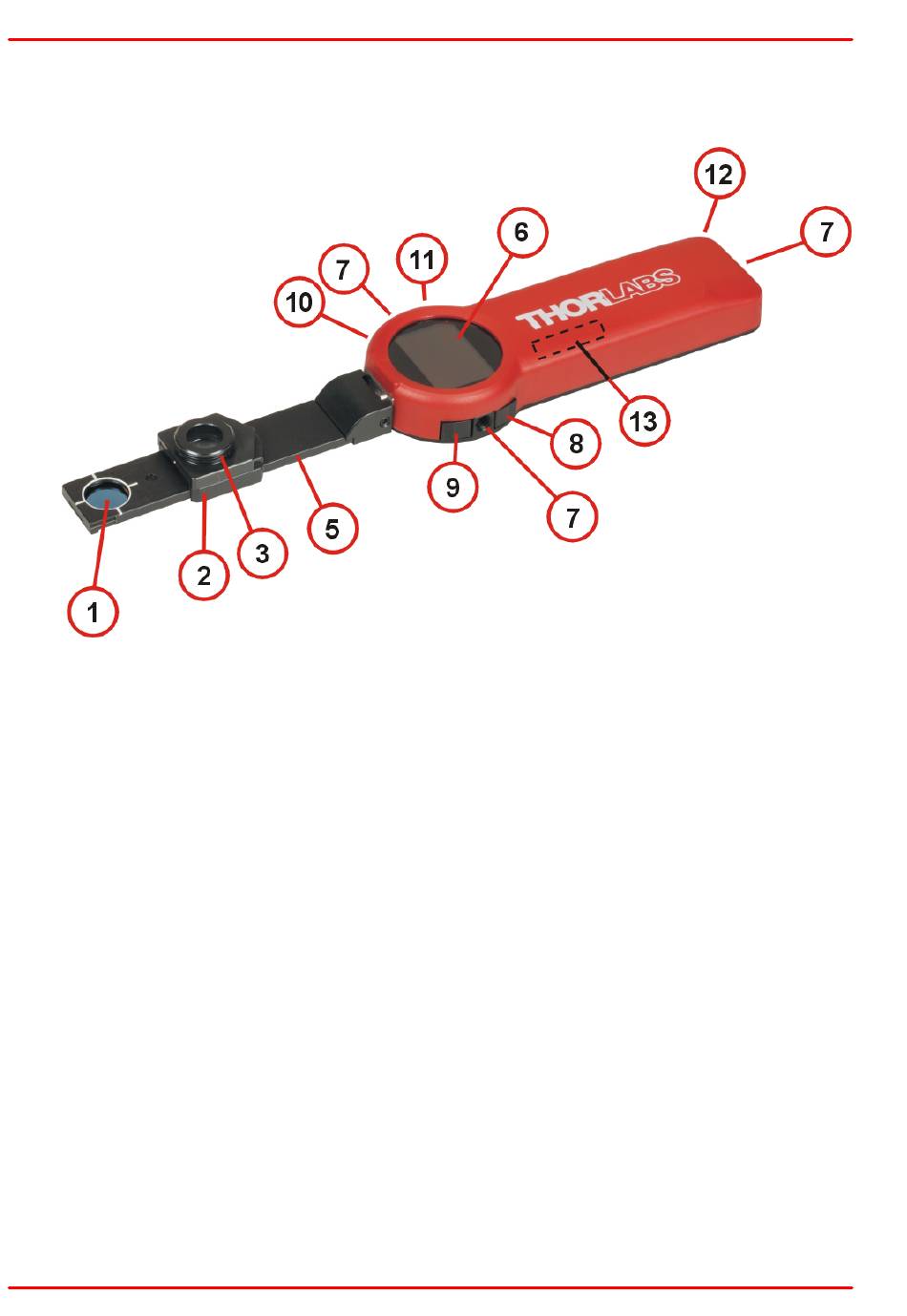

PM160 Front View
Sensor aperture
Slideable optical filter
SM05 adapter
270° rotatable arm with build-in sensor and optical filter
OLED display
Combined #8-32 / M4 threads for mounting (3 places)
Push buttons for local control
USB connector
Integrated bluetooth antenna
