PM160(T)

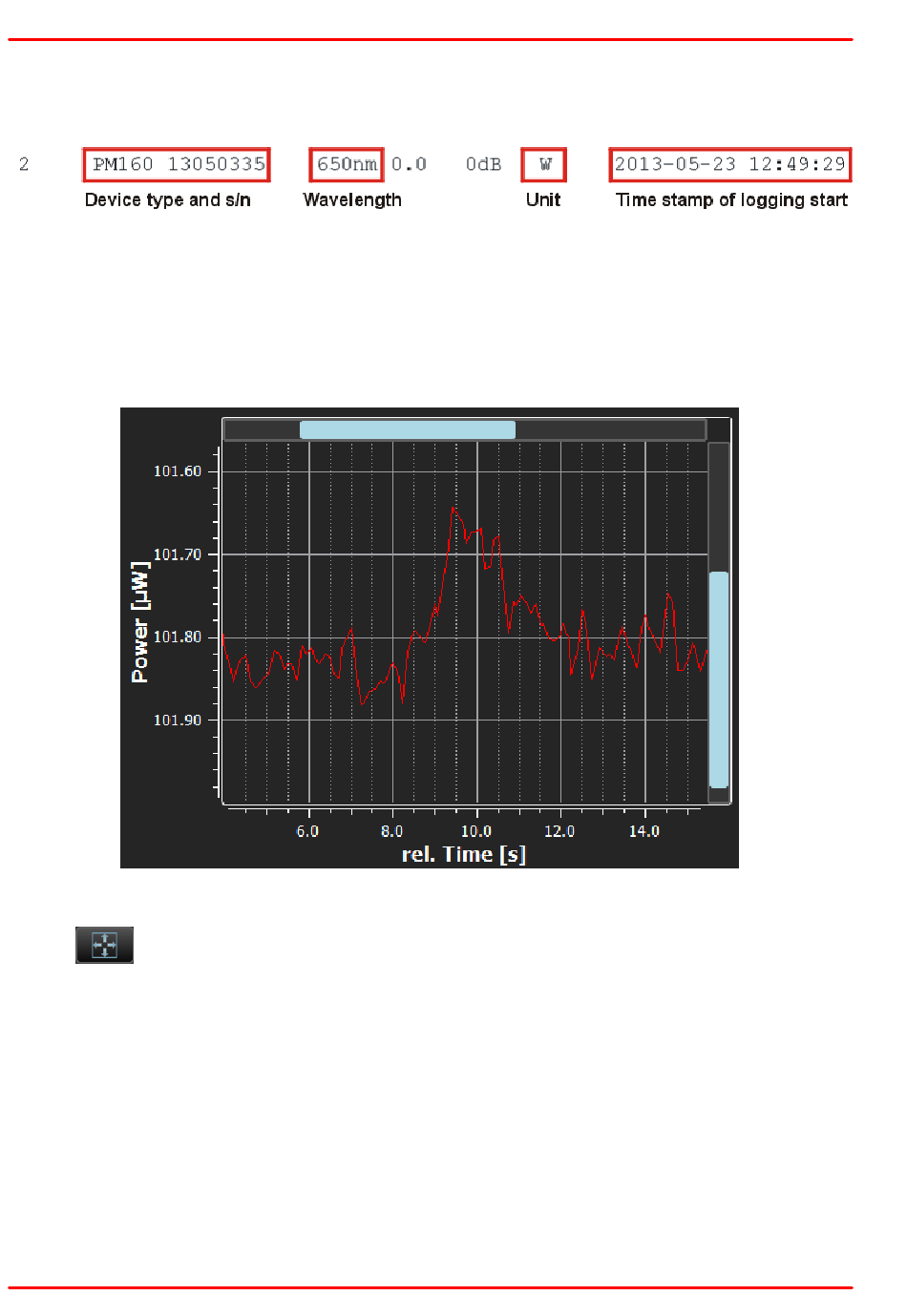

Structure of the logging file:
- separator: tab
- header line:
- 1st column: elapsed time after logging start in msec
- 2nd column: measured value
Zooming and panning
Locate the mouse pointer within the diagram area, press left and hold mouse but-
ton and draw a rectangle. Release mouse button, the marked area is zoomed in:
Using the light blue sliders, the zoomed in area can be panned. Return to the en-
tire diagram area by right clicking on the diagram area or pressing the Zoom
Home button.
