Summary of Contents for THORLABS PM130D

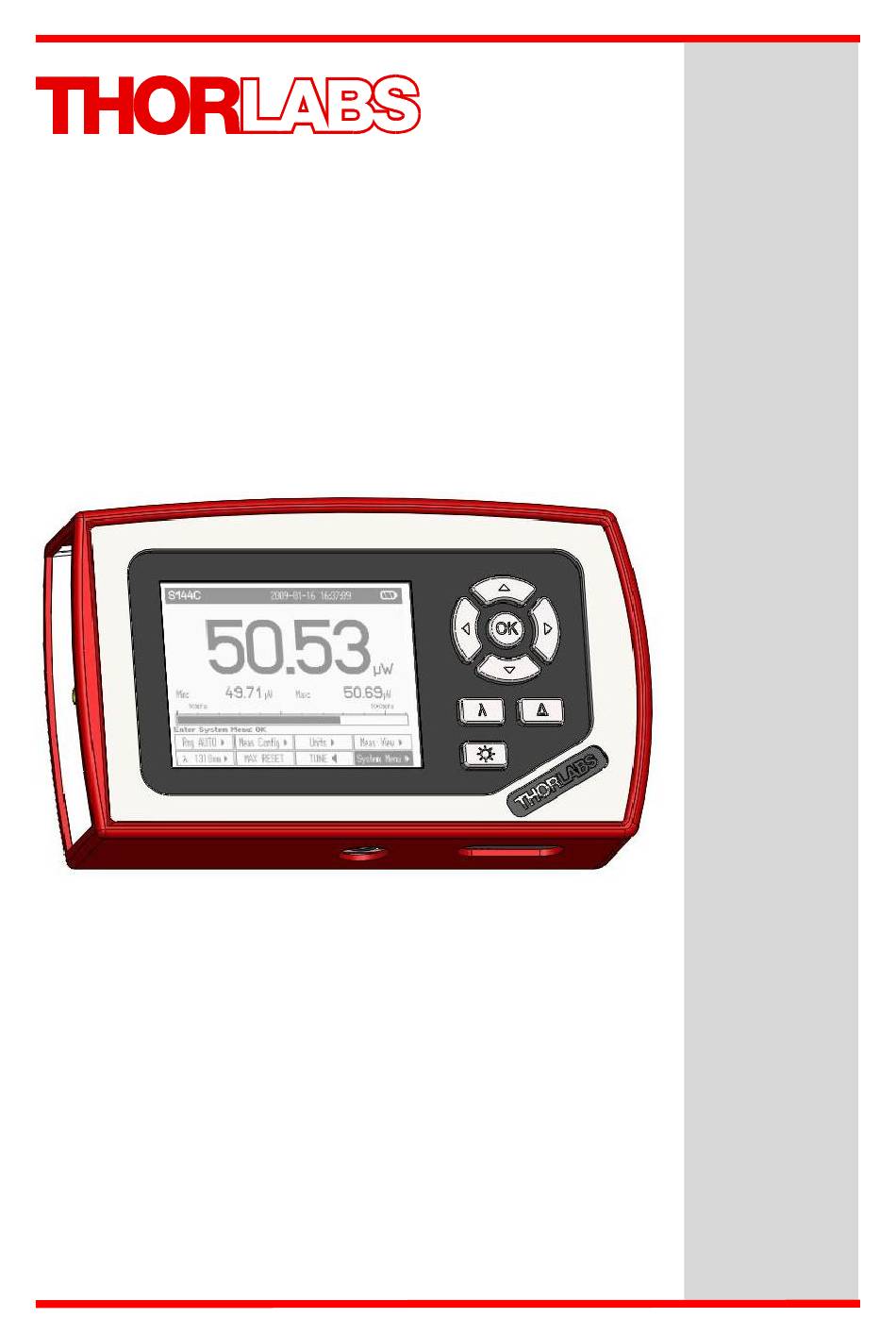

- Page 1 Optical Power Meter PM100D Quick Reference 2023...
- Page 2 2 PM100D Version: 13. Apr 2023 Date: © 2023 Thorlabs © 2023 Thorlabs...
- Page 3 Computer Interface ......................15 4 Maintenance and Repair ......................15 5 Warranty ..........................16 6 Copyright ..........................16 7 Certifications and Compliances ....................17 8 Thorlabs “End of Life” Policy (WEEE) ..................18 9 Thorlabs Worldwide Contacts ....................19 © 2023 Thorlabs...
- Page 4 Only with written consent from Thorlabs, changes to single components may be carried out or components not supplied by Thorlabs may be used. This precision device is only transportable if duly packed into the com- plete original packaging.
- Page 5 Turn the unit on by pressing the power button in the side panel. After switching on the unit, the graphics display will show the device status and then jump to the last measurement screen before power down. The PM100D is immediately ready to use after turning on. © 2023 Thorlabs...
- Page 6 Relative Measure: ∆ Backlight: Figure 1 Front Panel On/Off Switch USB Connector Sensor Connector (DB9 female) DC Input (Charger) Analog Output (SMA) Figure 2 Side Panel Mounting Thread 1/4“-20 SD Card Slot Figure 3 Bottom View © 2023 Thorlabs...
- Page 7 Rear View Header Line with Sensor Information, Date/Time and Battery state Status Line with Annunciators Main Display Configurable Configurable Sub Display Sub Display Bar Graph Tool Tip Text Menu Soft But- tons Figure 5 Numeric Display Setup © 2023 Thorlabs...
- Page 8 These can easily identified against older versions of Thorlabs power or energy sensors by their red connector housing. The console will not recognize sensors from the ‘A’ and ‘B’ series. Please contact Thorlabs for up- grading of old sensors with ‘C-Series’ connectors.
- Page 9 Enters a submenu to set date and time. It is possible to chose various date and time for- mats. - Console Info Shows the console related information. - Sensor Info Shows the related information of the currently connected power or energy sensor. © 2023 Thorlabs...
- Page 10 3.4.3.2 Wavelength Correction λ The menu offers 8 individually configurable sensor independent wavelength settings. To edit a wavelength keep the OK key pressed for 1 second. Set the desired wavelength with the keys. © 2023 Thorlabs...
- Page 11 Max/Min: Ratio between maximum and minimum. Area: Calculates power and energy density from the set beam diam- eter. Alt Unit: Shows the measurement in its alternate unit (e.g. W – dBm) Off: Hides the right sub-display © 2023 Thorlabs...
- Page 12 Trig: Sets the trigger level for laser pulse detection. x.xxmm Set the input beam diameter for power or energy density calculation ZERO Performs a zeroing for thermal sensors and dark current adjustment for photodiode sensors. © 2023 Thorlabs...
- Page 13 The bar graph and needle display will change to a measurement range from -10% to +10% of the set range 3.4.3 Display Options 3.4.3.1 Needle Display Max value indicator © 2023 Thorlabs...
- Page 14 The empty battery symbol starts blinking for one minute until the unit shuts off. When an external power supply is plugged the symbols above change se- quent until the battery is fully charged. © 2023 Thorlabs...
- Page 15 Protect the from adverse weather conditions, it’s not water resistant. The do not contain any serviceable by the user parts. Do not open the enclosures. If your needs repair, please contact Thorlabs for return instructions, see section Thorlabs Worldwide Contacts...
- Page 16 Thorlabs will carry the shipping costs back to the customer. If no warranty repair is applicable the customer will also carry the costs for back shipment. If the unit is sent back to Thorlabs from abroad the customer will carry all shipping costs, duties etc. which should arise for sending the goods back to Thorlabs.
- Page 17 Certifications and Compliances 17 7 Certifications and Compliances © 2023 Thorlabs...
- Page 18 Waste treatment on your own responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste re- covery. Do not dispose of the unit in a litter bin or at a public waste disposal site.
- Page 19 Thorlabs Worldwide Contacts 19 9 Thorlabs Worldwide Contacts For technical support or sales inquiries, please visit us at www.thorlabs.com/contact for our most up-to- date contact information. USA, Canada, and South America UK and Ireland Thorlabs, Inc. Thorlabs Ltd. sales@thorlabs.com sales.uk@thorlabs.com techsupport@thorlabs.com...
